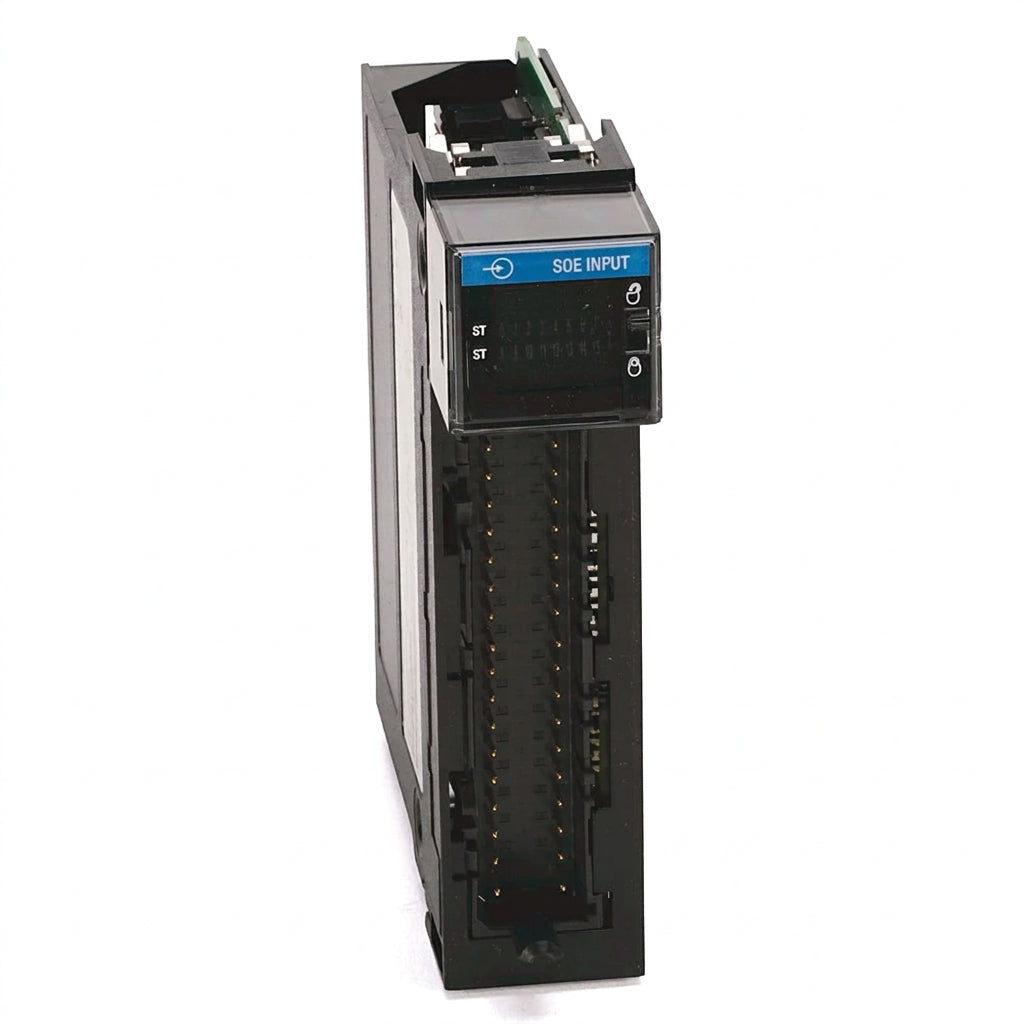

The Allen‑Bradley 1756-IB16ISOE is a 16-point individually isolated 10–30V DC sequence of events (SOE) digital input module for ControlLogix PAC platform. It supports per-point timestamping with CIP Sync or CST time synchronization, FIFO event capture for first-fault and sequence-of-events logging. It is the standard non-coated version; 1756-IB16ISOEK is its conformal coated variant for harsh environments. Technical data is compiled from the product datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor: every unit is visually inspected and functionally tested before shipment, in-stock ready for global shipping for machine maintenance, replacement, retrofit, and new project integration. Contact our team for compatibility verification and alternative in-stock models.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| Type Designation | |
| Product type | Individually Isolated SOE Digital Input Module |
| Order Code | 1756-IB16ISOE |
| Platform | ControlLogix PAC |
| Number of Points | 16 Individually Isolated Inputs |
| Electrical Ratings | |
| Input Voltage Range | 10–30V DC |
| Isolation Rating | 250V continuous between individual input channels |
| Time Synchronization | CIP Sync / CST timestamp support |
| Operation Mode | Per-point mode & FIFO buffer mode for event logging |
| Mechanical & Structure | |
| Mounting | ControlLogix Chassis |
| PCB Coating | Standard uncoated |
| Terminal | 36-pin removable terminal block |
| Environmental Conditions | |
| Operating temperature | 0 °C to +60 °C |
| Storage temperature | -40 °C to +85 °C |
| Relative humidity | 5%–95% non-condensing |
The 1756-IB16ISOE is ControlLogix series SOE individually isolated digital input module, compatible with ControlLogix chassis, 1756 backplane, ControlLogix PAC CPU and matching power supplies. Its conformal coated counterpart is 1756-IB16ISOEK for harsh dusty/moist environments. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: 1756-IB16ISOE is standard uncoated version. 1756-IB16ISOEK has conformal coated PCB for protection against moisture, dust and condensation; electrical and SOE functions are identical.
A: Sequence of Events (SOE) function captures precise timestamp for every input state change, used for first fault identification and event sequence analysis in critical systems.
A: Yes, it fits ControlLogix chassis and 1756 series PAC CPUs. Share your existing chassis and CPU model and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
