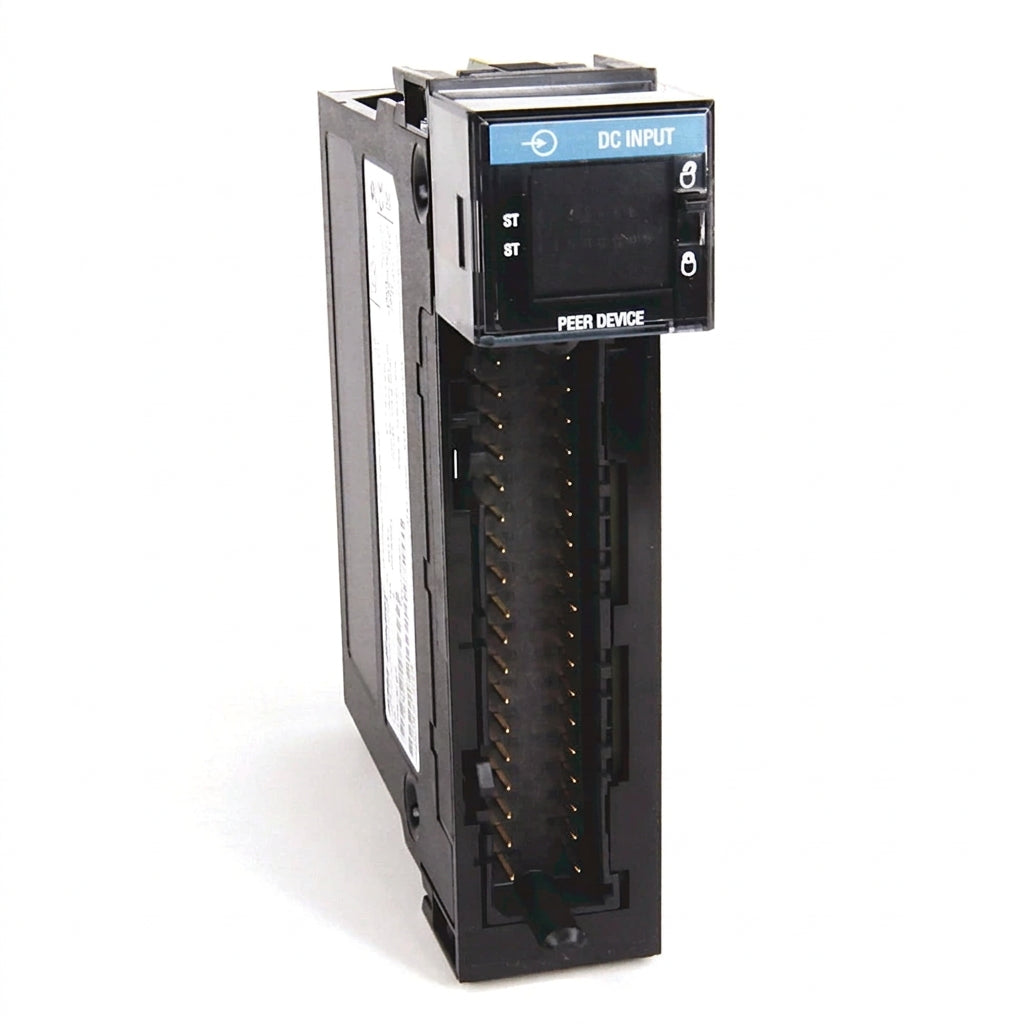

The Allen‑Bradley 1756-IB16IFK is a conformal coated 16-channel high-speed individually isolated digital input module for ControlLogix PAC platform, supporting 10–30V DC sink/source input. It features ultra-fast response, per-channel CIPSync timestamping and input pattern matching, ideal for high-speed event capture, pulse detection and first fault diagnosis in harsh industrial environments. It is the coated variant of 1756-IB16IF. Technical data is compiled from the product datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor: every unit is visually inspected and functionally tested before shipment, in-stock ready for global shipping for machine maintenance, replacement, retrofit, and new project integration. Contact our team for compatibility verification and alternative in-stock models.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| Type Designation | |
| Product type | Conformal Coated High Speed Individually Isolated Digital Input Module |
| Order Code | 1756-IB16IFK |
| Platform | ControlLogix PAC |
| Number of Points | 16 Individually Isolated High Speed Inputs |
| Electrical Ratings | |
| Input Voltage Range | 10–30V DC |
| Input Type | Sink / Source selectable |
| Min detectable pulse width | 10 µs |
| Input transition response | <25 µs |
| Time stamp accuracy | ±4 µs (CIPSync) |
| Mechanical & Structure | |
| Mounting | ControlLogix Chassis |
| PCB Coating | Conformal Coated |
| Terminal Block | 1756-TBCH / 1756-TBS6H (removable) |
| Environmental Conditions | |
| Operating temperature | 0 °C to +60 °C |
| Storage temperature | -40 °C to +85 °C |
| Relative humidity | 5%–95% non-condensing |
The 1756-IB16IFK is ControlLogix series conformal coated high-speed individually isolated digital input module, compatible with ControlLogix chassis, 1756 backplane, ControlLogix PAC CPU and matching power supplies. Its standard non-coated counterpart is 1756-IB16IF. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: 1756-IB16IFK is the conformal coated version. It adds PCB protective coating against moisture, dust and condensation; all electrical performance, timing and I/O functions are identical to 1756-IB16IF.
A: Compatible removable terminal blocks: 1756-TBCH and 1756-TBS6H.
A: Yes, it fits ControlLogix chassis and 1756 series PAC CPUs. Share your existing chassis and CPU model and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
