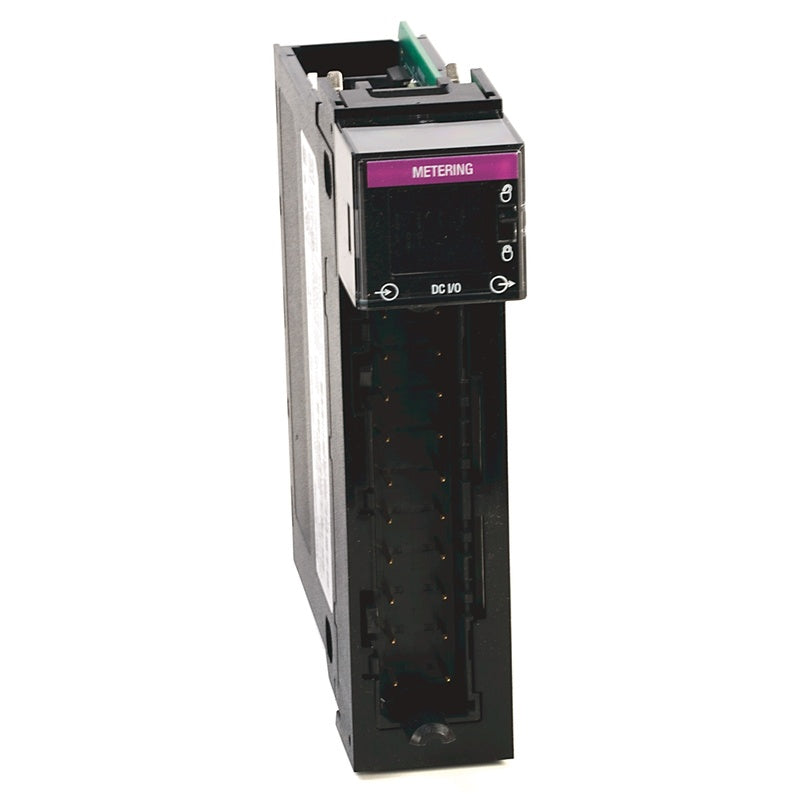

Allen-Bradley 1756-CFM | Industrial Automation Component

ControlLogix Config Flowmeter Module

2 Channel/2 Out Configurable Flowmeter (20Pin)

Specifications

• Conducted RF immunity: 10V rms with 1 kHz sine wave 80% AM from 150 kHz...80 MHz on shielded signal ports
• Count range, max: 2, 147, 483, 647
• Current draw: 300mA @ 5.1V, 16mA @ 24V
• Digital inputs configurable: true
• Digital outputs configurable: false
• EFT/B immunity: ¡À4kV @ 5kHz on unshielded output and power ports, ¡À4kV @ 5kHz on shielded input ports
• Emissions: IEC 61000-6-4
• Enclosure type: None (open-style)
• ESD immunity: 6 kV contact discharges, 8 kV air discharges
• Filtering (inputs F0 & F1): Firmware selectable: high-speed 100 kHz or low-pass filter for frequencies <70 Hz
• Flowmeter input impedance: 5 k? ¡À30% resistive
• Flowmeter input voltage: ¡À30V, selectable input thresholds of 50mV @ 1.3V and 4V: ¡À30V peak unterminated open circuit voltage, magnetic pickup, TTL compatible, input voltage >1.3V DC is Logic 1 and -0.7...1.3V DC is Logic 0, 12...24V DC powered preA output, 4V DC threshold
• Frequency: Resolution: 0.0005 Hz
• Gate input on-state current, min: 4 mA
• Gate input on-state current, nom: 15 mA
• Gate input voltage range: 5V ops: 4.5...5.5V DC @ 12/24V ops: 10...26.4V DC
• High resolution, max: 100 khz
• Input frequency, max: 100 kHz @ flowm inputs (overrange occurs at 100 kHz)
• Input sampling period: User selectable
• Inputs: Two flowm (F) inputs used for all modes, Two gate inputs used in Totalizer mode for prover/store count, 4 (2 per channel)
• Isolation voltage: 250V (continuous), reinforced insulation type, I/O-to-backplane, 250V (continuous), basic insulation type, I/O group-to-group
• Mechanical filter debouncing (Z0 & Z1 Inputs): Software selectable
• Module keying: Electronic, software configurable
• Nonoperating temperature: -40 ¡ãC
• North American temperature code: T4
• Off-state leakage current, max: <300 ¦ÌA @ 31.2V DC
• On-state voltage drop, max: 0.6 ? x current
• Operating temperature: 0 to 60 ¡ãC
• Output control: Any number of outputs is assignable to any of two flowm channels each output can have 2 ¡°turn-on¡± and ¡°turn-off¡± preset values
• Output current per point: 1 @ 10...31.2V DC @ 20mA @ 4.5...5.5V DC
• Output reverse polarity protection: Yes (if wired incorrectly, module outputs can be permanently disabled.)
• Outputs: 2 current sourcing
• Output short circuit protection: Electronic (no indication of fault. remove overload and toggle output on/off to restore.)
• Output switching time: <50 ¦Ìs turn on, <300 ¦Ìs turn off, Outputs triggered by Total, all other ¡°turn-on¡± and ¡°turn-off¡± times <1 ms
• Output type: IEC 1 A 24V DC
• Output voltage range, nom: 5V ops: 4.5...5.5V DC @ 3...20mA load per point, 12/24V ops: 10...31.2V DC @ 40mA...1 A load per point
• Output voltage source: Customer supplied
• Overload current: Electronic (<4 A)
• Power dissipation, max: 6 W @ 60 ¡ãC (140 ¡ãF)
• Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
• Redundancy: false
• Relative humidity: 5...95% noncondensing
• Reverse polarity protection: Outputs only
• RTB keying: User-defined mechanical
• Shock: Operating: 30 G, Non operating: 50 G
• Short-circuit protection, outputs available: false
• Slot width: 1
• Suitable for safety functions: false
• Surge current: 2 A @ 50 ms, repeatable every 2s
• Surge transient immunity: ¡À1 kV line-line (DM) and ¡À2 kV line-earth (CM) on unshielded output and power ports, ¡À2 kV line-earth (CM) on shielded input ports
• Surrounding air temperature, max: 60 ¡ãC
• Thermal dissipation: 20.4 btu/h
• Total backplane power: 1.7 W
• Totalizer fill and prover: true
• Type of electric connection: Screw connection
• Vibration: 2 G @ 10...500 Hz
• Voltage type of supply voltage: DC
• Wire category: 2 on signal ports, 1 on power ports
