ABB 2CCF019597R0001 S802PVSP10 Industrial Automation Component - Industrial Automation Part
ABB 2CCF019597R0001 S802PVSP10 Industrial Automation Component - Industrial Automation Part

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

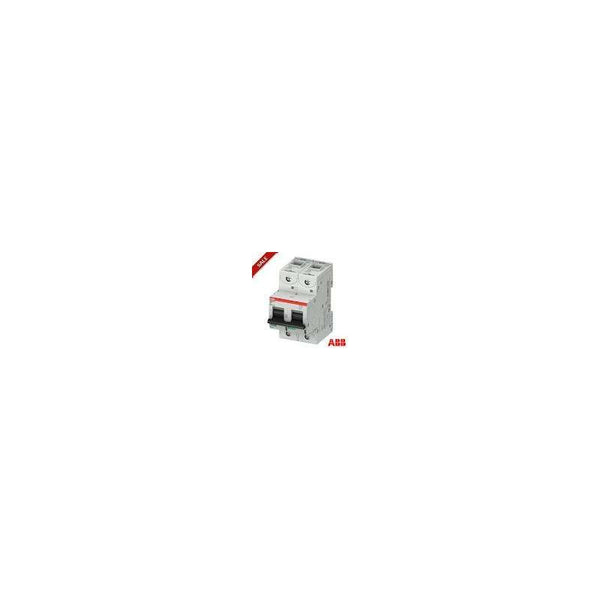

ABB S802PV-SP10 Miniature Circuit Breaker

SKU: S802PV-SP10
(0)
$183.43
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
ABB | S800 PV MCB

S802PV-SP10

S800 Series PV — 2-Pole PV MCB Curve S

Key Ratings at a Glance

Poles
2
Rated Current
10 A
Curve S
Breaking Cap.
36 kA
@ 500V DC
Voltage
1000V
DC

Technical Specifications

Parameter Value
Catalog Number S802PV-SP10
Product Series S800 Series PV
Number of Poles 2
Rated Current (In) 10 A
Tripping Characteristic Curve S (1.5-2x In)
Short-Circuit Breaking Capacity (Icn) 36 kA
Rated Voltage 500/1000 V DC
Rated Frequency DC
Mounting DIN rail (TH35)
Degree of Protection IP20
Operating Temperature -25 °C ... +55 °C
Standard IEC/EN 60947-2
Application Solar/PV DC protection

Applications & Features

  • Solar PV string protection
  • DC distribution boards
  • Photovoltaic systems up to 1000V DC
  • Battery storage systems
  • Industrial DC power distribution

Compliance & Approvals

CE | UL | CSA | IEC/EN 60947 | RoHS Compliant
— SHLY-PLC Industrial Automation Supplier

Frequently Asked Questions

Q: What is the warranty for ABB S802PV-SP10?

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Q: How fast can you ship S802PV-SP10?

A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).

Q: Is S802PV-SP10 compatible with ABB systems?

A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.

Model Specifications

converted_model S802PV-SP10
series S800PV-S
number_of_poles 2P
rated_current_In 10 A
tripping_characteristic SP (PV-specific)
rated_voltage_Ue up to 1500 V DC
rated_short_circuit_capacity 5 kA (DC)
product_id 2CCF019599R0001
standard IEC 60947-2 Annex P

Source: datasheet / product page
