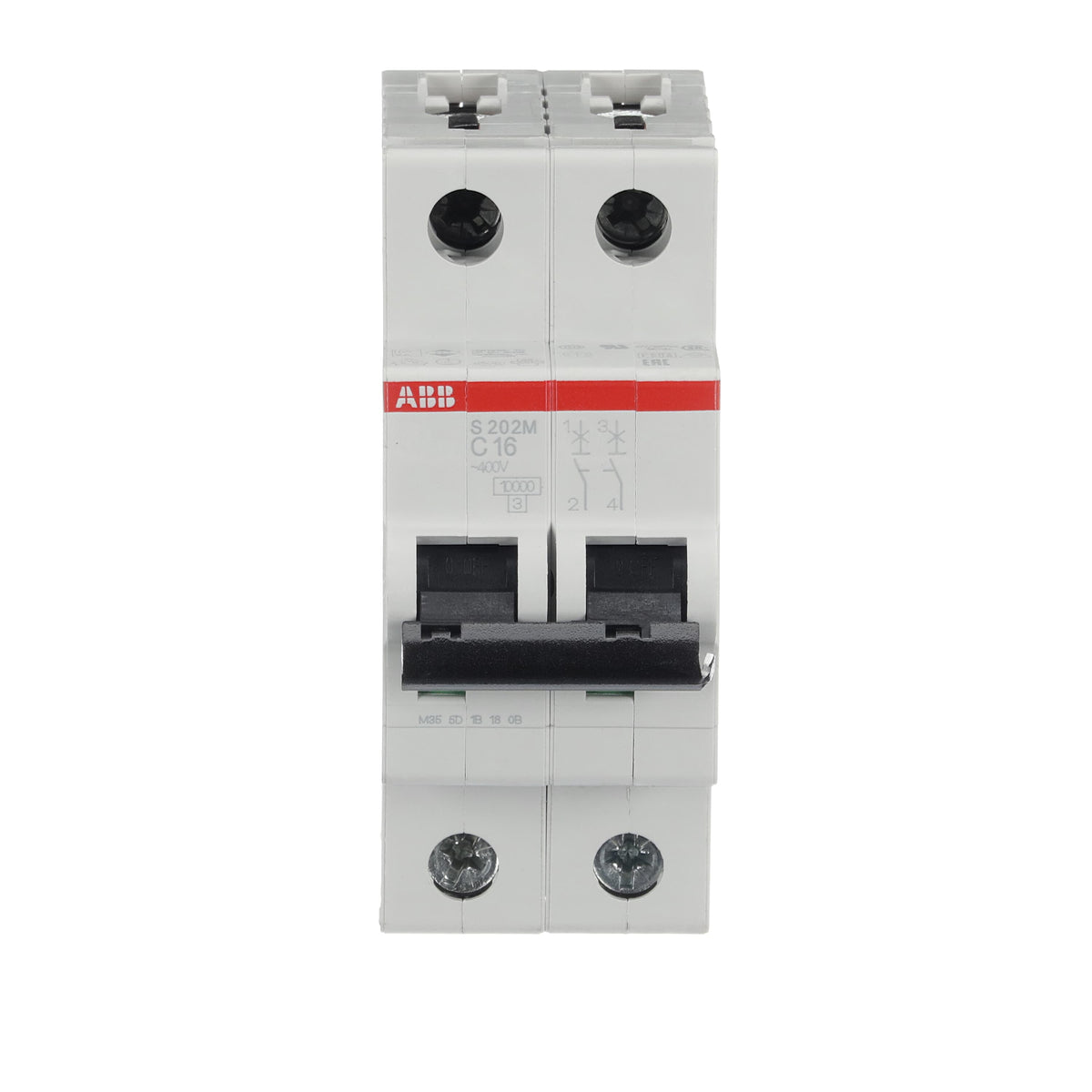

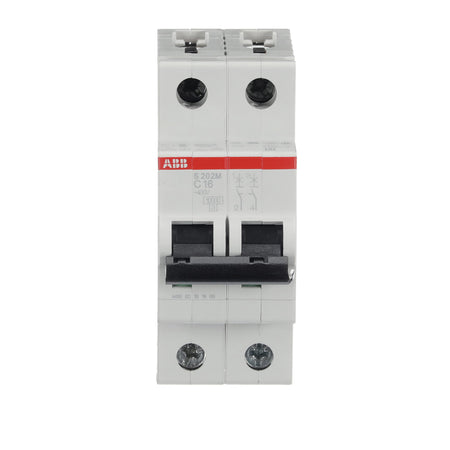

ABB S202M-C16 Miniature Circuit Breaker 2P C 16A 10kA
ABB S202M-C16 Miniature Circuit Breaker 2P C 16A 10kA

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB S202M-C16 Miniature Circuit Breaker 2P C 16A 10kA

SKU: 2CDS272001R0164
(0)
$45.56
In stock (1000 units)
Condition
Free standard shipping on orders $500+
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

ABB S202M-C16 Miniature Circuit Breaker, 2P, C Curve, 16A, 10kA

The ABB S202M-C16 (ordering code 2CDS272001R0164) is a System pro M compact® S200M miniature circuit breaker, 2 poles, C tripping characteristic, 16 A, rated short-circuit capacity 10 kA. It protects installations against overloads and short circuits and is compatible with the full System pro M compact accessory range. Technical data sourced from the official ABB datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit is visually inspected and functionally checked before shipment.

Key Features

  • Model: S202M-C16 — ABB S200M miniature circuit breaker
  • Ordering Code: 2CDS272001R0164 · EAN 4016779550307
  • Configuration: 2P, C curve, 16 A, 10 kA
  • Breaking capacity: up to 25 kA (230 V AC)
  • Lifecycle: Active (in production)

Technical Specifications

Official ABB Product Data — S202M-C16 (2CDS272001R0164)

Technical Specifications
Product / Family ABB System pro M compact · S200M miniature circuit breaker
Ordering Code / EAN 2CDS272001R0164 · EAN 4016779550307
Poles / Tripping Characteristic 2P · C curve
Rated Current [In] 16 A
Rated Short-Circuit Capacity 10 kA (230 V AC)
Breaking Capacity [Icu] 25 kA (230 V AC) · 15 kA (400/440 V AC) · Ics 7.5 kA (230 V AC)
Rated Operational Voltage 400 V AC (IEC 60898-1) / 440 V AC (IEC 60947-2); max 440 V AC / 125 V DC
[Ui] Insulation / [Uimp] Ui 440 V · Uimp 6.2 kV (sea level)
Rated Frequency 50/60 Hz
Power Loss 5 W (2.5 W/pole)
Endurance 20,000 electrical (AC) · 20,000 mechanical cycles
Mounting / Protection DIN rail · IP20 (IP40 with cover) · 2 modules, toggle actuator, screw terminals
Standards IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235, CE
Availability Status Active (in production)

Compatibility & Cross-References

Compatible with System pro M compact accessories: S2C auxiliary/signal contacts, S2C-A shunt trips, S2C-UA undervoltage releases, S2C-CM motor operating devices, DDA200 residual current blocks. This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Overload and short-circuit protection in AC distribution circuits
  • Residential, commercial and industrial distribution boards (DIN rail)
  • Panel protection in machine control systems

Warranty & Shipping

  • Availability: Stock and condition vary; contact us for real-time stock status and tested condition.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery about 5-8 business days, express available, free shipping over $500.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ABB part 2CDS272001R0164 (S202M-C16) is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is the 2CDS272001R0164?

A: The ABB S202M-C16 miniature circuit breaker, 2P, C curve, 16 A, 10 kA.

Q: Is it still available?

A: Yes — active ABB product.

Q: What breaking capacity?

A: 10 kA rated short-circuit; up to 25 kA (230 V AC) ultimate breaking.

Q: Is this the AC/DC (UC) version?

A: No — the standard AC version; the S202M-C16UC is the AC/DC universal-current variant.

S202M-C16 · 2CDS272001R0164 · ABB miniature circuit breaker · Technical reference data · Independently supplied by SHLY-PLC
