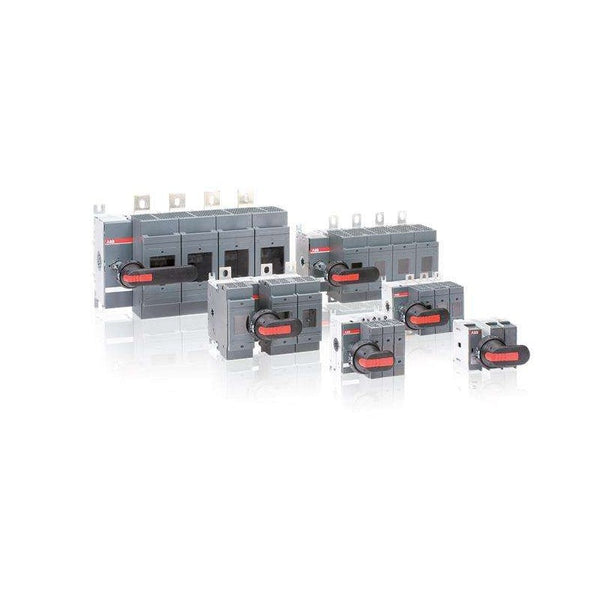

32A 4-Pole DIN Rail Disconnect Switch
| Parameter | Value |
|---|---|
| Product Type | Switch Disconnector |
| Series | OS |
| SKU | OS32GD04N2 |
| Rated Operational Current (Ie) | 32 A |
| Number of Poles | 4 |
| Rated Operational Voltage | 690 V AC |
| Rated Insulation Voltage (Ui) | 1000 V |
| Utilization Category | AC-21A / AC-22A / AC-23A |
| Mechanical Life | 6000 cycles |
| Mount Type | DIN Rail |
| Degree of Protection | IP20 (finger-safe terminals) |
| Terminal Type | Compression / Cage clamp |
| Operating Temperature | -25°C to +55°C |
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Estimated delivery: 5-8 business days to the United States and Canada. Express options available at checkout.
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | OS32GD04N2 |
| abb_order_code | 1SCA115192R1001 |
| poles | 4 |
| rated_current_In_A | 32 |
| rated_operational_voltage_V | 690 |
| fuse_system | DIN |
| cable_cross_section_mm2 | 2.5-25 |
| terminal_type | Screw terminals |
| tightening_torque_Nm | 3-4 |
| mounting | Base mounting, front operated |
Source: datasheet / product page
