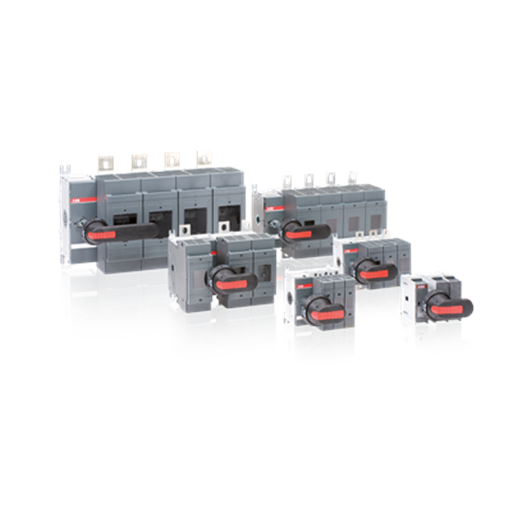

The OS160GD04N2 is a 4-pole fuse switch disconnector from the ABB OS range with a rated current of 160 A. It combines load switching and short-circuit protection in one compact device, accommodating DIN blade-type fuse links for main and branch prote
| Parameter | Value |
|---|---|
| Product Series | ABB OS fuse switch disconnectors |
| Model / Type Designation | OS160GD04N2 |
| Product Type | Fuse switch disconnector |
| Number of Poles | 4P |
| Rated Current In | 160 A |
| Rated Operational Voltage Ue | 500 V AC (120 kA) / 690 V AC |
| Fuse Type | DIN blade-type (knife-edge) fuse links |
| Rated Fuse Holder Current | 160 A |
| Operating Mechanism | Front operated; door interlock support |
| Utilization Category | AC-23A |
| Accessory Support | Auxiliary contacts, phase barriers, shaft extension |
| Mounting | Panel / door mounting (base) |
| Degree of Protection | IP20 basic (IP65 with handle assembly) |
| Ambient Operating Temperature | -25 to +55 °C |
| Mechanical Endurance | 10,000 operating cycles |
| Standards | IEC 60947-3 |
Designed for industrial automation and control applications. Provides reliable signal processing and system coordination.
This product carries the following certifications and approvals:
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Estimated delivery: 5-8 business days to the United States and Canada. Express options available at checkout.
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | OS160GD04N2 |
| order_code | 1SCA115881R1001 |
| rated_current | 160 A |
| poles | 4-pole |
| fuse_size | DIN 000/00 |
| operation | Front operated |
| special | Switched non-fusible fourth pole |
Source: datasheet / product page
