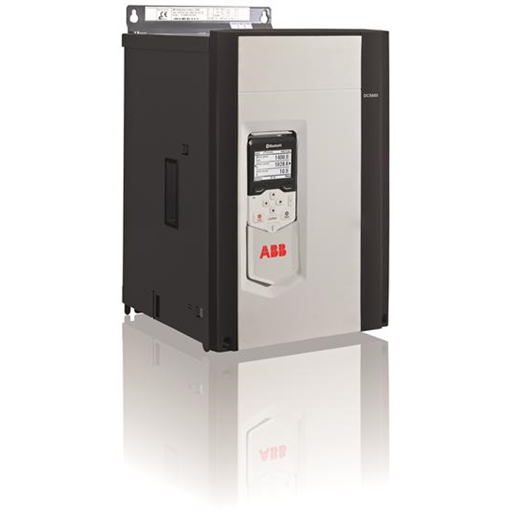

DCS800 DC Drive - 0230A 2-Q (Non-reversing)
The ABB DCS800 is an industrial DC drive delivering 0230A at up to 500V DC output. This non-reversing (2-quadrant) converter module is designed for demanding applications including rolling mills, wire drawing, and marine propulsion. Features built-in 3-phase field supply, IEC 61131 programming, and integrated Modbus communication.
| Product Series | DCS800 |
| Type Designation | DCS800-S01-0230-05 |
| Drive Type | DCS800 DC Drive Module |
| Bridge Configuration | 2-Q (Non-reversing) |
| Rated DC Current | 0230 A |
| DC Output Power | Up to 92 kW |
| AC Supply Voltage | 230 to 525 V AC |
| DC Output Voltage | Up to 500V DC |
| Field Supply | Built-in 3-phase field excitation |
| Communication | Modbus RTU + fieldbus adapter options |
| Programming | IEC 61131-3 compliant |
| Protection | Overcurrent, overvoltage, earth fault, motor thermal |
| Cooling | Forced air cooling |
| Ambient Temperature | 0°C to +40°C (derating to +55°C) |
| Enclosure | IP00 (module) / IP20 (with options) |
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | DCS800-S01-0230-05 |
| rated_DC_current_A | 230 |
| bridge_type | single bridge (2-Q, non-reversing) |
| voltage_class | 05 (230-525 V AC supply) |
| unit_size | D2 |
| enclosure | IP00 |
Source: datasheet / product page
