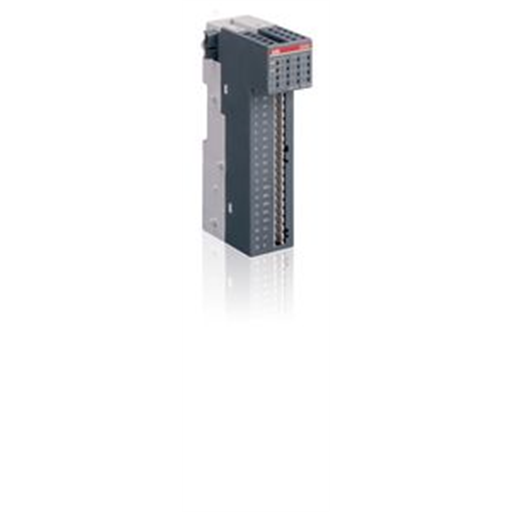

ABB AX561 AC500 Axis Interface Module
ABB AX561 AC500 Axis Interface Module

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB AX561 AC500 Axis Interface Module

SKU: AX561
(0)
$154.24
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
ABB

AX561

Axis Interface Module | AC500-S500 Series

Key Specifications at a Glance

Module Type
Axis
Channels
2 axis
Supply Voltage
24V DC
Protocol
SSI/Incremental

Technical Specifications

Parameter Value
Product Type Axis Interface Module
PLC Family AC500-S500
Channels 2 axis
Galvanic Isolation Galvanic
Communication Protocol SSI/Incremental
Supply Voltage 24V DC
Mounting DIN rail or direct coupling
Operating Temperature 0°C to +60°C
Protection Class IP20

Applications & Features

Industrial AutomationReliable I/O for process control and machine automation
Building ManagementHVAC, lighting, and energy management systems
Water & WastewaterPump stations, filtration, and treatment plants
Oil & GasHazardous area compatibility with proper enclosure
Material HandlingConveyor control, sorting, and palletizing systems
Power GenerationMonitoring and control in substations and plants

Compliance & Approvals

CEcULusCSAATEXIEC 61131-2IEC 61131-3RoHSISO 9001Marine: ABS, DNV-GL, LR

Frequently Asked Questions

Q: What is the warranty for ABB AX561?

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Q: How fast can you ship AX561?

A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).

Q: Is AX561 compatible with ABB systems?

A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.

Model Specifications

converted_model AX561
order_code 1TNE968902R1301
analog_inputs 4
analog_outputs 2
input_signal_ranges -2.5...+2.5 V, -5...+5 V, -10...+10 V, 0...5 V, 0...10 V, 0...20 mA, 4...20 mA
output_signal_ranges -10...+10 V, 0...20 mA, 4...20 mA
resolution 12 bits / 11 bits + sign
supply_voltage 24 V DC (via I/O bus)
current_consumption_A 0.14
weight_kg 0.13
potential_isolation Per module

Source: datasheet / product page
