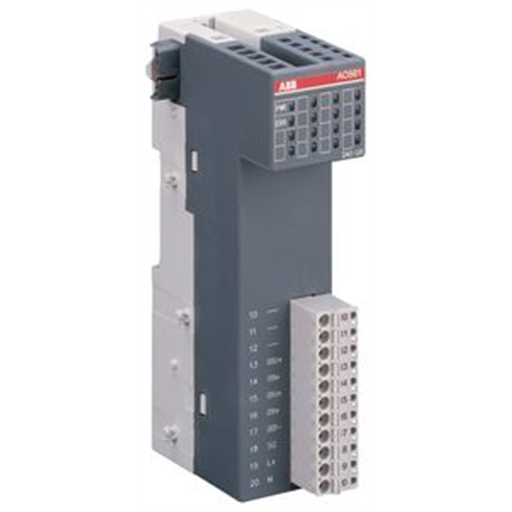

Analog Output Module | AC500-S500 Series
| Parameter | Value |
|---|---|
| Product Type | Analog Output Module |
| PLC Family | AC500-S500 |
| Channels | 4 AO |
| Signal Types | 0-10V / 0-20mA / 4-20mA |
| Resolution | 12-bit |
| Galvanic Isolation | Channel-to-bus |
| Supply Voltage | 24V DC |
| Mounting | DIN rail or direct coupling |
| Operating Temperature | 0°C to +60°C |
| Protection Class | IP20 |
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | AO561 |
| order_code | 1TNE968902R1201 |
| analog_outputs | 2 |
| output_signal_ranges | -10...+10 V, 0...20 mA, 4...20 mA |
| resolution | 11 bits + sign |
| supply_voltage | 24 V DC (via I/O bus) |
| current_consumption_A | 0.1 |
| weight_kg | 0.12 |
| potential_isolation | Per module |
Source: datasheet / product page
