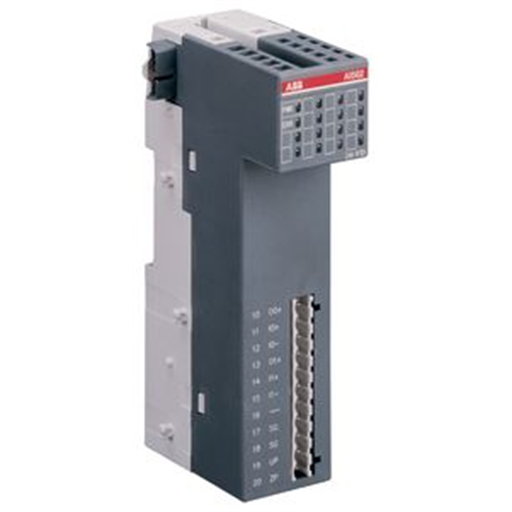

ABB AI562 AC500 Analog Input Module
ABB AI562 AC500 Analog Input Module

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB AI562 AC500 Analog Input Module

SKU: AI562
(0)
$134.50
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
ABB

AI562

Analog Input Module | AC500-S500 Series

Key Specifications at a Glance

Module Type
Analog
Channels
8 AI
Supply Voltage
24V DC
Signal Range
0-10V / 0-20mA / 4
Resolution
14-bit

Technical Specifications

Parameter Value
Product Type Analog Input Module
PLC Family AC500-S500
Channels 8 AI
Signal Types 0-10V / 0-20mA / 4-20mA / Pt100/Pt1000
Resolution 14-bit
Galvanic Isolation Channel-to-bus
Supply Voltage 24V DC
Mounting DIN rail or direct coupling
Operating Temperature 0°C to +60°C
Protection Class IP20

Applications & Features

Industrial AutomationReliable I/O for process control and machine automation
Building ManagementHVAC, lighting, and energy management systems
Water & WastewaterPump stations, filtration, and treatment plants
Oil & GasHazardous area compatibility with proper enclosure
Material HandlingConveyor control, sorting, and palletizing systems
Power GenerationMonitoring and control in substations and plants

Compliance & Approvals

CEcULusCSAATEXIEC 61131-2IEC 61131-3RoHSISO 9001Marine: ABS, DNV-GL, LR

Frequently Asked Questions

Q: What is the warranty for ABB AI562?

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Q: How fast can you ship AI562?

A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).

Q: Is AI562 compatible with ABB systems?

A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.

Model Specifications

converted_model AI562
order_code 1TNE968902R1102
analog_inputs 2
input_type RTD / resistance
supported_sensors Pt100 (-50...+400 C, 2/3-wire), Pt1000 (-50...+400 C, 2/3-wire), Ni100/Ni1000 (-50...+150 C, 2/3-wire), resistance 150 ohm / 300 ohm
resolution 15 bits + sign
supply_voltage 24 V DC (via I/O bus)
current_consumption_A 0.04
weight_kg 0.12
potential_isolation Per module

Source: datasheet / product page
