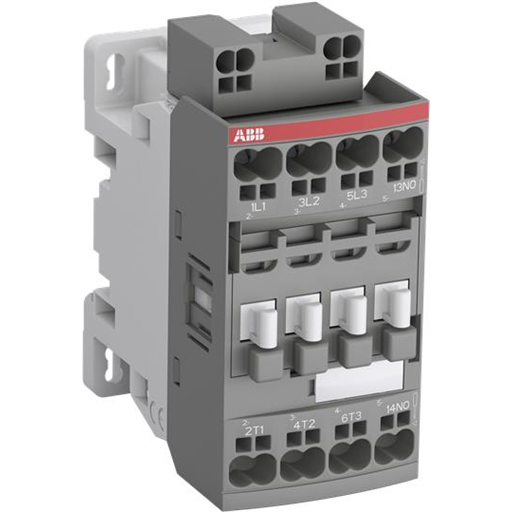

AF Series 3-Pole Contactor - 16A
The ABB AF16 is an 3-pole electronic contactor from the AF family, featuring a wide-range electronic coil that operates from 48-130V AC/DC or 100-250V AC/DC. Rated at 16A for AC-3 utilization at 690V, it provides reliable motor starting, isolation, and switching with 80% reduced energy consumption compared to conventional coils.
| Product Series | AF |
| Type Designation | AF16Z-30-01K-20 |
| Contactor Type | 3-Pole AF Contactor |
| Rated Current AC-3 | 16 A at 400/415V |
| Rated Current AC-1 | 20 A at 690V |
| Rated Voltage | Up to 690V AC |
| Motor Power AC-3 | Up to 5.5 kW at 400V |
| Auxiliary Contacts | Configurable |
| Coil Voltage | Wide range: 48-130V or 100-250V AC/DC |
| Coil Type | Electronic (80% energy saving) |
| Mechanical Durability | 10 million operations |
| Electrical Durability (AC-3) | 1-2 million operations |
| Ambient Temperature | -40°C to +70°C (storage), -25°C to +60°C (operation) |
| Max Altitude | 3000 m |
| Mounting | DIN rail or screw mounting |
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | AF16Z-30-01K-20 |
| poles | 3 NO main poles |
| rated_operational_current_A_AC3 | 16 |
| rated_motor_power_kW_400V | 4 |
| general_use_rating_A_UL | 30 |
| max_voltage_V | 690 |
| coil_voltage | 12-20 V DC (suffix -20) |
Source: datasheet / product page
