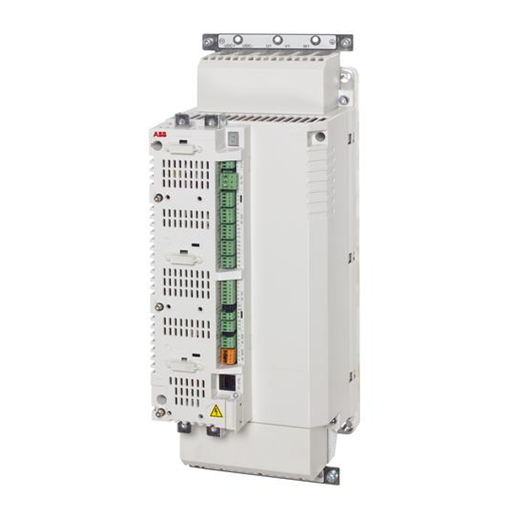

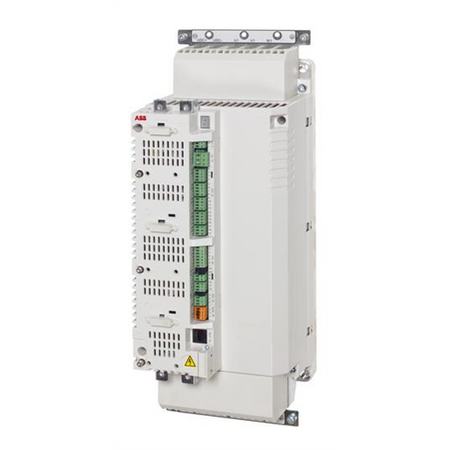

ACSM1 Motion Control Drive - 400V 024A
The ABB ACSM1 is a high-performance motion control drive designed for precise positioning and motion applications. This 024A module at 400V delivers up to 11 kW with Motion Control program. Supports asynchronous servo motors, permanent magnet synchronous motors, and high-torque motors with advanced feedback interfaces.
| Product Series | ACSM1 |
| Type Designation | ACSM1-04AM-024A-4 |
| Drive Type | ACSM1-04 Motion Control program |
| Rated Current (IN) | 024 A |
| Motor Power | Up to 11 kW |
| Supply Voltage | 3-phase 380 to 500 V AC |
| Output Frequency | 0 to 500 Hz |
| Switching Frequency | 1 to 16 kHz (default 4 kHz) |
| Motor Types | Async servo, PM sync servo, high-torque |
| Motor Control | DTC / Scalar / Servo tuning |
| Braking Chopper | Built-in as standard |
| Enclosure | IP20 / UL Type Open |
| Ambient Temperature | -10°C to +55°C (derating above 40°C) |
| Altitude | 0 to 4000 m (derating above 1000 m) |
| Safety | Safe Torque Off (STO) as standard |
| Feedback | Encoder/resolver interface modules |
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | ACSM1-04AM-024A-4 |
| rated_current_A | 24 |
| rated_power_kW | 11 |
| rated_voltage | 3-phase 380-480 V AC |
| frame_size | C |
| enclosure | IP20 |
Source: datasheet / product page
