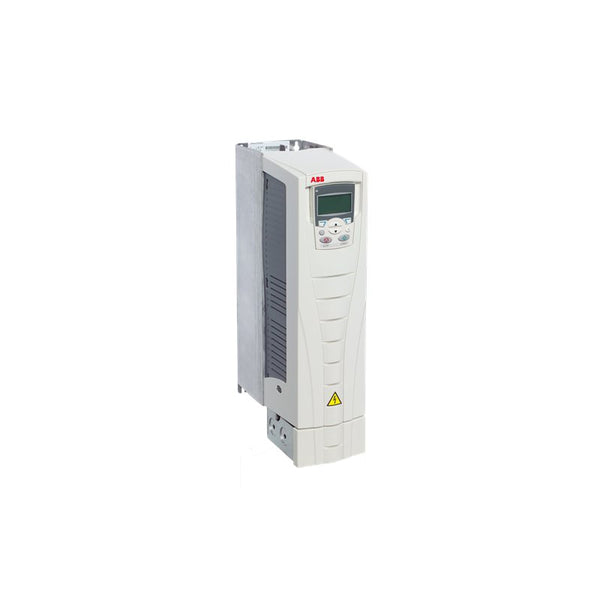

ACS510 HVAC Drive | 11.0 kW (15.0 HP) | 380-480 V AC Three-Phase
The ABB ACS510-01-025A-4 is part of the ACS510 series, the premier HVAC drive solution, specifically optimized for fan, pump, and constant-pressure water supply applications. Features built-in RFI filter, DC choke, and advanced PID/PFC functions for superior energy efficiency. This model delivers 11.0 kW (15.0 HP) of rated power with a nominal output current of 25.0 A at 380-480 V AC Three-Phase input.
| Product Series | ABB ACS510 |
| Type Designation | ACS510-01-025A-4 |
| Rated Power (Normal Use) | 11.0 kW / 15.0 HP |
| Rated Output Current (I₂ₙ) | 25.0 A |
| Light-Overload Current (ILD) | 27.5 A |
| Supply Voltage | 380-480 V AC |
| Number of Phases | Three-Phase |
| Input Frequency | 50/60 Hz |
| Output Frequency Range | 0-500 Hz |
| Frame Size | R2 |
| Protection Class | IP21 |
| Communication | Modbus RTU (RS-485) |
| Efficiency Class | IE2 |
| Motor Control | Scalar & Vector Control |
| Mounting Type | Wall-mounted |
Low Voltage Directive 2006/95/EC · Machinery Directive 2006/42/EC · EMC Directive 2004/108/EC
· SHLY-PLC · Industrial Automation Solutions · Worldwide Shipping
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | ACS510-01-025A-4 |
| input_voltage | 380...480 V 3-phase AC (+10%/-15%) |
| input_frequency | 48...63 Hz |
| rated_output_current_A | 25.0 |
| rated_motor_power_kW | 11.0 |
| rated_motor_apparent_kVA | 16.0 |
| frame_size | R2 |
| enclosure_rating | IP21 / UL Type 1 (IP54 optional +B055) |
| overload_capacity | 1.1 x I2N for 1 min every 10 min |
| default_switching_frequency_Hz | 4000 |
| mounting | Wall-mounted |
| power_factor | 0.98 |
Source: datasheet / product page
