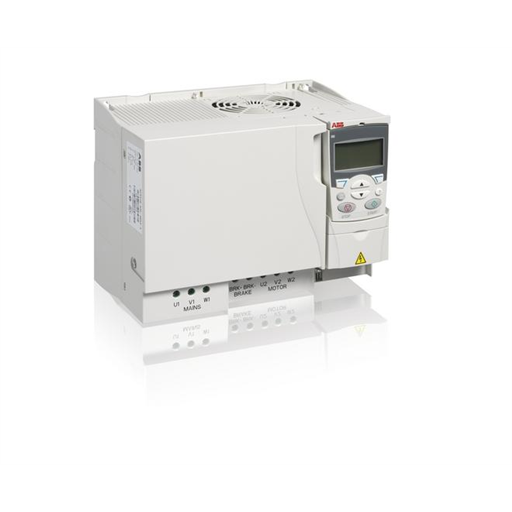

ACS310 Pump & Fan Drive | 18.5 kW (25 HP) | 380-480 V AC Three-Phase
The ABB ACS310-03E-41A8-4 is part of the ACS310 series, designed for variable torque applications such as pumps, fans, and ventilation systems. It features built-in PID controllers and Pump/Fan Control (PFC) functionality that automatically adjusts drive performance based on process demands. This model delivers 18.5 kW (25 HP) of rated power with a nominal output current of 41.8 A at 380-480 V AC Three-Phase input.
| Product Series | ABB ACS310 |
| Type Designation | ACS310-03E-41A8-4 |
| Rated Power (Normal Use) | 18.5 kW / 25 HP |
| Rated Output Current (I₂ₙ) | 41.8 A |
| Light-Overload Current (ILD) | 38 A |
| Supply Voltage | 380-480 V AC |
| Number of Phases | Three-Phase |
| Input Frequency | 50/60 Hz |
| Output Frequency Range | 0-599 Hz |
| Frame Size | R4 |
| Protection Class | IP20 |
| Communication | Modbus RTU (RS-485) |
| Efficiency Class | IE2 |
| Motor Control | Scalar U/f |
| Mounting Type | Module for cabinet building |
Low Voltage Directive 2006/95/EC · Machinery Directive 2006/42/EC · EMC Directive 2004/108/EC
· SHLY-PLC · Industrial Automation Solutions · Worldwide Shipping
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | ACS310-03E-41A8-4 |
| series | ACS310 |
| construction | 03E = 3-phase, EMC filter connected |
| rated_motor_power_Pn | 18.5 kW (25.0 hp) |
| rated_output_current_I2n | 41.8 A |
| mains_voltage | 380 to 480 V AC, 3-phase +/-10% |
| mains_frequency | 48 to 63 Hz |
| enclosure | IP20 |
| frame_size | R4 |
Source: datasheet / product page
