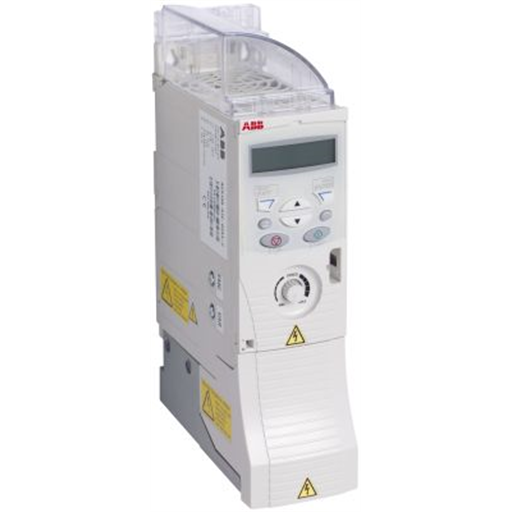

ACS150 Micro Drive | 380-480 | 0.75 kW | 2.4A
| Parameter | Value |
|---|---|
| Product Series | ACS150 Micro Drive |
| Input Voltage | 380-480 V, 3-phase, 48-63 Hz |
| Output Voltage | 3-phase, 0 to supply voltage |
| Output Frequency | 0 to 500 Hz |
| Rated Output Current (I2N) | 2.4 A |
| Rated Power (PN) | 0.75 kW |
| Frame Size | R1 |
| Protection Class | IP20 |
| Motor Control | Scalar (U/f) |
| Power Factor | 0.98 |
| Overload Capability | 1.5× I2N for 1 min/10 min |
| Switching Frequency | 4 kHz (selectable 4-16 kHz) |
| Acceleration Time | 0.1 to 1800 s |
| Deceleration Time | 0.1 to 1800 s |
| Braking | Built-in brake chopper |
| Analog Inputs | 1 (0-10V / 4-20mA) |
| Digital Inputs | 5 (12-24V DC, PNP/NPN) |
| Relay Output | 1 (NO + NC) |
| EMC Filter | Built-in (2nd environment) |
| Dimensions (H×W×D) | 142x70x130 mm |
| Ambient Temperature | -10°C to +40°C |
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | ACS150-03E-02A4-4 |
| rated_power | 0.75 kW |
| rated_current | 2.4 A |
| supply_voltage | 3-phase 380-480 V +/-10% |
| frame_size | R1 |
| features | built-in EMC filter, scalar control, integrated control panel, built-in brake chopper, IP20 |
Source: datasheet / product page
