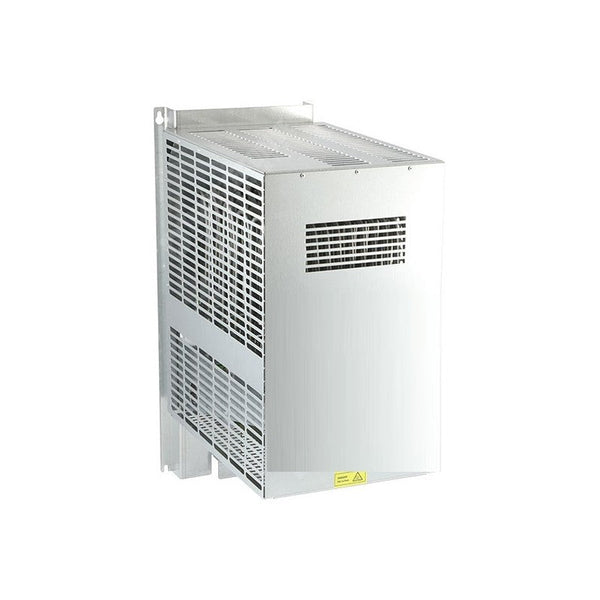

Braking Unit, 7000W Average / 14000W Peak
| Parameter | Value |
|---|---|
| Product Series | ACS-BRK |
| Model | ACS-BRK-D |
| Compatible Drives | ACS100 / ACS140 / ACS400 / ACS550 / ACS580 |
| Input Voltage Range | 200 to 850 V DC |
| Average Braking Power (240V) | 7000 W |
| Peak Braking Power (20s, 240V) | 14000 W |
| Peak Braking Power (20s, 480V) | 42000 W |
| Brake Resistor | 10.5 Ω |
| Overload Indication | 110-220V AC, max 8A (thermostat) |
| Power Cable | 2×35+35 mm² |
| Dimensions (W×H×D) | 270 × 600 × 450 mm |
| Weight | 20.5 kg |
| Operating Temperature | 0°C to +40°C |
| Protection Class | IP21 |
| Mounting | Vertical wall mount |
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Estimated delivery: 5-8 business days to the United States and Canada. Express options available at checkout.
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | ACS-BRK-D |
| compatible_drive_family | ACS100/140/550 family brake unit |
| rating_200_240V_resistance_ohm | 10.5 |
| rating_200_240V_continuous_W | 7000 |
| rating_200_240V_max20s_W | 14000 |
| rating_380_480V_max20s_W | 42000 |
Source: datasheet / product page
