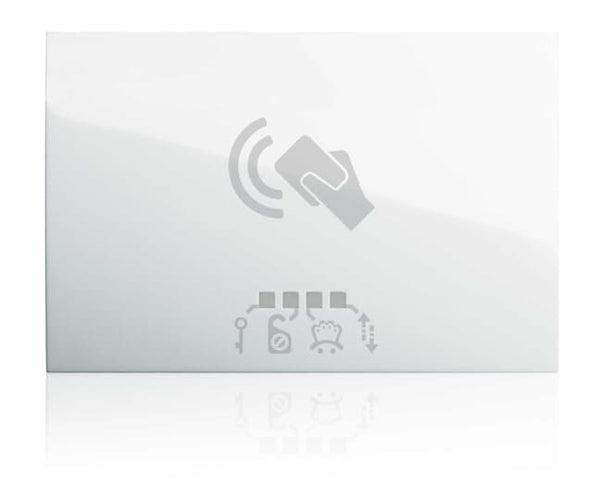

KNX bus-based flush-mounting transponder reader for access control systems with two programmable bistable relays and three binary inputs.
| Parameter | Value |
|---|---|
| Parameter | Value |
| Product Type | Transponder reader (LT/U 1.1.CH) |
| Product Range | KNX |
| External Power Supply | 10...32 V DC / 12...24 V AC |
| Bus Power Consumption | Max 10 mA from KNX bus |
| External Power Peak | 3 W |
| Number of Outputs | 2 bistable relays, 8 A @ 250 V AC |
| Number of Inputs | 3 voltage-free binary inputs |
| Status Indicators | 4 LEDs on front |
| Mounting Type | Flush mounted |
| Degree of Protection | IP20 |
| Operating Temperature | -5...+50 °C |
| Humidity | Max 93% non-condensing |
| Terminal Type | Screw terminals (0.5 Nm) |
| Design Range | Chiara |
| Color | White (RAL 9003) |
| Dimensions (WxHxD) | 66 x 44 x 46 mm |
| Net Weight | 0.1 kg |
| Standards | EN 50090-2-2, EN 50491 |
| ETIM Classification | EC000782 - Access control unit for bus system |
Suitable for a wide range of industrial and commercial electrical installations.
This product carries the following certifications and approvals:
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Estimated delivery: 5-8 business days to the United States and Canada. Express options available at checkout.
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | 2CSKK5000C |
| extended_product_type | LT/U 1.1.CH |
| output_relays | 2 bistable relays, 8 A, 250 V~ |
| auxiliary_inputs | 3 voltage-free, non-optically isolated inputs |
| scanning_voltage | 5 VDC (device-generated) |
| design_range | Chiara |
Source: datasheet / product page
