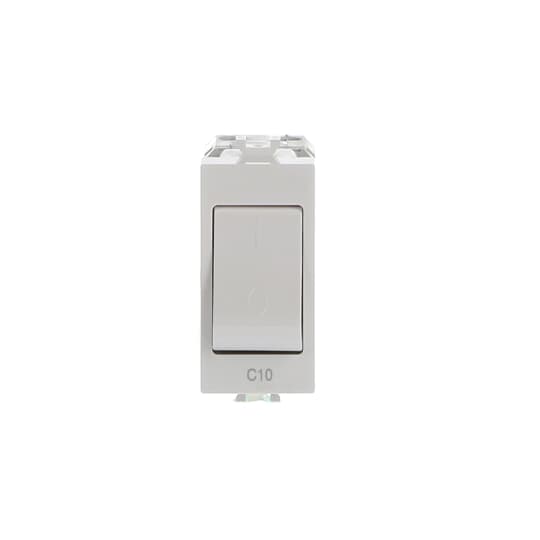

Automatic 1P+N MCB with C-curve tripping characteristic, 10 A rated current, and 3 kA breaking capacity.
| Parameter | Value |
|---|---|
| Parameter | Value |
| Product Type | Automatic MCB |
| Poles | 1P+N |
| Tripping Characteristic | C |
| Rated Current (In) | 10 A |
| Rated Operational Voltage | 230 V (IEC 60947-2) |
| Rated Insulation Voltage (Ui) | 2000 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Breaking Capacity | 3 kA at 230 V |
| Frequency | 50...60 Hz |
| Energy Limiting Class | 3 |
| Number of Protected Poles | 1 |
| Overvoltage Category | III |
| Connecting Capacity | 6 mm² rigid/flexible |
| Mounting Type | Flush mounted |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Ambient Temperature | -5...40 °C |
| Design Range | Chiara |
| Color | White |
| Module Width | 1 module |
| Net Weight | 0.006 kg |
| Built-in Depth | 56 mm |
| ETIM Classification | EC000042 - MCB |
Provides critical protection for electrical circuits against overload, short circuit, and earth leakage faults.
This product carries the following certifications and approvals:
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Estimated delivery: 5-8 business days to the United States and Canada. Express options available at checkout.
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | 2CSK1305CH |
| number_of_poles | 1P+N |
| poles_protected | 1 |
| tripping_curve | C |
| rated_current_A | 10 |
| rated_breaking_capacity_kA | 3 |
| rated_operating_voltage_V | 230 |
| rated_insulation_voltage_Ui_V | 2000 |
| impulse_withstand_voltage_kV | 4 |
| frequency_Hz | 50/60 |
| pollution_degree | 2 |
| ip_rating | IP20 |
| ambient_temp_C | -5...40 |
| weight_kg | 0.006 |
| colour | White |
| range | Chiara |
Source: datasheet / product page
