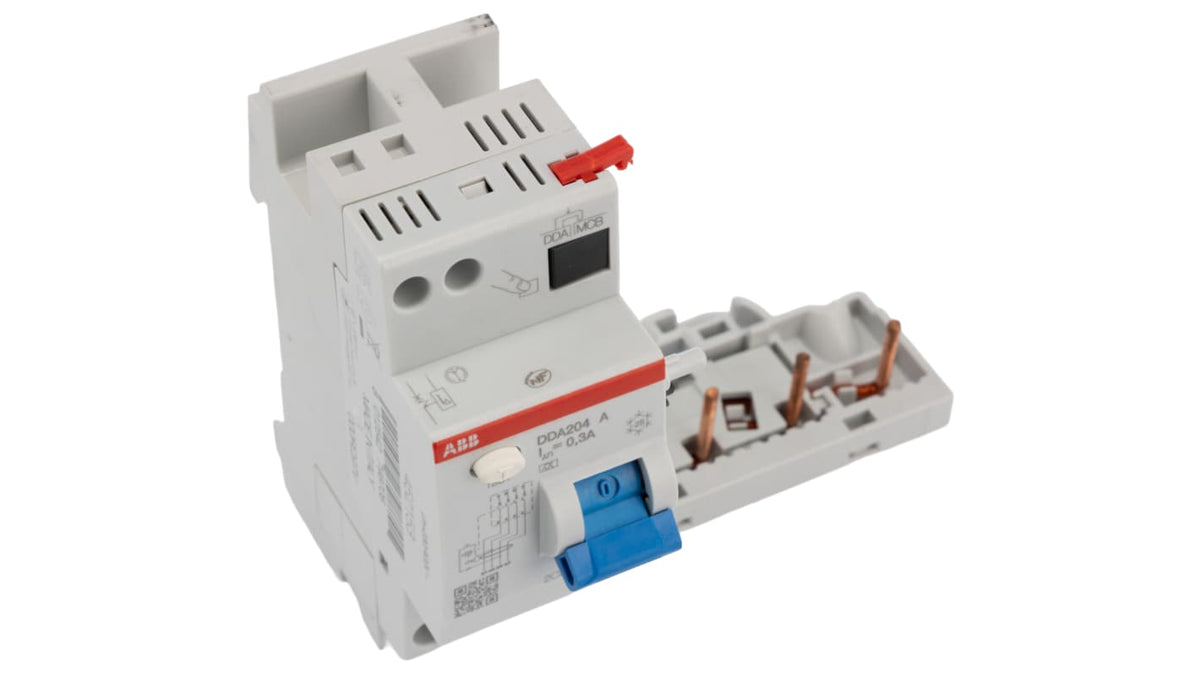

The DDA204 AC-63/0.5 is a 4-pole RCD block from ABB's DDA200 series, designed for assembly with S200 series MCBs. It provides protection against sinusoidal alternating earth fault currents and indirect contacts with a rated residual current of 500 mA.
| Standards | IEC/EN 61009 Ann. G |
| Type of Residual Current | AC type |
| Rated Voltage (Ur) | 230/400 V |
| Rated Operational Voltage | 230/400 V |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Current (In) | 63 A |
| Rated Residual Current | 500 mA |
| Leakage Current Type | AC |
| Rated Frequency (f) | 50 to 60 Hz |
| Power Loss | 7.6 W |
| Power Supply Connection | Arbitrary |
| Electrical Endurance | 10000 cycles |
| Number of Poles | 4 |
| Operating Characteristic | Instantaneous |
| Connecting Capacity | Rigid 25 mm², Flexible 25 mm² |
| Ambient Temperature | -25 to 55 °C |
| Degree of Protection | IP2X |
| Short-Circuit Current Rating (SCCR) | 0.5 A |
| Product Net Dimensions | 140 x 93 x 76 mm (W x H x D) |
| Product Net Weight | 0.311 kg |
Ships via DHL / FedEx / UPS.. Bulk inquiry welcome.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Estimated delivery: 5-8 business days to the United States and Canada. Express options available at checkout.
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | 2CSB204001R4400 |
| abb_type | DDA204 AC-40/0.5 |
| poles | 4P |
| rated_current | 40 A |
| rated_residual_current | 500 mA |
| rcd_type | Type AC |
| rated_voltage | 230/400 V AC |
Source: datasheet / product page
