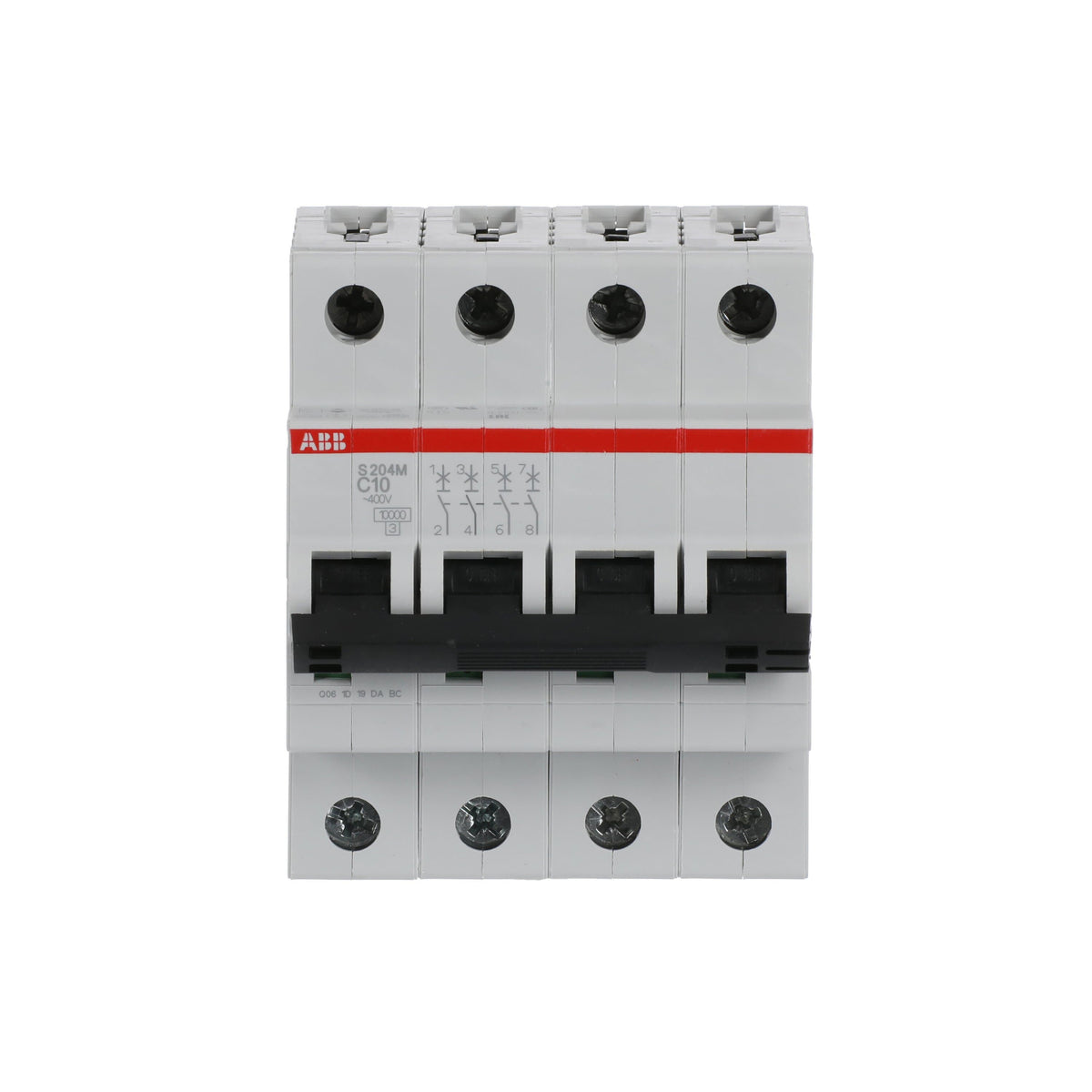

The S204M-C10 is a 4-pole miniature circuit breaker (MCB) from the ABB S200 series with a C-curve trip characteristic and a rated current of 10 A. It protects electrical installations against overload and short circuits, breaking short-circuit currents up to 10 kA (IEC) in a single DIN-rail module width.
The C trip curve (5-10 In instantaneous tripping) makes the breaker suited to low-inductive loads with low inrush currents, such as lighting circuits, general-purpose outlets and equipment with low motor-inrush. The C10 rating delivers dependable protection on lighting and general distribution circuits in commercial and light-industrial panels.
Typical applications include sub-distribution boards, machine control panels, lighting circuits and commercial electrical installations. The breaker mounts on a DIN rail with standard bus-bar and terminal accessories.
| Product Series | ABB S200 (S200M) MCB |
| Model / Type Designation | S204M-C10 |
| Product ID (Order No.) | 2CDS274001R0104 |
| Product Type | Miniature circuit breaker (MCB) |
| Number of Poles | 4P |
| Rated Current In | 10 A |
| Trip Characteristic | C curve (5-10 In) |
| Rated Voltage Ue | 230/400 V AC |
| Rated Insulation Voltage Ui | 500 V |
| Rated Impulse Withstand Voltage Uimp | 6 kV |
| Breaking Capacity (IEC 60898) | 10 kA |
| Trip Free | Yes |
| Operation Mode | Trip-free (TEF) |
| Terminal Type | Cable-clamp tunnel terminals (top/bottom) |
| Terminal Capacity | Up to 35 mm² |
| Mounting | Snap-on DIN rail |
| Degree of Protection | IP4x enclosure; IP2x terminals |
| Ambient Operating Temperature | -25 to +55 °C |
| Mechanical Endurance | 20,000 switching cycles |
| Standards | IEC 60898 |
| Dimensions (W x H x D) | 70 x 88 x 69 mm |
| Brand | ABB |
| Condition | New Surplus |
| Warranty | 12-month seller warranty provided by SHLY-PLC |
Shipping & Warranty: Fast order processing with worldwide delivery available. This item is sold as New Surplus Contact our team for compatibility checks, bulk pricing, or spare-parts sourcing support.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Estimated delivery: 5-8 business days to the United States and Canada. Express options available at checkout.
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | 2CDS274001R0104 |
| series | S200M |
| model_name | S204M-C10 |
| poles | 4P |
| tripping_curve | C |
| rated_current | 10 A |
| breaking_capacity | 10 kA (Icu, 400 V AC, IEC/EN 60947-2) |
| rated_voltage | 440 V AC / 125 V DC |
| standard | IEC/EN 60947-2, IEC/EN 60898-1 |
| mounting | DIN rail |
Source: datasheet / product page
