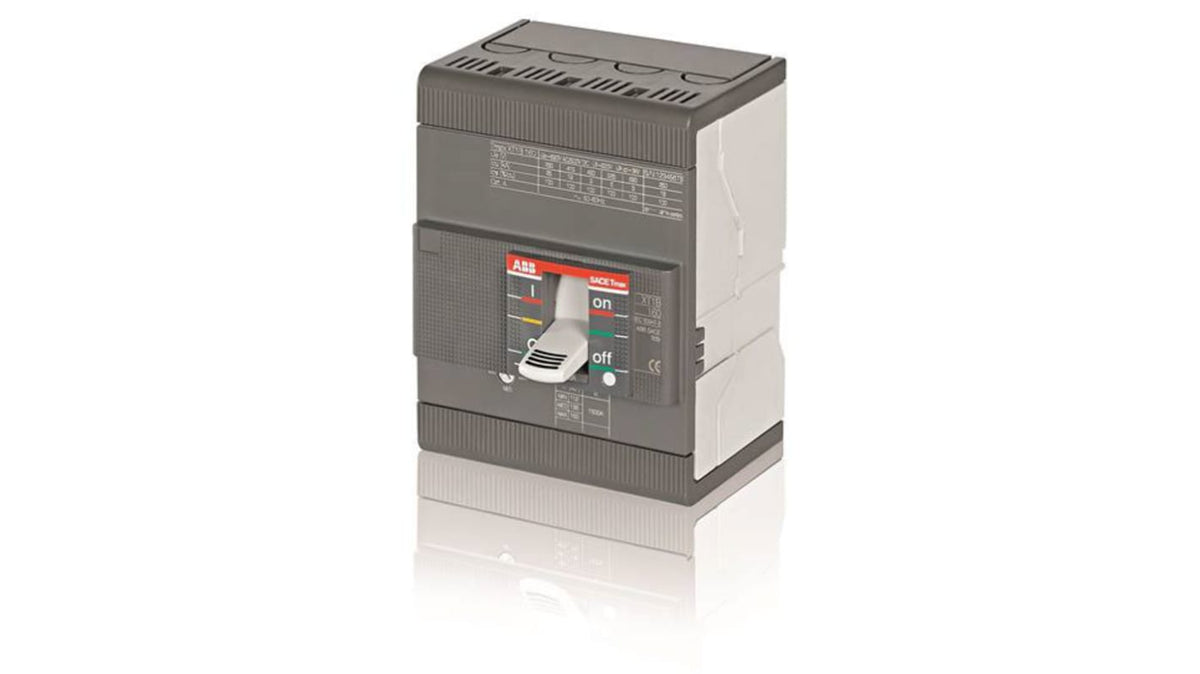

Tmax XT Series XT1C Moulded Case Circuit Breaker - 4-Pole, 80A, 25kA at 415V
| Parameter | Value |
|---|---|
| Product Type | Moulded Case Circuit Breaker (MCCB) |
| Product Series | SACE Tmax XT - Frame XT1 |
| Model Designation | XT1C 160/R 80 4P |
| Number of Poles | 4 |
| Rated Current (In) | 80 A |
| Frame Rated Current | 160 A |
| Breaking Capacity Icu @ 415V | 25 kA |
| Breaking Capacity Icu @ 690V AC | 25 kA |
| Rated DC Voltage | 500 V DC |
| Trip Unit Type | Thermomagnetic (TMD) |
| Overload Setting Range | 56-80 A |
| Short-Circuit Setting | 800 A (fixed) |
| Connection Type | Front terminal (bolt) |
| Mounting | Fixed, DIN rail or panel |
| Dimensions (W x H x D) | 70 x 130 x 101.6 mm |
| Protection Class | IP20 |
| Power Loss | 4.8 W |
| Standard | IEC 60947-2 |
| Country of Origin | Italy |
| Standard | IEC 60947-2 |
|---|---|
| RoHS | Compliant |
| CE Marking | Yes |
SHLY-PLC is an independent industrial-automation distributor. Brand names and trademarks are the property of their respective owners and are used for identification and compatibility reference only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Estimated delivery: 5-8 business days to the United States and Canada. Express options available at checkout.
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | 1SDA067405R1 |
| type_designation | XT1C 160 TMD 80-800 4p F F |
| number_of_poles | 4P |
| rated_current_In | 80 A |
| frame_size | XT1C 160 (160 A frame) |
| breaking_capacity_Icu | 25 kA at 415 V AC |
| trip_unit | Thermomagnetic TMD R 80-800 A (thermal 80 A fixed, magnetic 80-800 A adjustable) |
| mounting | Fixed, front terminals |
| rated_voltage | 690 V AC |
Source: datasheet / product page
