ABB BER38-4 Reversing Contactor Busbar Link 1SBN082311R1000

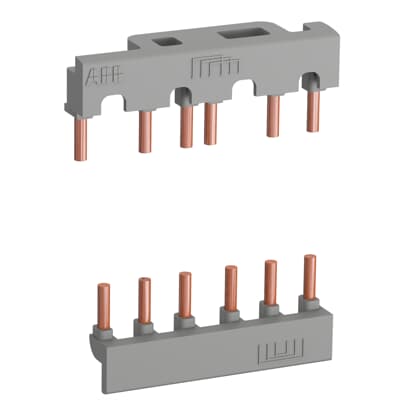

The ABB 1SBN082311R1000 (BER38-4) is factory prefabricated copper busbar kit for building reversing starter assemblies. It interconnects two adjacent contactors to implement motor forward/reverse function, eliminates manual cross wiring and reduces wiring faults in control cabinets.

Key Features

  • Preformed copper busbar set for contactor reversing circuit
  • Insulated plastic support frame for safe installation
  • Designed for pairing two 3-pole contactors side by side
  • Direct snap-on mounting, no custom cutting required
  • Shorten panel assembly time and reduce wiring error risk
  • Suitable for machine builders and surplus control cabinet assembly

Technical Specifications

Order Code 1SBN082311R1000
Model BER38-4
Product Category Reversing contactor connection kit / Busbar link
Rated Operational Voltage Ue 690 V AC
Rated Thermal Current Ith 45 A
Compatible Contactor Series AF26, AF30, AF38, AFS26, AFS30, AFS38, AFC26, AFC38
Material - Conductor Electrolytic copper, tin-plated
Material - Insulator Reinforced thermoplastic, flame retardant
Mounting Arrangement Two contactors mounted adjacent on DIN rail
Product Dimensions (W × H × D) 87.2 mm × 42 mm × 24 mm
Net Weight 0.095 kg
Operating Temperature Range -25 °C ~ +70 °C
Storage Temperature -40 °C ~ +85 °C
Terminal Tightening Torque 1.7 N·m
Standards & Certifications IEC/EN 60947-1, CE, RoHS

Applications

  • Forward / reverse motor reversing starter assemblies
  • Conveyors, hoists, lifting equipment direction control
  • surplus machine control cabinet wiring
  • Packaging machinery, material handling automation panels

FAQ

Q: What is BER38-4 1SBN082311R1000 used for?
A: It is a pre-made tin-plated copper busbar kit to connect two 3-pole contactors for motor reversing circuits.

Q: Which contactors can this busbar fit?
A: Compatible with ABB AF26, AF30, AF38, AFS and AFC series contactors.

Q: What is rated thermal current?
A: 45A, matched for AF38 frame contactor reversing starters.

Note: This item is supplied by independent supplier, not an .

Warranty

12-month seller warranty provided by SHLY-PLC.

Model Specifications

converted_model 1SBN082311R1000
type_designation BER38-4
function reversing connection set
for_use_with AF38 reversing contactors

Source: datasheet / product page
