ABB 1SBL407082R1322 AF96 3-Pole Contactor
ABB 1SBL407082R1322 AF96 3-Pole Contactor

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

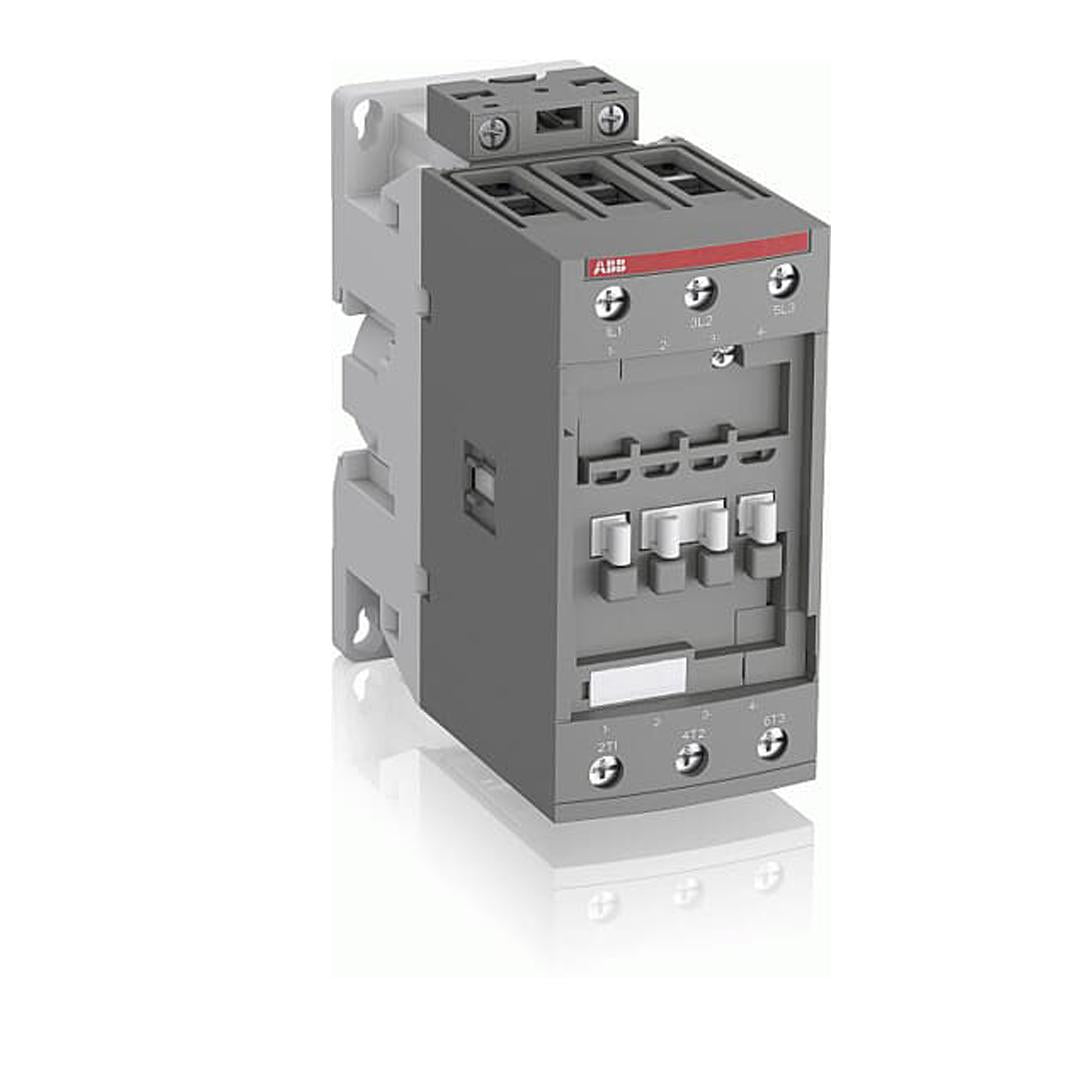

ABB 1SBL407082R1322 AF Contactor - AF96

SKU: 1SBL407082R1322
(0)
$465.00
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
AF Series Contactor

1SBL407082R1322

ABB AF96 AF Series 3-Pole Contactor with 2 NO + 2 NC Auxiliary Contacts

Model: AF96-30-22 AC-3: 45 kW @ 400V Ith: 130 A UL/CSA: 115 A @ 600V Coil: 24-60V AC/DC

Key Ratings at a Glance

AC-3 Power @ 400V
45 kW
AC-3 Current @ 400V
96 A
AC-1 @ 690V (40°C)
130 A
UL/CSA @ 600V
115 A
Thermal Current Ith
130 A
HP Rating @ 480V
60 hp
Main Poles
3P NO
Aux Contacts
2NO+2NC

Technical Specifications

Electrical Ratings

Parameter Value
Rated Operational Voltage 690 V (Main Circuit)
Rated Control Circuit Voltage 24...60 V AC / 20...60 V DC
Rated Frequency 50/60 Hz
Conventional Thermal Current (Ith) 130 A @ 40°C (free air)
Rated Insulation Voltage 1000 V
Impulse Withstand Voltage 8 kV
Number of Main Contacts NO 3
Number of Main Contacts NC 0
Auxiliary Contacts 2 NO + 2 NC

Current Ratings

Category Conditions Value
AC-1 690V, 40°C 130 A
AC-1 690V, 60°C 105 A
AC-3 380/400V, 55°C 96 A
AC-3 440V, 55°C 96 A
AC-3 500V, 55°C 84 A
AC-3 690V, 55°C 60 A
UL/CSA General Use 600V AC 115 A

Power Ratings (AC-3)

Voltage Power
220/230/240 V 24.8 kW
380/400 V 45 kW
415 V 46.7 kW
440 V 49.5 kW
500 V 56.2 kW
690 V 77.6 kW

Mechanical Data

Parameter Value
Dimensions (W×D×H) 70 × 116 × 126 mm
Net Weight 1.22 kg
Terminal Type Screw Terminals
Main Connection Rigid 6...70 mm² / Flexible 6...50 mm²
Max Operating Altitude 3000 m
Degree of Protection IP20 / IP10 (main terminals)
Mounting DIN rail (35mm) or screw

Applications & Features

Typical Applications

  • 3-phase motor control and starting
  • Motor reversing and star-delta starting
  • Capacitor switching for power factor correction
  • Lighting circuit control
  • Heating and resistive load switching
  • Bypass circuits for soft starters and VFDs
  • Industrial automation and process control

Key Features

  • Wide Voltage Range: 24...60 V AC / 20...60 V DC — one coil covers multiple global voltages
  • AC/DC Universal: Single coil for both AC and DC operation
  • Built-in Surge Suppression: No additional suppressors required
  • Reliable Operation: Distinct closing and opening, noise-free
  • Voltage Dip Tolerance: Withstands supply interruptions ≤ 20ms
  • 80% Lower Energy: Reduced coil holding consumption vs conventional contactors
AF Technology: ABB AF contactors feature an integrated electronic coil interface that accepts a wide control voltage range. Only 4 coil variants cover voltages from 24V to 500V AC/DC, dramatically reducing inventory requirements. The built-in surge suppression eliminates the need for external suppressors, saving space and cost.

Compliance & Approvals

Standard Details
IEC / EN Standards IEC/EN 60947-1, IEC/EN 60947-4-1
UL Listed UL 508
CSA Certified CSA C22.2 No. 14
RoHS Compliant per EU Directive 2011/65/EU
Marine / Railway IEC 60077, EN 50155, IEC 61373 (as applicable)
Climatic Withstand Category B per IEC 60947-1 Annex Q
Operating Temperature -40°C to +70°C (without O/L relay) / -25°C to +60°C (with O/L relay)
Max Switching Freq. AC-3: 1200 cycles/hr | Mechanical: 3600 cycles/hr

ABB AF96-30-22 | Order Code: 1SBL407082R1322

Product specifications sourced from ABB official catalog data. Contact us for custom configurations and volume pricing.

Frequently Asked Questions

Q: What is the warranty for ABB 1SBL407082R1322?

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Q: How fast can you ship 1SBL407082R1322?

A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).

Q: Is 1SBL407082R1322 compatible with ABB systems?

A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.

Model Specifications

converted_model 1SBL407082R1322
type_designation AFS96-30-22-13
number_of_poles 3 main NO poles
rated_operating_current_AC3 96 A
rated_power_at_400V 45 kW
auxiliary_contacts 2 NO + 2 NC
coil_control_voltage 100-250 V AC/DC (electronic coil, 50/60 Hz)
mounting DIN rail / screw

Source: datasheet / product page
