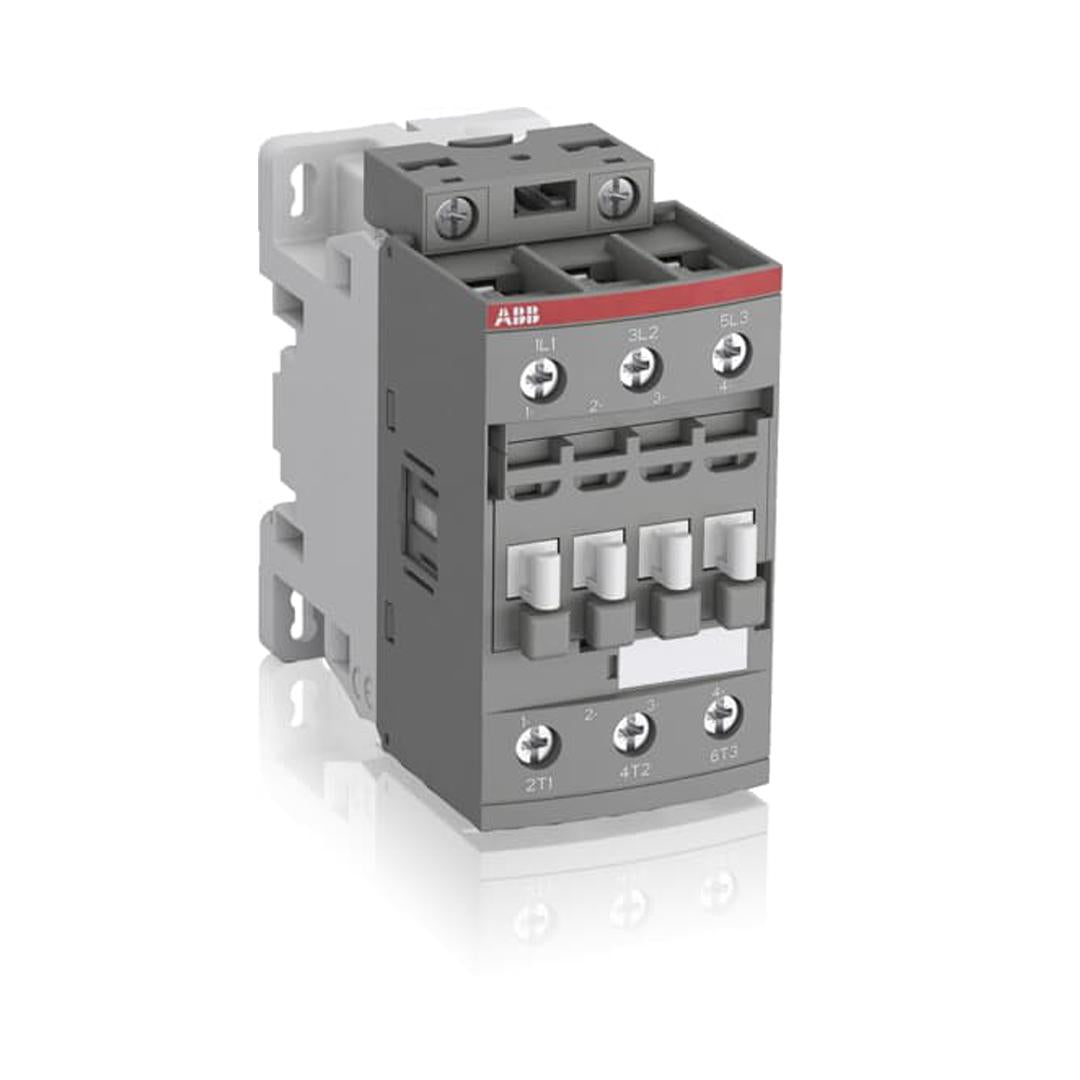

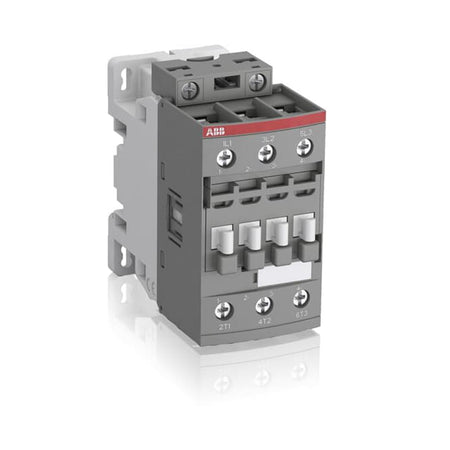

AF26 3-Pole Power Contactor
| General | |
|---|---|
| Product Type | 3-Pole Power Contactor |
| Model Designation | AF26-30-00 |
| Number of Main Poles | 3 (3 NO) |
| Auxiliary Contacts (built-in) | None |
| Terminal Type | Screw Terminals |
| Electrical Ratings | |
| Rated Operational Current AC-3 (400 V) | 26 A |
| Rated Operational Current AC-3 (230 V) | 26 A |
| Rated Operational Current AC-1 (690 V) | 45 A |
| Rated Operational Power AC-3 (400 V) | 11 kW |
| Horsepower Rating UL/CSA (480 V) | 15 hp |
| Rated Operational Voltage (Main) | 690 V AC / 220 V DC |
| Rated Insulation Voltage (Ui) | 690 V (IEC) / 600 V (UL/CSA) |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Coil | |
| Rated Control Circuit Voltage (Uc) | 220-230 V 50Hz / 230-240 V 60Hz |
| Coil Technology | Electronic (AF) — AC/DC wide range |
| Physical | |
| Dimensions (W × H × D) | 45 × 92.3 × 96 mm |
| Weight | 0.45 kg |
| Degree of Protection | IP20 |
| Mounting | DIN Rail (TH35-15) or Screw Mounting |
| Operating Temperature | -40 ... +70 °C (compensated: -25 ... +60 °C with O/L relay) |
| Utilization Categories | |
| Max Electrical Switching Freq. AC-3 | 1200 cycles/hour |
| Max Electrical Switching Freq. AC-1 | 600 cycles/hour |
| Mechanical Switching Frequency | 3600 cycles/hour |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 |
| RoHS | Compliant (EU Directive 2011/65/EU) |
| UL/CSA | Listed — cURus |
| CE Marking | Yes — Low Voltage Directive |
| Marine Approvals | ABS, DNV, Lloyd's Register, RINA |
| Condition | New Surplus Packaging |
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | 1SBL181201R8000 |
| product_name | A16-40-00-80 |
| number_of_poles | 4P |
| rated_operational_voltage | 690 V main circuit (IEC) |
| conventional_free_air_thermal_current_Ith_AC1 | 30 A |
| coil_control_voltage_Uc | 220-230 V 50 Hz / 230-240 V 60 Hz AC |
| auxiliary_contacts | None |
| terminal_type | Screw terminals |
| standards | IEC/EN 60947-1, IEC/EN 60947-4-1 |
Source: datasheet / product page
