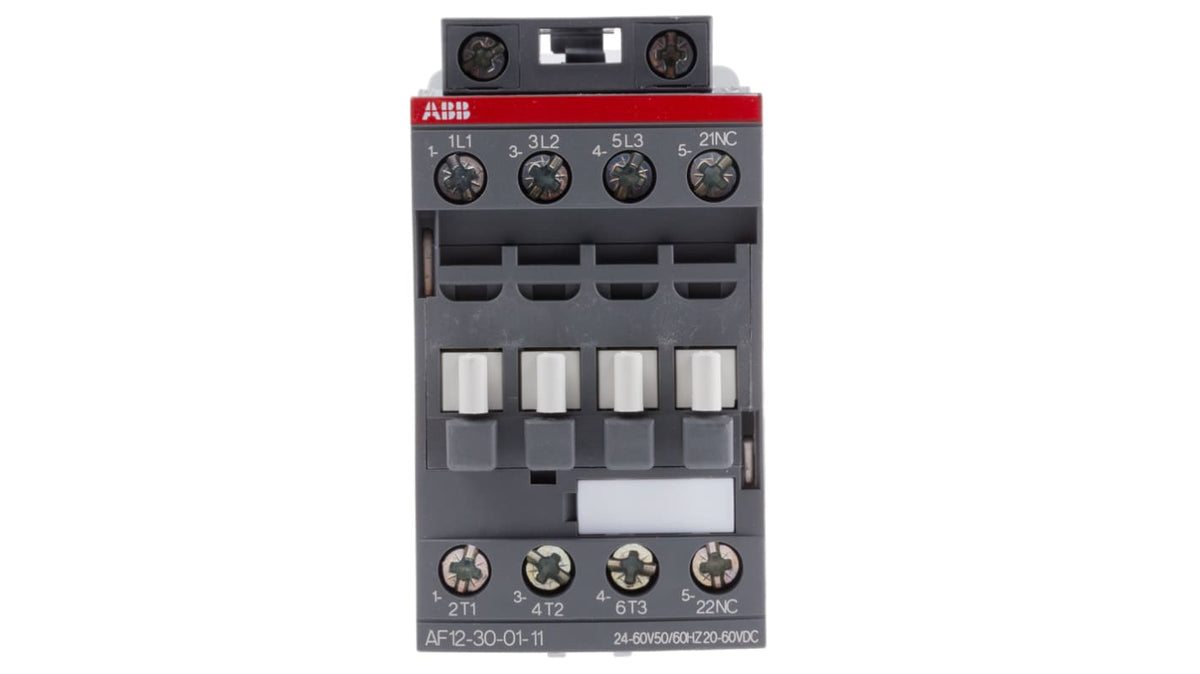

AF Series 3-Pole Block Contactor - 12A (AC-3) / 28A (AC-1) - Wide Coil 24-60V AC/DC
| Parameter | Value |
|---|---|
| Product Model | AF12-30-01-11 |
| Product Range | AF Series |
| Number of Poles | 3 (Main) + 1 NC (Auxiliary) |
| Contact Configuration | 3PST-NO |
| Rated Operational Current (AC-3) | 12 A |
| Rated Operational Current (AC-1) | 28 A |
| Switching Power (AC-3) | 5.5 kW at 400V |
| Rated Operational Voltage | 690V AC |
| Rated Insulation Voltage (Ui) | 690V (IEC 60947-4-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Coil Voltage Range | 24-60V AC (50/60Hz) / 20-60V DC |
| Control Circuit Technology | AF (wide-range electronic coil) |
| Max Switching Frequency | 3600 cycles/hour |
| Terminal Type | Screw |
| Mounting | DIN Rail (TH35-15 / TH35-7.5 per IEC 60715) |
| Ambient Temperature | -40 to +70 deg C |
| Altitude (without derating) | 3000 m |
| Degree of Protection | IP20 (terminals) |
| Weight | 0.29 kg |
| Surge Protection | Built-in |
| Standard | IEC/EN 60947-1, IEC/EN 60947-4-1 |
|---|---|
| UL/CSA | UL 508, CSA C22.2 No. 14 |
| RoHS | Compliant |
SHLY-PLC is an independent industrial-automation distributor. Brand names and trademarks are the property of their respective owners and are used for identification and compatibility reference only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Estimated delivery: 5-8 business days to the United States and Canada. Express options available at checkout.
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | 1SBL157001R1101 |
| type_designation | AF12-30-01-11 |
| number_of_poles | 3P |
| rated_operational_current_AC3 | 12 A at 400 V |
| rated_power_AC3 | 5.5 kW at 400 V |
| rated_operational_voltage | 690 V main circuit |
| built_in_aux_contacts | 1 NC |
| coil_control_voltage_Uc | 24-60 V 50/60 Hz AC / 20-60 V DC (wide-range electronic coil) |
| terminal_type | Screw |
Source: datasheet / product page
