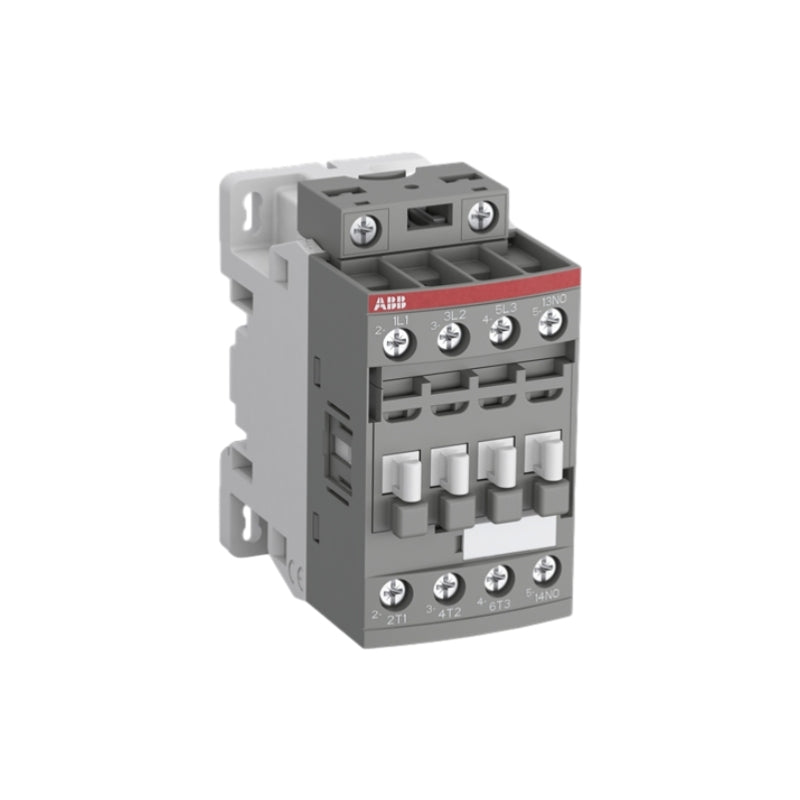

The ABB AF09-30-22-11 is a 3-pole (3 NO) IEC/UL contactor with screw terminals, controlling motors up to 4 kW at 400 V AC (AC-3) and switching power circuits up to 25 A (AC-1). It features AF technology with an electronic coil (24-60 V 50/60Hz / 20-6
| Parameter | Value |
|---|---|
| Parameter | Value |
| Model | AF09-30-22-11 |
| Product Type | 3-Pole Contactor (2-Stack) |
| Number of Poles | 3 |
| Main Contact Configuration | 3 NO |
| Number of Auxiliary Contacts | 2 NO + 2 NC |
| Rated Operational Voltage (Ue) | 690 V AC |
| AC-1 Current (40°C) | 25 A |
| AC-3 Current (400V) | 9 A |
| AC-3 Power (400V) | 4 kW |
| Conventional Thermal Current (Ith) | 35 A |
| Control Circuit Voltage (Uc) | 24-60 V 50/60Hz / 20-60 V DC |
| Coil Type | Electronic AC/DC |
| Holding Power | 1.7 W |
| Surge Protection | Built-in |
| PLC Direct Control | No |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency | 50/60 Hz (25-400 Hz) |
| Terminal Type | Screw |
| Mounting | DIN Rail (35mm) / Screw |
| Dimensions (WxHxD) | 45 x 86 x 77 mm |
| Weight | 0.32 kg |
| Operating Temperature | -40 to +70 °C |
| Storage Temperature | -60 to +80 °C |
| Maximum Operating Altitude | 3000 m |
| Degree of Protection | IP20 |
| Mechanical Switching Frequency | 3600 cycles/hour |
| Electrical Switching Frequency (AC-3) | 1200 cycles/hour |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 |
Designed for switching motors, lighting, heating, and other loads in building automation and industrial control systems.
