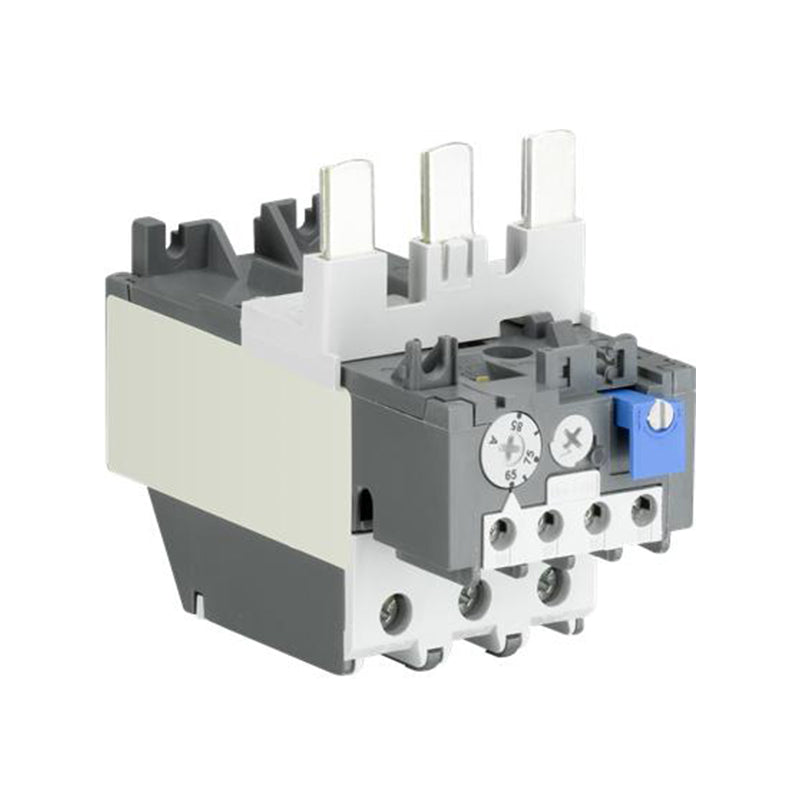

TF96-87 Thermal Overload Relay (Bimetallic, Class 10)
| General | |
|---|---|
| Product Type | Thermal Overload Relay (Bimetallic, Class 10) |
| Model Designation | TF96-87 |
| Current Setting Range | 75...87 A |
| Trip Class | 10 (acc. IEC 60947-4-1) |
| Number of Poles | 3 (main) + 1 NC (trip) + 1 NO (signal) |
| Terminal Type | Screw Terminals |
| Reset Method | Automatic or Manual (selectable) |
| Electrical Ratings | |
| Rated Operational Voltage (Main) | 690 V AC (main) / 600 V AC/DC (auxiliary) |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage | 8 kV (main) / 6 kV (auxiliary) |
| Temperature Compensation | -25 ... +60 °C |
| Suitable for Mounting On | AF80, AF96 |
| Physical | |
| Weight | 0.52 kg |
| Degree of Protection | IP20 |
| Mounting | Direct mount on AF contactor or DIN rail with mounting kit |
| Operating Temperature | -40 ... +70 °C (compensated: -25 ... +60 °C) |
| Storage Temperature | -50 ... +80 °C |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1 |
| RoHS | Compliant (EU Directive 2011/65/EU) |
| UL/CSA | Listed — cURus |
| CE Marking | Yes — Low Voltage Directive & EMC Directive |
| Marine | ABS, DNV, Lloyd's Register, RINA |
| Condition | New Surplus Packaging |
