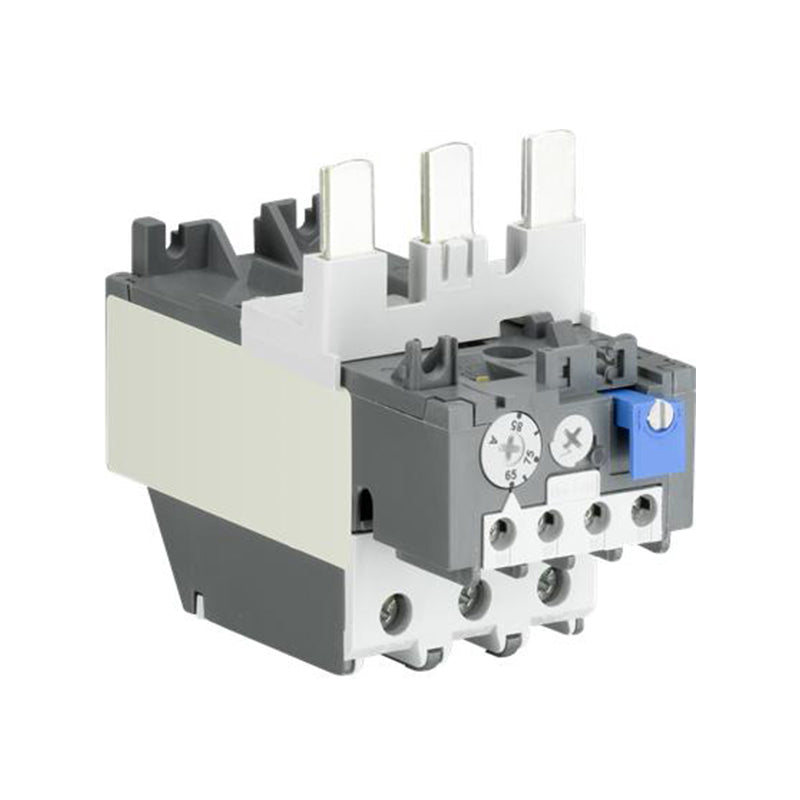

Thermal Overload Relay
ABB TA200DU-30 thermal overload relay with 25.0...32.0 A range. For use with AF series contactors.
| Order Code | 1SAZ721201R1031 |
| Product Model | TA200DU-30 |
| Product Family | TA200DU (AF series) |
| Current Setting Range | 25.0...32.0 A |
| Rated Operational Current | 32.0 A |
| Rated Operational Voltage | 690 V AC |
| Trip Class | 10A |
| Number of Poles | 3 |
| Net Width | 104 mm |
| Net Weight | 1.1 kg |
| Auxiliary Contacts | 1NO + 1NC |
| Suitable For | AF contactors |
| Ambient Temperature | -25 ... +55 °C |
| Degree of Protection | IP20 |
| Mounting | DIN rail (EN 60715 TH35-15) |
| Standards | IEC/EN 60947-4-1, IEC/EN 60947-2, IEC/EN 60947-1, UL 508, CSA 22.2 No. 14 |
CE compliant · RoHS · IEC/EN 60947 · UL Listed (where applicable) · CSA Certified
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).
A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.
| converted_model | 1SAZ721201R1031 |
| type | TF42-2.3 |
| setting_range_A | 1.70 ... 2.30 A |
| rated_operational_voltage_main | 690 V AC |
| number_of_poles | 3P |
| trip_class | 10 |
| auxiliary_contacts | 1 NO + 1 NC |
| reset | Automatic / manual selectable |
| suitable_for_contactor | AF09...AF38 block contactors |
Source: datasheet / product page
