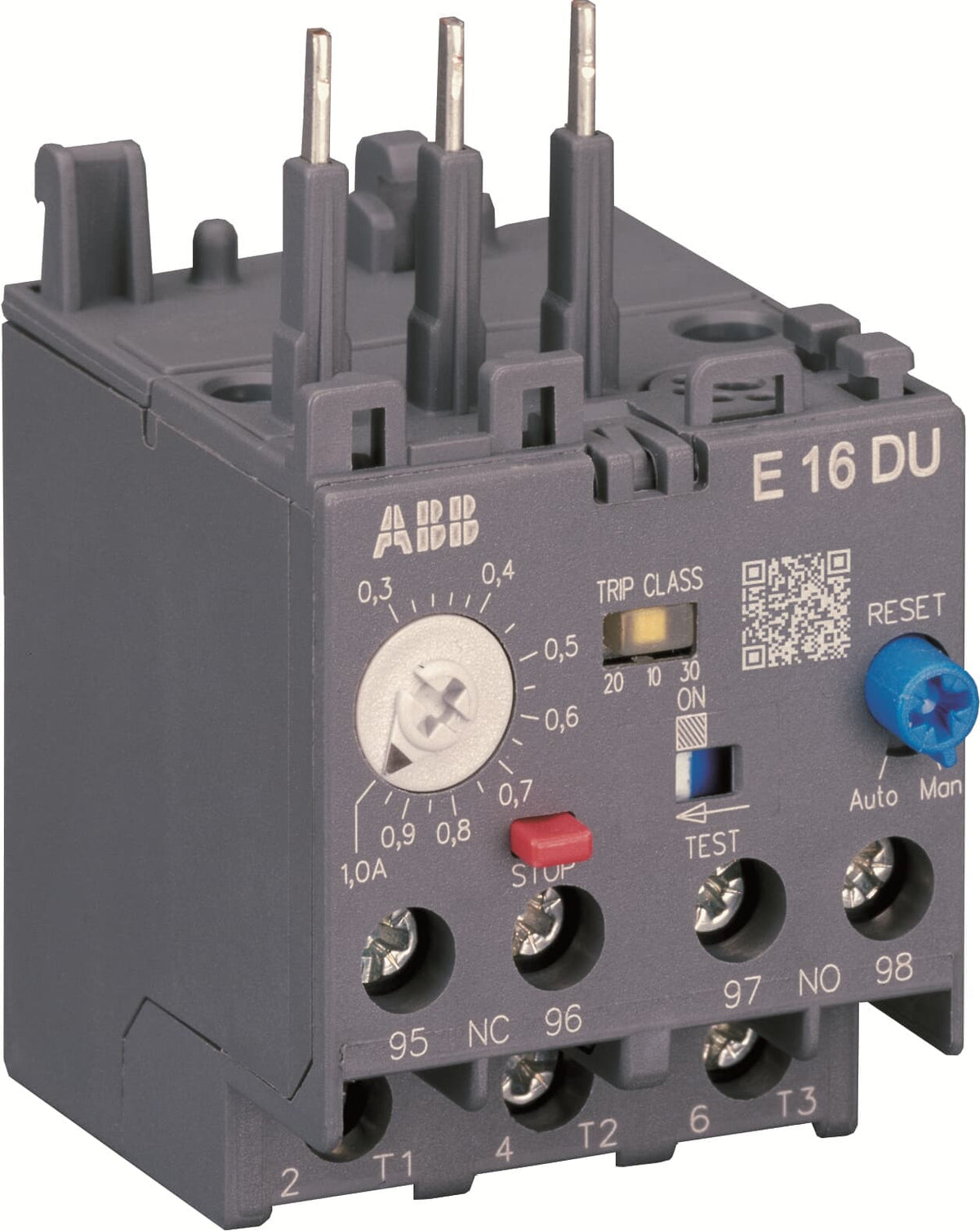

ABB 1SAX611001R1101 Electronic Overload Relay
ABB 1SAX611001R1101 Electronic Overload Relay

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB 1SAX611001R1101 Electronic Overload Relay

SKU: 1SAX611001R1101
(0)
$251.13
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
E320DU

1SAX611001R1101 — E320DU-320

Electronic Overload Relay

ABB E320DU-320 electronic overload relay with 100...320 A range. Self-supplied, class 10E/20E/30E. Ui = 1000 V. For A210-A300/AF210-AF300 contactors.

Key Ratings at a Glance

Setting Range
100...320 A
Rated Current
320 A
Rated Power @400V
160 kW
Rated Voltage
690 V AC
Trip Class
10E/20E/30E
Width
130 mm
Compatible With
A210...A300 / AF210...AF300
Degree of Protection
IP20

Technical Specifications

Order Code 1SAX611001R1101
Product Model E320DU-320
Product Family E320DU
Current Setting Range 100...320 A
Rated Operational Current 320 A
Motor Power @400V AC-3 160 kW
Rated Operational Voltage 690 V AC
Trip Class 10E/20E/30E
Number of Poles 3
Net Width 130 mm
Net Weight 1.3 kg
Auxiliary Contacts 1NO + 1NC
Suitable For A210...A300 / AF210...AF300
Ambient Temperature -25 ... +70 °C
Degree of Protection IP20
Mounting DIN rail (EN 60715 TH35-15)
Standards IEC/EN 60947-4-1, UL 508, CSA 22.2 No. 14

Key Features

  • Class 10E / 20E / 30E selectable trip class
  • Self-supplied — no external power supply needed
  • Electronic current measurement with wide setting range
  • Temperature compensated up to +70 °C ambient
  • Phase loss and phase asymmetry protection
  • Sealable cover for tamper protection
  • Direct clip-on mounting on compatible contactors
  • Ui = 1000 V rated insulation

Applications

  • Precision electronic motor overload protection
  • Pump and compressor motor circuits
  • Critical industrial motor applications requiring adjustable trip class
  • Applications with varying ambient temperatures
  • Very large motor circuits up to 160 kW

Compliance & Approvals

CE compliant · RoHS · IEC/EN 60947 · UL Listed (where applicable) · CSA Certified

Frequently Asked Questions

Q: What is the warranty for ABB 1SAX611001R1101?

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Q: How fast can you ship 1SAX611001R1101?

A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).

Q: Is 1SAX611001R1101 compatible with ABB systems?

A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.

Model Specifications

converted_model 1SAX611001R1101
type EF370-380
setting_range 115-380 A
trip_class 10/20/30
compatible_contactors AF265-AF370

Source: datasheet / product page
