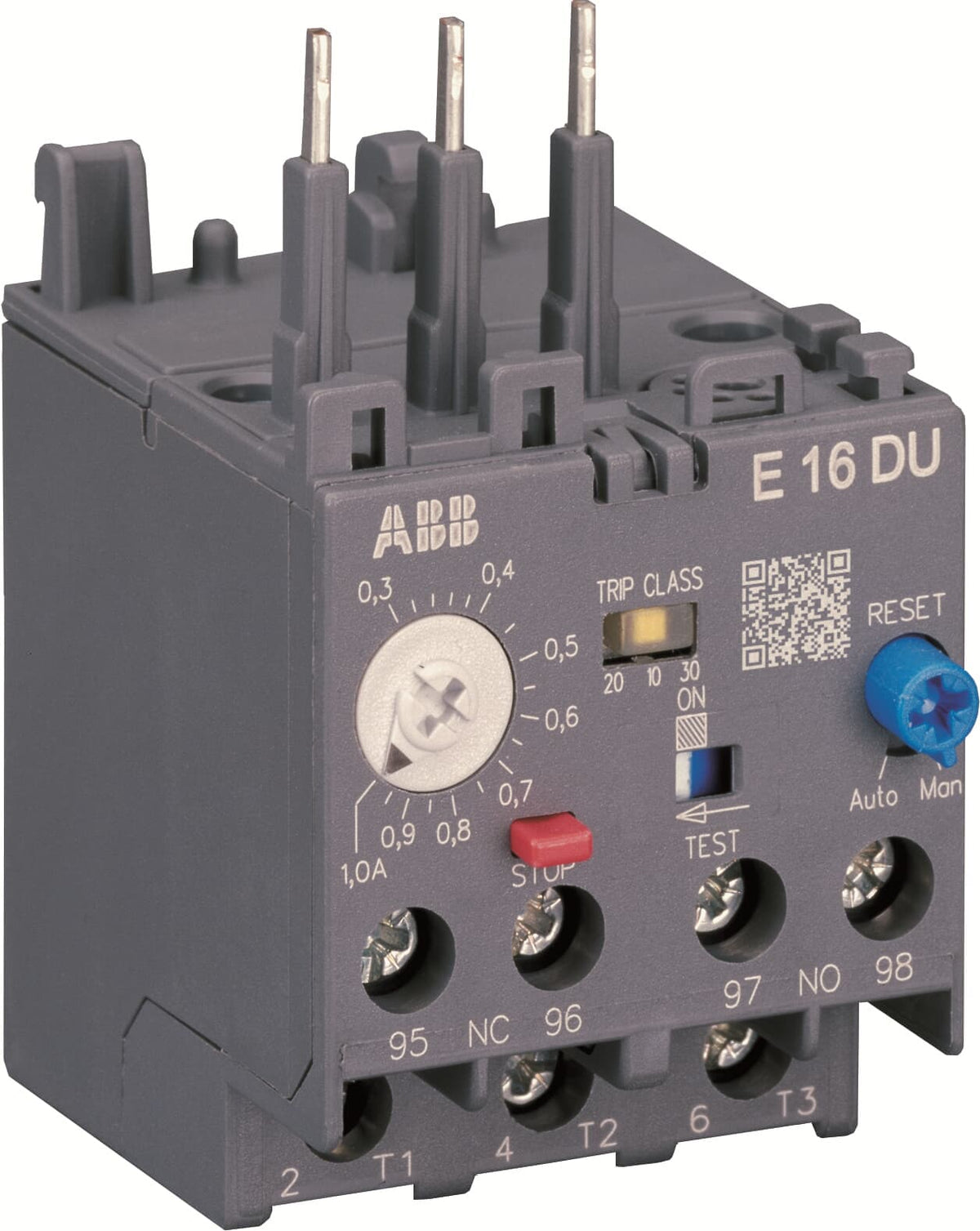

ABB 1SAX111001R1105 Electronic Overload Relay
ABB 1SAX111001R1105 Electronic Overload Relay

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB 1SAX111001R1105 Electronic Overload Relay

SKU: 1SAX111001R1105
(0)
$109.89
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
E16DU

1SAX111001R1105 — E16DU-18.9

Electronic Overload Relay

ABB E16DU-18.9 electronic overload relay with 5.7...18.9 A setting range. Self-supplied, no external power needed. Class 10E/20E/30E selectable trip. Clip-on mounting for B6/A9/A12/A16 contactors.

Key Ratings at a Glance

Setting Range
5.7...18.9 A
Rated Current
18.9 A
Rated Voltage
690 V AC
Trip Class
10E/20E/30E
Width
44.4 mm
Compatible With
B6/B7/A9/A12/A16

Technical Specifications

Order Code 1SAX111001R1105
Product Model E16DU-18.9
Product Family E16DU
Current Setting Range 5.7...18.9 A
Rated Operational Current 18.9 A
Rated Operational Voltage 690 V AC
Trip Class 10E/20E/30E
Number of Poles 3
Net Width 44.4 mm
Net Weight 0.16 kg
Auxiliary Contacts 1NO + 1NC
Suitable For B6/B7/A9/A12/A16
Ambient Temperature -25 ... +70 °C
Degree of Protection IP20
Mounting DIN rail (EN 60715 TH35-15)
Standards IEC/EN 60947-4-1, UL 508, CSA 22.2 No. 14

Key Features

  • Class 10E / 20E / 30E selectable trip class
  • Self-supplied — no external power supply needed
  • Electronic current measurement with wide setting range
  • Temperature compensated up to +70 °C ambient
  • Phase loss and phase asymmetry protection
  • Sealable cover for tamper protection
  • Direct clip-on mounting on compatible contactors

Applications

  • Precision electronic motor overload protection
  • Pump and compressor motor circuits
  • Critical industrial motor applications requiring adjustable trip class
  • Applications with varying ambient temperatures

Compliance & Approvals

CE compliant · RoHS · IEC/EN 60947 · UL Listed (where applicable) · CSA Certified

Frequently Asked Questions

Q: What is the warranty for ABB 1SAX111001R1105?

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Q: How fast can you ship 1SAX111001R1105?

A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).

Q: Is 1SAX111001R1105 compatible with ABB systems?

A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.

Model Specifications

converted_model 1SAX111001R1105
type E16DU-18.9
setting_range up to 18.9 A
trip_class adjustable
compatible_contactors B family contactors

Source: datasheet / product page
