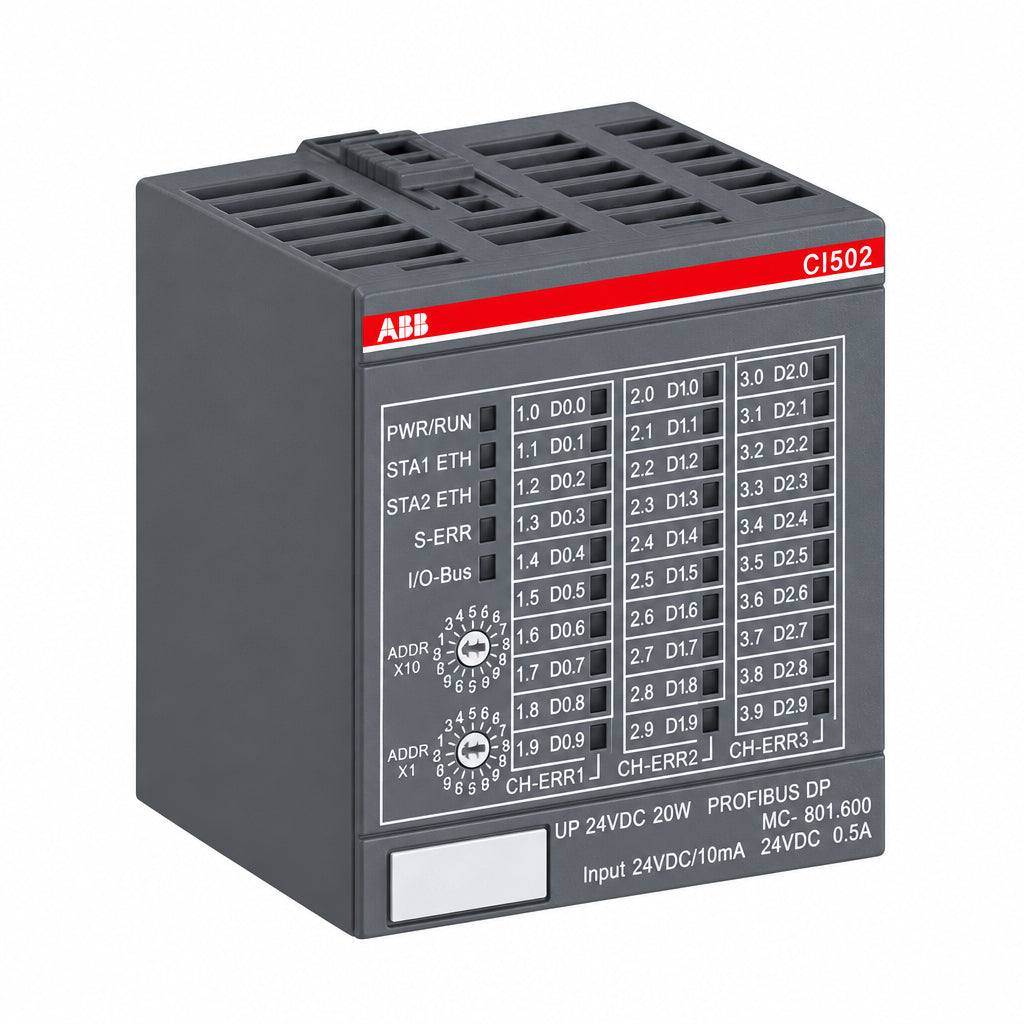

ABB 1SAP220700R0001 Communication Module
ABB 1SAP220700R0001 Communication Module

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB 1SAP220700R0001 Communication Module

SKU: 1SAP220700R0001
(0)
$244.19
Available
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

ABB CI502-PNIO 1SAP220700R0001 S500 PROFINET IO RT Interface Bus Module

The ABB CI502-PNIO 1SAP220700R0001 is S500 series PROFINET IO RT device bus interface module for ABB AC500 PLC system. It comes with integrated digital I/O and supports expansion of up to 10 extra S500 I/O modules for distributed PROFINET automation stations.

Key Features

  • PROFINET IO RT device interface, S500 remote bus module
  • Built-in I/O: 8DI / 8DO / 8 configurable DI/DO (24VDC)
  • Expandable: supports up to 10 additional S500 I/O modules
  • 2 × RJ45 PROFINET port (switch, daisy chain topology)
  • Module, bus and channel diagnostic LED indicators
  • Hot-swap capability on S500 backplane
  • DIN rail mounting, natural convection cooling
  • IP20 protection rating for cabinet installation

Technical Specifications (Official ABB Datasheet)

Order Code 1SAP220700R0001
Model CI502-PNIO
Module Type PROFINET IO RT Bus Interface Module with integrated I/O
Fieldbus Protocol PROFINET IO RT (Device)
Ethernet Ports 2 × RJ45, integrated switch, 100 Mbps
Integrated Digital Inputs 8 DI, 24 VDC
Integrated Digital Outputs 8 DO, 24 VDC, 0.5A per channel
Configurable DI/DO Channels 8 DC, 24 VDC, 0.5A per channel
Max Expandable I/O Modules Up to 10 pcs S500 I/O modules
Module Supply Voltage 24 V DC (20.4 ~ 28.8 V DC)
Operating Temp (Horizontal Mount) 0 °C ~ +60 °C
Operating Temp (Vertical Mount) 0 °C ~ +40 °C, derating required
Storage / Transport Temperature -40 °C ~ +70 °C
Relative Humidity 5% to 95% non-condensing
Protection Class IP20
Mounting Standard DIN rail EN 60715
Net Weight 0.13 kg
HS Code 85369095

Applications

Distributed factory automation, packaging machinery, conveyor systems, material handling, PROFINET IO remote I/O stations for ABB AC500 PLC.

FAQ

Q: What is CI502-PNIO used for?
A: CI502-PNIO is S500 PROFINET IO remote bus module with built-in digital I/O for AC500 PLC.

Q: How many extra I/O modules can be connected?
A: It can be expanded with maximum 10 additional S500 I/O modules.

Q: What is the communication speed?
A: 100 Mbps PROFINET RT real-time communication.

Warranty

12-month seller warranty provided by SHLY-PLC.

Model Specifications

converted_model 1SAP220700R0001
abb_type CI502-PNIO
bus PROFINET IO RT device
digital_inputs 8 DI 24VDC
digital_outputs 8 DO 24VDC 0.5 A
configurable_channels 8 configurable DI/DO 24VDC 0.5 A

Source: datasheet / product page
