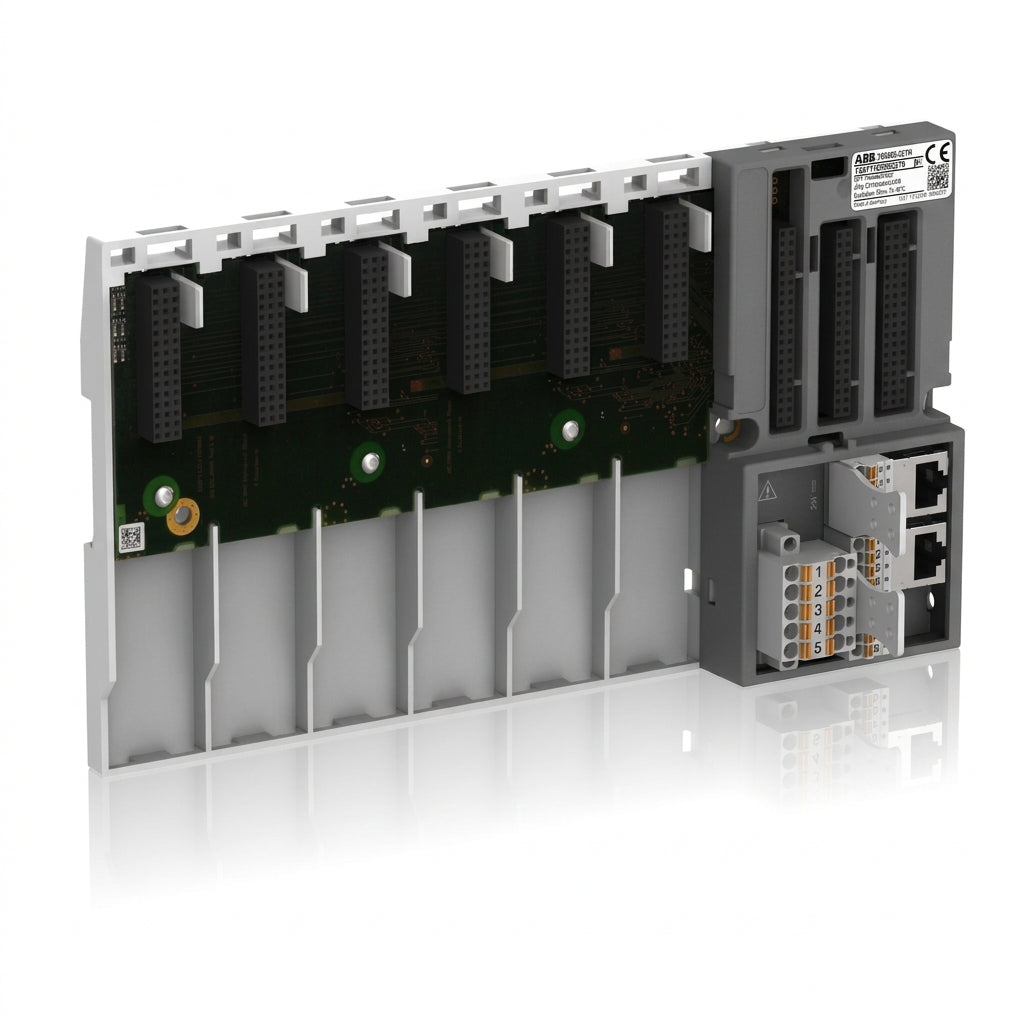

ABB TB5660-2ETH 1SAP116300R0278
ABB TB5660-2ETH 1SAP116300R0278

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB 1SAP116300R0278 TB5660-2ETH Terminal Base

SKU: 1SAP116300R0278
(0)
$690.62
Available
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

ABB 1SAP116300R0278 TB5660-2ETH Terminal Base for AC500 V3, 6 Communication Slots, 2 Ethernet + RS-232/485 + CAN

The ABB 1SAP116300R0278 is the TB5660-2ETH terminal base for the ABB AC500 V3 PLC family. It provides 6 slots for communication modules (or AC500-S modules), plus 2 Ethernet interfaces, 1 serial interface and 1 CAN interface. It accepts one processor module and is designed for high-performance multi-communication AC500 systems. Powered at 24V DC with max current consumption of 0.8 A. Technical data sourced from official ABB AC500 documentation. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit is visually inspected and functionally checked before shipment.

Key Features

  • Order Code: 1SAP116300R0278
  • Model: TB5660-2ETH Terminal Base
  • Product Family: ABB AC500 V3 PLC
  • Communication Slots: 6 (for communication or AC500-S modules)
  • Interfaces: 2 Ethernet RJ45 + 1 RS-232/485 (COM1) + 1 CAN
  • Processor Slot: 1
  • Supply Voltage: 24V DC
  • Max Current Consumption: 0.8 A @24V DC
  • Net Weight: 310 g
  • Lifecycle: Active

Technical Specifications

Official ABB AC500 Technical Data (TB5660-2ETH / 1SAP116300R0278)

Technical Specifications
Order Code 1SAP116300R0278
Model TB5660-2ETH Terminal Base
Product Family ABB AC500 PLC (V3)
Number of Processor Slots 1
Communication Module Slots 6
Processor Module Interfaces I/O bus, ETH1, ETH2, CAN, COM1
Ethernet 2 × RJ45 (ETH1, ETH2)
Serial Interface 1 × RS-232/485 (COM1)
CAN Interface 1 × CAN
Supply Voltage 24V DC (removable 5-pin spring terminal block)
Max Current Consumption 0.8 A @24V DC (incl. CPU, comm modules, I/O bus supply)
Peak Inrush Current 55 A (melting integral min 1 A²s)
Net Weight (w/o processor) 310 g
Mounting Position Horizontal or vertical
EAN 4013614508974
Reference Documents
Technical Data TB56xx Technical Data (ABB)
Model note: TB5660-2ETH is the largest standard terminal base with 6 communication-module slots. Only one AC500-S module can be connected per terminal base. Compatible processor modules: PM5670 / PM5675 (with order no. 1SAP151000R0378 / 1SAP151500R0378 or production index ≥ C0) and PM5685. PM5680 is not listed for TB5660 — use TB5640-2ETH for PM5680.

Compatibility & Cross-References

TB5660-2ETH accepts PM5670 / PM5675 / PM5685 processor modules and up to 6 communication modules (CM57x, CM58x, CM579-ETHCAT, etc.) or AC500-S modules. This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.

Applications

  • High-performance AC500 PLC with up to 6 communication modules
  • Multi-protocol machine and process automation
  • Ethernet + serial + CAN connectivity in a single base
  • Replacement / spare terminal base for AC500 systems

Warranty & Shipping

  • Availability: Active model; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery about 5-8 business days, express available, free shipping over $500.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ABB part 1SAP116300R0278 (TB5660-2ETH) is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is 1SAP116300R0278?

A: ABB TB5660-2ETH terminal base for AC500 V3, 6 communication slots, 2 Ethernet + RS-232/485 + CAN, 24V DC.

Q: How many communication modules can it hold?

A: Up to 6 communication modules or AC500-S modules (only one AC500-S per base).

Q: Which processor modules are compatible?

A: PM5670, PM5675 and PM5685 (PM5680 uses TB5640-2ETH instead).

Q: What is the max current consumption?

A: 0.8 A @24V DC (including CPU, communication modules and I/O bus supply).
