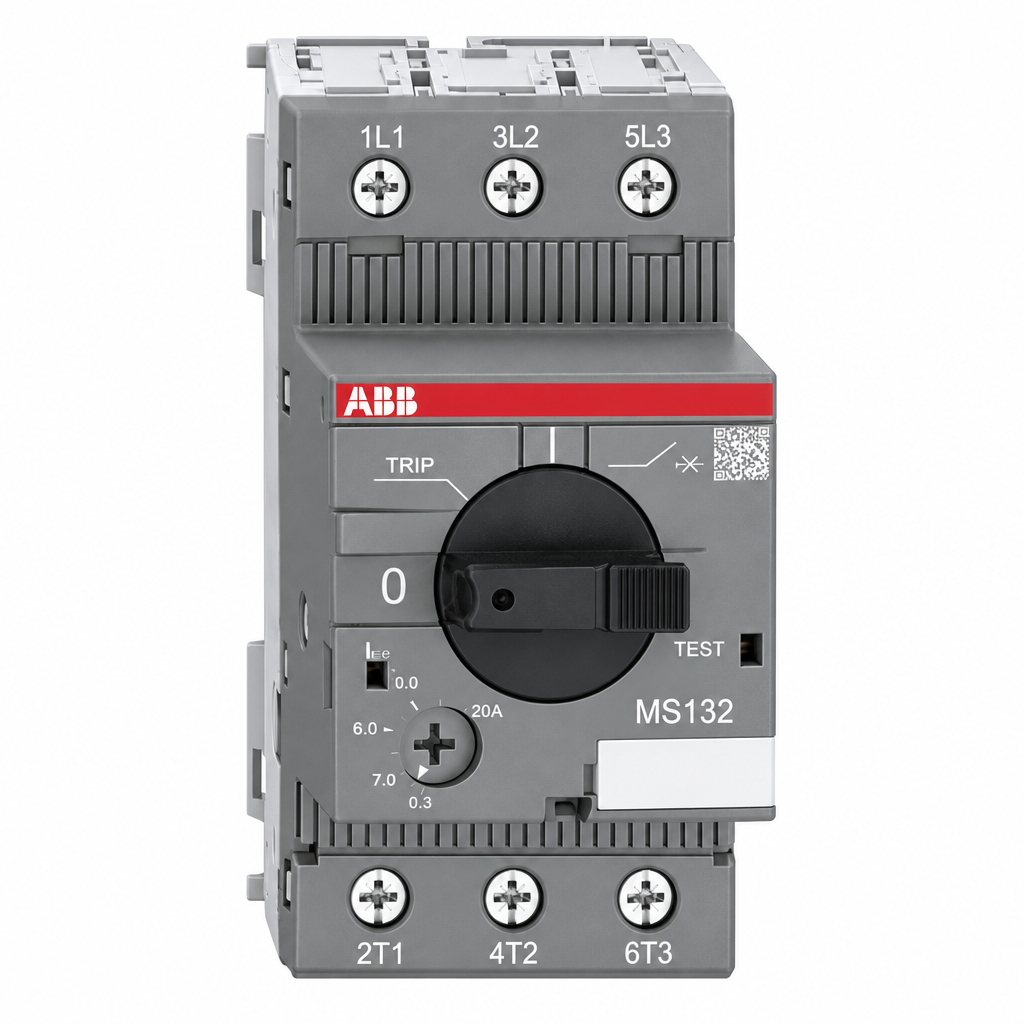

ABB 1SAM201901R1001 Manual Motor Starter
ABB 1SAM201901R1001 Manual Motor Starter

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB 1SAM201901R1001 Manual Motor Starter

SKU: 1SAM201901R1001
(0)
$69.00
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
Manual Motor Starters

1SAM201901R1001

3-Pole Manual Motor Starter — 0.1...0.16 A Setting Range — 100 kA @ 400V

0.1...0.16 A 0.03 kW @ 400V 100 kA @ 400V 3P

Key Ratings at a Glance

Setting Range
0.1...0.16 A
Motor Power
0.03 kW
Breaking Capacity
100 kA @ 400V
Series
MS132

Technical Specifications

Parameter Value
Product Type Manual Motor Starter
Model MS132-0.16
Current Setting Range 0.1...0.16 A
Rated Operational Current (Ie) 0.16 A
Motor Power (AC-3, 400V) 0.03 kW
Number of Poles 3
Short-Circuit Breaking Capacity (Ics) @ 400V 100 kA
Rated Operational Voltage 690 V AC
Rated Insulation Voltage (Ui) 690 V
Rated Impulse Withstand (Uimp) 6 kV
Frequency 50/60 Hz
Trip Class 10 (MS116) / 10 (MS132)
Dimensions (W×D×H) 45 × 86.75 × 90 mm
Weight 0.265 kg
Terminal Type Screw
Mounting DIN Rail (TH35-15 / TH35-7.5)
Degree of Protection IP20 (housing) / IP10 (terminals)
Ambient Temperature -25...+55 °C
Standards IEC/EN 60947-2, IEC/EN 60947-4-1

Applications & Features

Applications

  • Direct-on-line motor starting and protection
  • Protection against overload, short-circuit, and phase failure
  • Industrial motor control panels
  • Machine tool and conveyor motor protection
  • Pump and fan motor control

Features

  • Compact 45mm width — saves panel space
  • Built-in disconnect function for safe maintenance
  • Temperature-compensated thermal protection
  • Trip-free mechanism for reliable operation
  • Clear rotary handle with ON/OFF indication
  • Lockable handle for LOTO safety
  • Expandable with auxiliary contacts, shunt trips, and enclosures

Compliance & Approvals

CE Marking Yes — Low Voltage Directive 2014/35/EU
RoHS Compliant — Directive 2011/65/EU
UL/cUL Listed (applicable standards)
IEC Standards IEC/EN 60947 series
Marine Approvals ABS, DNV, LR, BV, RINA (where applicable)

Frequently Asked Questions

Q: What is the warranty for ABB MS132-0.16 Manual Motor Starter 0.1...0.16 A?

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Q: How fast can you ship MS132-0.16 Manual Motor Starter 0.1...0.16 A?

A: Orders are processed within 2-4 business days after payment confirmation. Standard delivery: 5-8 business days to the United States and Canada. Express available (2–4 business days).

Q: Is MS132-0.16 Manual Motor Starter 0.1...0.16 A compatible with ABB systems?

A: Sold by SHLY-PLC, an independent distributor. New surplus stock; condition and compatibility confirmed on request.

Model Specifications

converted_model 1SAM201901R1001
extended_product_type HKF1-11
contact_configuration 1 NO + 1 NC
mounting Front mounting
rated_thermal_current_A 1.5
for_use_with MS116 / MS132 / MS165

Source: datasheet / product page
