Product Type: Industrial Automation Component
| Article number | 3SB6166-0DB40-1BA0 |
| product brand name | SIRIUS |
| product category | Commanding and signaling devices |

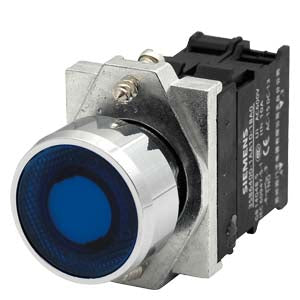

| product designation | Illuminated pushbutton |
| design of the product | Complete unit |
| product type designation | 3SB6 |
| product line | Metal, shiny, 22 mm |
| number of command points | 1 |
| principle of operation of the actuating element | momentary |
| product extension optional light source | No |
| color of the actuating element | green |
| shape of the actuating element | round |
| product component front ring | No |
| material of the front ring | metal |
| color of the front ring | chrome |
| product component light source | No |
| protection class IP | IP65 |
| shock resistance according to IEC 60068-2-27 | 5 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| mechanical service life (operating cycles) typical | 3 000 000 |
| electrical endurance (operating cycles) typical | 3 000 000 |
| Substance Prohibitance (day/month/year) | 03/01/2017 |
| Net Weight | 87.2 g |
| type of voltage | AC/DC |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 1 |
| number of CO contacts for auxiliary contacts | 0 |
| ● during operation | -25 ... +70 °C |
| ● during storage | -40 ... +80 °C |
| mounting diameter | 22 mm |
| mounting height | 46.5 mm |
| installation width | 30 mm |
| Environmental Confirmations | Yes |
| CCC | Yes |
| TUEV | Yes |
| EAC | Yes |
| UK Declaration of Conformity | Yes |
| EU declaration of conformity | Yes |
| Confirmation | Yes |
| Chinese Quality Checkmark | Yes |
| last modified: | 4/4/2026 |
| Date8/1/2026 | Subject to change without notice© Copyright Siemens 2026 |
This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
