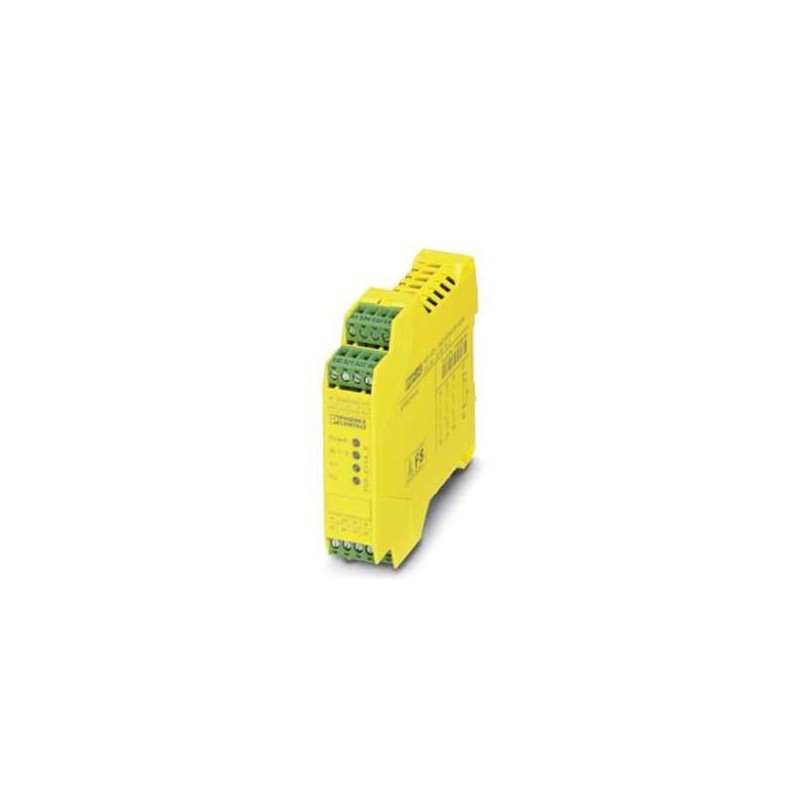

Phoenix Contact · Safety Relay
2963941 is a Phoenix Contact industrial component with Supply voltage 24 V DC -15 % / +10 %; Enclosure rating IP20 (IEC 60529); Operating temperature -25...+60 °C (IEC 60068-2-1). It is used in control panels, machine builds, spare-part replacements where the installed unit is matched to the original catalog number and a compact, documented part is required.
| Electrical | |
| Rated insulation voltage Ui | 690 V (IEC 60947-4-1) |
|---|---|
| Rated impulse withstand Uimp | 6 kV (IEC 60947-4-1) |
| Tripping characteristic | 8 mm |
| Supply voltage | 24 V DC -15 % / +10 % |
| Input voltage range | 0 V DC ... 5 V DC (S12) |
| Power consumption | typ. 1.68 W |
| Frequency | max. 0.5 Hz |
| I/O and communication | |
| Response time | typ. 150 ms (For U s autostart) |
| Safety integrity SIL/PL | 3 |
| Mechanical | |
| Weight | 184 g |
| Mounting | 35 mm DIN rail (IEC 60715) |
| Terminal wire size | 50 Ω |
| Enclosure rating | IP20 (IEC 60529) |
| Environment and compliance | |
| Operating temperature | -25...+60 °C (IEC 60068-2-1) |
| Certifications | CE, UL, cULus |
| Humidity | 75 % (on average, 85% infrequently, non-condensing) |
| Degree of protection | IP54 |
Values follow the Phoenix Contact Safety Relay specification for this catalog number; parameters not confirmed for this variant are omitted rather than estimated.
| Phoenix Contact Safety Relay variants | |||
| Catalog number | Mounting | ||
|---|---|---|---|
| 2963941 (this page) | 35 mm DIN rail (IEC 60715) | ||
| 2963912 | 35 mm DIN rail (IEC 60715) | ||
| 2963925 | 35 mm DIN rail (IEC 60715) | ||
| 2963938 | 35 mm DIN rail (IEC 60715) | ||
Before selecting an alternative, confirm its dimensions, terminals and installation requirements in the manufacturer documentation.
The 2963941 is the device-level element in a Phoenix Contact industrial component installation. It receives the field signals and control supply listed above — 24 V DC -15 % / +10 % — and switches or conditions the load within the the rated ratings shown in the Specifications table. Wiring and protective devices are sized to those same numbers, not to a generic assumption.
Typical installations place it in control panels, machine builds, spare-part replacements, where the unit is matched to the original catalog number and the enclosure provides 35 mm DIN rail (IEC 60715) support. Record the catalog number and revision from the nameplate of the installed unit before specifying a like-for-like spare.
Phoenix Contact 2963941 — Industrial automation component supplied as a like-for-like replacement, selected by catalog number and published ratings. The figures below are taken from the specification table on this page for catalog number 2963941; always cross-check the catalog number and hardware revision on the nameplate before placing an order.
For a discontinued unit, match function and electrical ratings rather than the label alone.
Q.Which value is published under power consumption for catalog number 2963941?
For 2963941, power consumption is given as typ. 1.68 W. Use the value as the reference when sourcing a current-production equivalent.
Q.Before ordering 2963941, which enclosure rating entry should be checked?
The enclosure rating entry quoted above is IP20 (IEC 60529). Check the revision of the installed unit if the catalog number has been superseded.
Q.Where can I find the humidity data for 2963941?
It is listed in the specification table for Phoenix Contact 2963941 as 75 % (on average, 85% infrequently, non-condensing). Compare it with the nameplate of the installed unit before ordering.
Q.What should I include in an enquiry for 2963941?
Send the full catalog number 2963941, the required quantity and a photo of the nameplate. Stock, lead time and the applicable compliance documents can then be confirmed for Phoenix Contact 2963941.
Q.How do I confirm compatibility of 2963941 before ordering?
Match the catalog number 2963941 and the specification values listed above against the installed unit, then confirm the firmware or hardware revision where a revision-sensitive part is involved.
