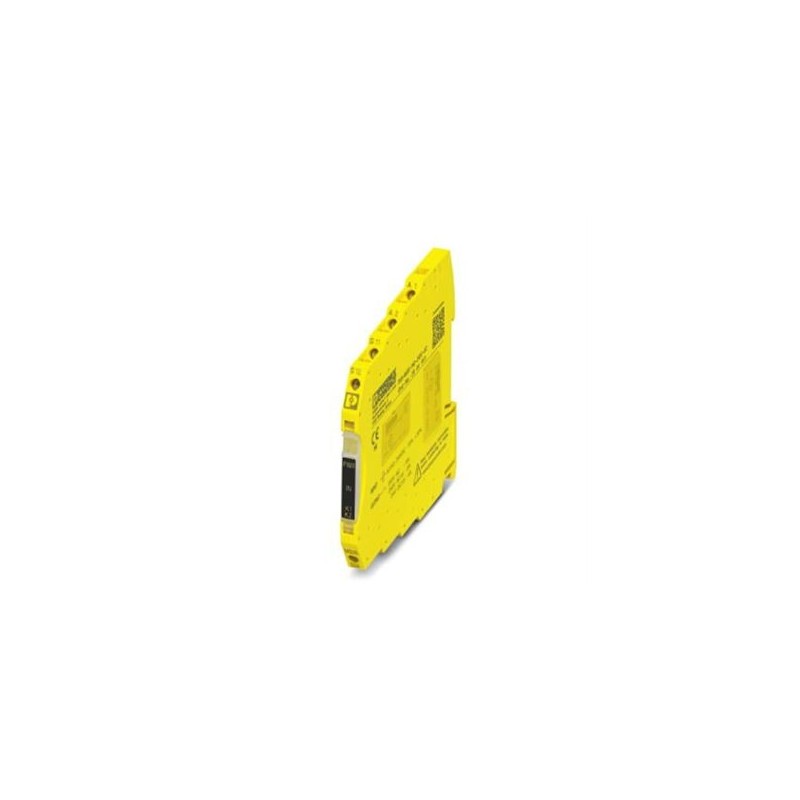

Phoenix Contact · Safety Relay
2904953 is a Phoenix Contact industrial component with Supply voltage 20.4 V DC ... 26.4 V DC; Enclosure rating IP20 (IEC 60529); Operating temperature -25...+60 °C (IEC 60068-2-1). It is used in control panels, machine builds, spare-part replacements where the installed unit is matched to the original catalog number and a compact, documented part is required.
| Electrical | |
| Rated insulation voltage Ui | 690 V (IEC 60947-4-1) |
|---|---|
| Rated impulse withstand Uimp | 6 kV (IEC 60947-4-1) |
| Tripping characteristic | 12 mm |
| Supply voltage | 20.4 V DC ... 26.4 V DC |
| Input voltage range | 0 V DC ... 5 V DC (for safe Off; at S12) |
| Power consumption | typ. 1 W |
| Frequency | max. 0.1 Hz |
| Rated torque | 0.5 Nm ... 0.6 Nm |
| I/O and communication | |
| Safety integrity SIL/PL | 3 |
| Mechanical | |
| Weight | 78 g |
| Mounting | 35 mm DIN rail (IEC 60715) |
| Terminal wire size | 150 Ω |
| Enclosure rating | IP20 (IEC 60529) |
| Environment and compliance | |
| Operating temperature | -25...+60 °C (IEC 60068-2-1) |
| Certifications | CE, UL, cULus |
| Humidity | 75 % (on average, 85% infrequently, non-condensing) |
| Degree of protection | IP54 |
Values follow the Phoenix Contact Safety Relay specification for this catalog number; parameters not confirmed for this variant are omitted rather than estimated.
| Phoenix Contact Safety Relay variants | |||
| Catalog number | Mounting | ||
|---|---|---|---|
| 2904953 (this page) | 35 mm DIN rail (IEC 60715) | ||
| 2904950 | 35 mm DIN rail (IEC 60715) | ||
| 2904951 | 35 mm DIN rail (IEC 60715) | ||
| 2904952 | 35 mm DIN rail (IEC 60715) | ||
Before selecting an alternative, confirm its dimensions, terminals and installation requirements in the manufacturer documentation.
The 2904953 is the device-level element in a Phoenix Contact industrial component installation. It receives the field signals and control supply listed above — 20.4 V DC ... 26.4 V DC — and switches or conditions the load within the the rated ratings shown in the Specifications table. Wiring and protective devices are sized to those same numbers, not to a generic assumption.
Typical installations place it in control panels, machine builds, spare-part replacements, where the unit is matched to the original catalog number and the enclosure provides 35 mm DIN rail (IEC 60715) support. Record the catalog number and revision from the nameplate of the installed unit before specifying a like-for-like spare.
Phoenix Contact 2904953 — Industrial automation component supplied as a like-for-like replacement, selected by catalog number and published ratings. The figures below are taken from the specification table on this page for catalog number 2904953; always cross-check the catalog number and hardware revision on the nameplate before placing an order.
Datasheets and compliance documents are available on request; quote the full catalog number when enquiring.
Q.Where can I find the frequency data for 2904953?
It is listed in the specification table for Phoenix Contact 2904953 as max. 0.1 Hz. Compare it with the nameplate of the installed unit before ordering.
Q.For 2904953, what does the specification table state about weight?
The specification table lists weight = 78 g for Phoenix Contact 2904953. Confirm this figure against the unit currently in the panel.
Q.Which value is published under certifications for catalog number 2904953?
For 2904953, certifications is given as CE, UL, cULus. Use the value as the reference when sourcing a current-production equivalent.
Q.How do I confirm compatibility of 2904953 before ordering?
Match the catalog number 2904953 and the specification values listed above against the installed unit, then confirm the firmware or hardware revision where a revision-sensitive part is involved.
Q.Can the 2904953 replace the unit currently installed in my panel?
Compare catalog number 2904953 and the ratings above with the nameplate of the installed device. A current-production equivalent is selected by function and electrical rating, not by the label alone.
