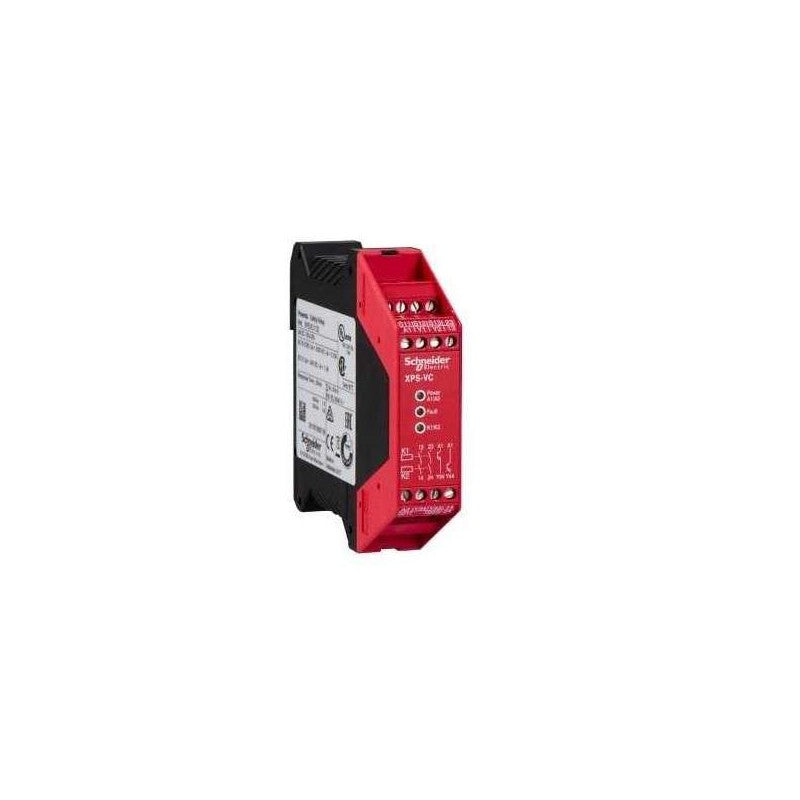

Schneider Electric XPSVC1132P | Safety Device

SKU: XPSVC1132P
(3)
$376.36
-13% $432.81 $376.36
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

XPSVC1132P Schneider Electric - Preventa XPSVC Safety Module, Enabling Switch Monitoring, 24V DC, 2 NO + 2 Solid-State, Removable Terminals. Preventa safety module from the XPSVC series for enabling switch monitoring with manual reset. Features 2 NO relay safety outputs and 2 solid-state outputs for PLC signalling. Achieves PL e/Category 4 safety level with 20ms maximum response time. Equipped with removable terminal blocks and 3 diagnostic LEDs.

  • Brand: Schneider Electric
  • Category: Safety Module
  • Product Type: Preventa Safety Module
  • Range of Product: Preventa Safety automation
  • Safety Module Name: XPSVC
  • Application: Enabling switch monitoring
  • Function: Switch monitoring
  • Safety Level: PL e / Category 4 (EN/ISO 13849-1), SILCL 3 (EN/IEC 62061)
  • Safety Reliability: DC > 99%, MTTFd = 50 years, PFHd = 1.3E-8 1/h
  • Supply Voltage: 24 V DC (-20...+20%)
  • Power Consumption: <= 2.5 W
  • Current Consumption: 8 mA at 24 V DC
  • Output Type: Relay 2 NO (volt-free)
  • Additional Circuits: 2 solid-state outputs
  • Output Thermal Current: 4.2 A per relay
  • Total Thermal Current: <= 8.4 A
  • Breaking Capacity AC-15: C300: 1800 VA inrush, 180 VA holding
  • Breaking Capacity DC-13: 1.5 A at 24 V (L/R = 50 ms)
  • Associated Fuse Rating: 4 A gG or 6 A fast blow
  • Minimum Output Current: 10 mA
  • Minimum Output Voltage: 17 V
  • Response Time: <= 20 ms (input open)
  • Control Circuit Voltage: 24 V DC
  • Maximum Line Resistance: 100 Ohm
  • Terminal Type: Captive screw clamp, removable terminal block
  • Rated Insulation Voltage: 300 V (pollution degree 2)
  • Rated Impulse Withstand Voltage: 4 kV (overvoltage category III)
  • Local Signalling: 3 LEDs
  • Reset Method: Manual
  • Mounting: 35 mm symmetrical DIN rail
  • Net Weight: 0.25 kg
  • Operating Temperature: -10...55°C
  • Storage Temperature: -25...85°C
  • IP Rating: IP20 (terminals), IP40 (enclosure)
  • Country of Origin: Indonesia
  • Green Premium: Yes
  • Mercury Free: Yes
  • PVC Free: Yes
  • Warranty: 18 months
  • Certifications: UL, CSA, TUV
  • Standards: EN/IEC 60947-5-1, EN/IEC 60204-1, EN 61326 + A1

Monitors enabling switches for operator safety in industrial machinery, providing certified safety relay outputs and PLC diagnostic signals for applications requiring dynamic enabling switch monitoring such as press operations and robotic teaching.
