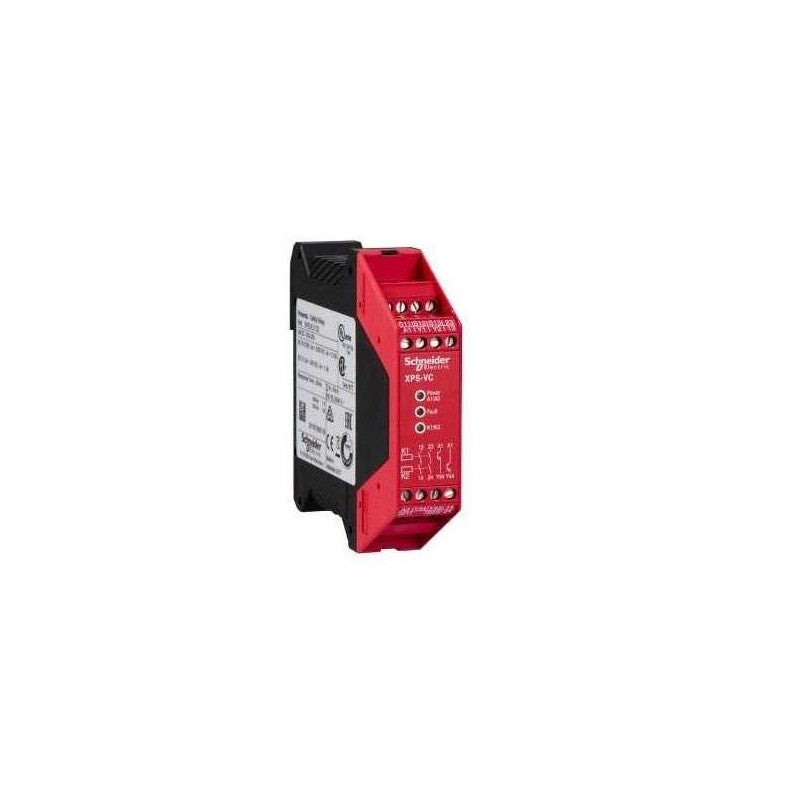

Schneider Electric XPSVC1132 | Safety Device

XPSVC1132 Schneider Electric - Preventa Safety Relay Module. Safety relay module from the Preventa XPS VC series, designed for safety switch and interlock monitoring. Provides reliable safety monitoring for hydraulic valves on linear presses and enabling switch monitoring in industrial environments.

• Brand: Schneider Electric
• Category: Safety Relay
• Series: Preventa XPS VC
• Supply Voltage: 24 V DC (±20%)
• Output Type: Relay, 2 NO (volt-free) + 2 solid state outputs
• Contact Configuration: DPST-NO
• Contact Current: 1.5 A
• Output Thermal Current: 4.2 A per relay
• Power Consumption: 2.5 W
• Reset Method: Manual
• Terminal Type: Captive screw clamp, removable terminal block
• Mounting: DIN Rail
• Rated Insulation Voltage: 300 V (IEC 60947-5-1)
• Rated Impulse Withstand Voltage: 4 kV
• Safety Category (ISO 13849-1): 4
• Performance Level: e
• SIL (IEC 61508): 3
• MTTFd: 50 years
• IP Rating: IP20 (terminals) / IP40 (enclosure)
• Dimensions (W x D x H): 22.5 x 114 x 99 mm
• Local Signalling: 3 LEDs

Ideal for safety switch and interlock monitoring, dynamic monitoring of hydraulic valves on linear presses, enabling switch monitoring, and machine safety systems requiring SIL 3 / PL e / Category 4 compliance.
