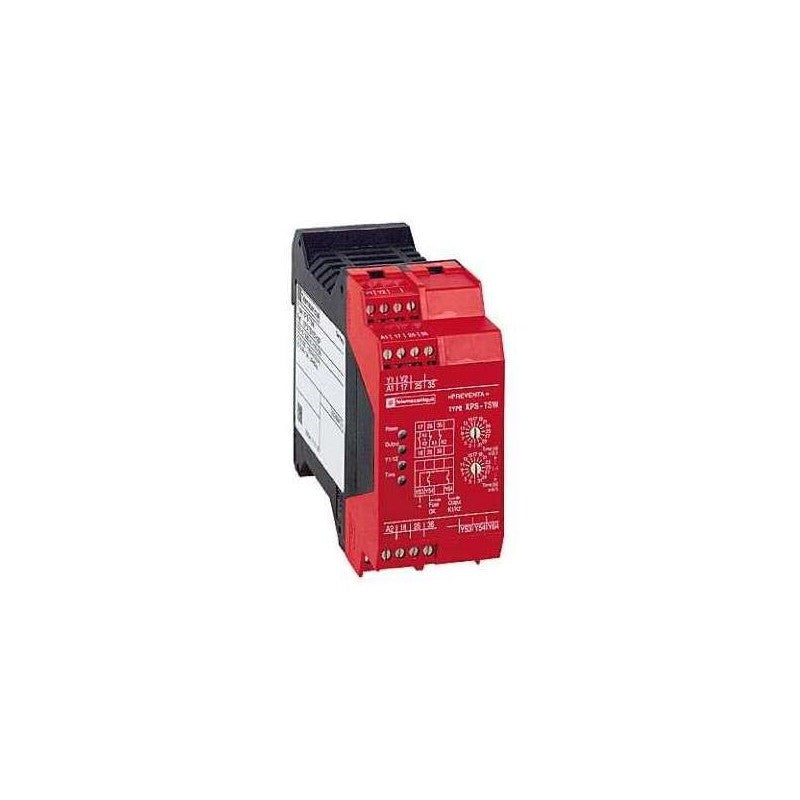

XPSTSW5142P Schneider Electric - Preventa XPS TSW Safety Time Delay Module. The Schneider Electric Preventa XPS TSW is a safety time delay module designed for switching contactor monitoring applications. It provides configurable time delay functionality for safe machine shutdown sequences.
-
Brand: Schneider Electric
-
Category: Safety Modules
-
Brand: Schneider Electric
-
Product Range: Preventa XPS TSW
-
Supply Voltage: 24V AC/DC
-
Function: Safety time delay module for switching contactor monitoring
-
Outputs: 1 NO + 2 NC relay outputs + 2 solid state outputs
-
Time Delay Range: 1-31 seconds (configurable)
-
Thermal Current: 6A
-
Safety Level: PL d / Category 3 / SIL 2
-
MTTFd: 126 years
-
Indication: 4 LEDs
-
Mounting: DIN rail
-
Dimensions: 45 x 99 x 114 mm
-
Weight: 0.25 kg
-
IP Rating: IP20 (front IP40)
-
Certifications: UL, TUV, CSA
-
Removable Terminals: Yes (P suffix)
Ideal for industrial safety applications requiring time-delayed safety functions, including machine shutdown sequences, switching contactor monitoring, and safety circuit time management in automated manufacturing environments.
