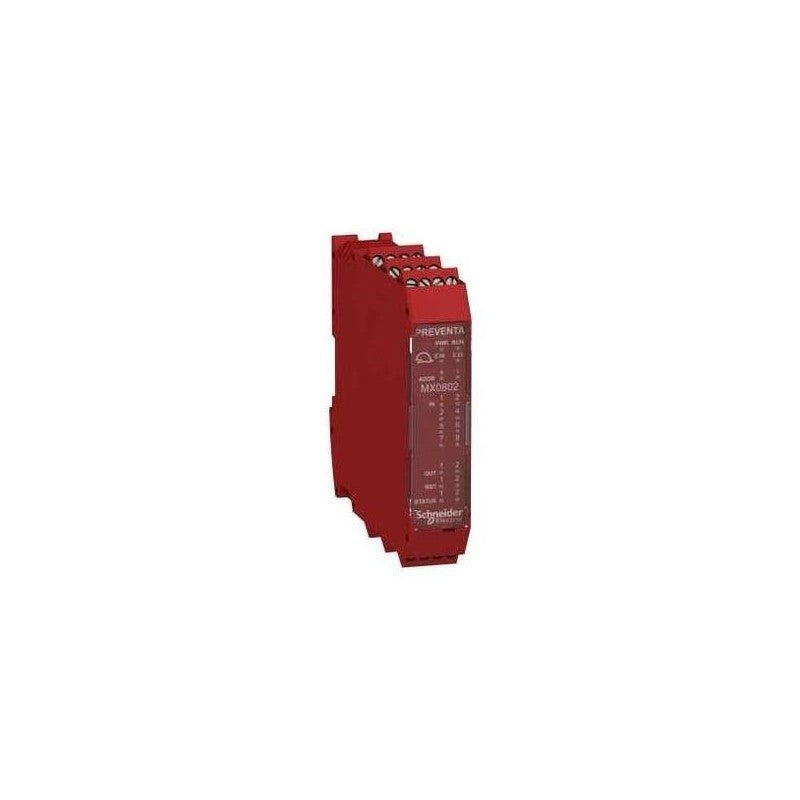

Schneider Electric XPSMCMMX0802 | Safety Device

XPSMCMMX0802 Schneider Electric - Safe Mixed I/O Expansion Module. Preventa XPSMCM safe mixed I/O expansion module with 8 digital inputs and 2 safety output pairs, designed for modular safety controller systems.

• Brand: Schneider Electric
• Category: Safety I/O Expansion Module
• Series: Preventa XPSMCM (Modicon MCM)
• Product Type: Safe Mixed I/O Expansion Module
• Safety Inputs: 8 digital (isolated, 24V DC)
• EDM Inputs: 2 digital (external device monitoring)
• Safety Outputs: 2 OSSD (PNP, 24V DC, 400 mA)
• Test Outputs: 4 for line control
• Diagnostic Outputs: 2 configurable
• Supply Voltage: 24 V DC (20% tolerance)
• Power Dissipation: 3 W
• Connection Type: Backplane expansion bus
• Terminal Type: Screw clamp, removable
• Mounting: DIN Rail
• Operating Temperature: -10 to 55 C
• IP Rating: IP20
• Safety Level: SIL 3, SILCL 3, PL e, Category 4
• Certifications: CE, cULus, RCM, TUV

Expands safety controller I/O capacity for monitoring safety detection inputs and driving safety actuators in industrial machine safety systems.
