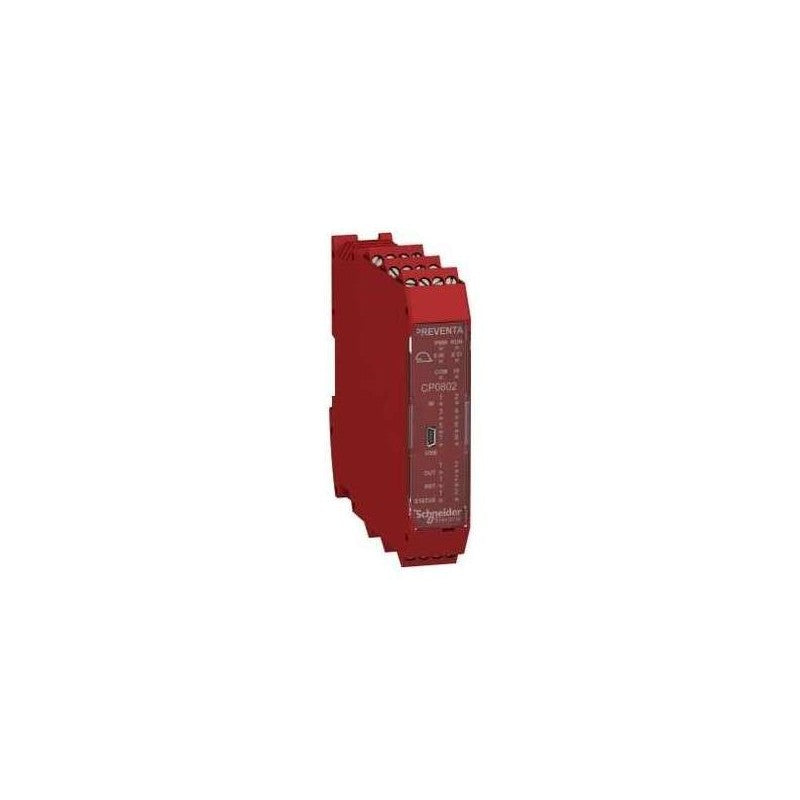

Schneider Electric XPSMCMCP0802 | Safety Device

XPSMCMCP0802 Schneider Electric - Modular Safety Controller. Preventa modular safety controller with 8 safety inputs and 2 safety outputs, certified to SIL 3 / PL e / Category 4 for industrial machine safety applications.

• Brand: Schneider Electric
• Category: Safety Controller
• Series: Preventa XPSMCM (Modicon MCM)
• Safety Inputs: 8 digital (PNP, 24V DC)
• Safety Outputs: 2 OSSD (PNP, 24V DC, 400 mA)
• Test Outputs: 4 for line control
• Configurable Outputs: 2 for diagnostic
• Supply Voltage: 24 V DC
• Safety Level: SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e Cat 4 (ISO 13849-1)
• Communication: Ethernet IP, Modbus TCP, USB 2.0
• Expansion: Up to 128 inputs / 16 outputs
• Power Dissipation: 3 W
• Mounting: DIN Rail (35 mm)
• Dimensions: 22.5 x 99 x 114.5 mm
• IP Rating: IP20
• Certifications: CE, cULus, TUV
• Configuration Software: SoSafe Configurable
• Data Storage: SD card (optional)

Monitors emergency stop, guard monitoring, light curtains, two-hand control, safety mats, enabling switches, speed monitoring, and muting functions.

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
