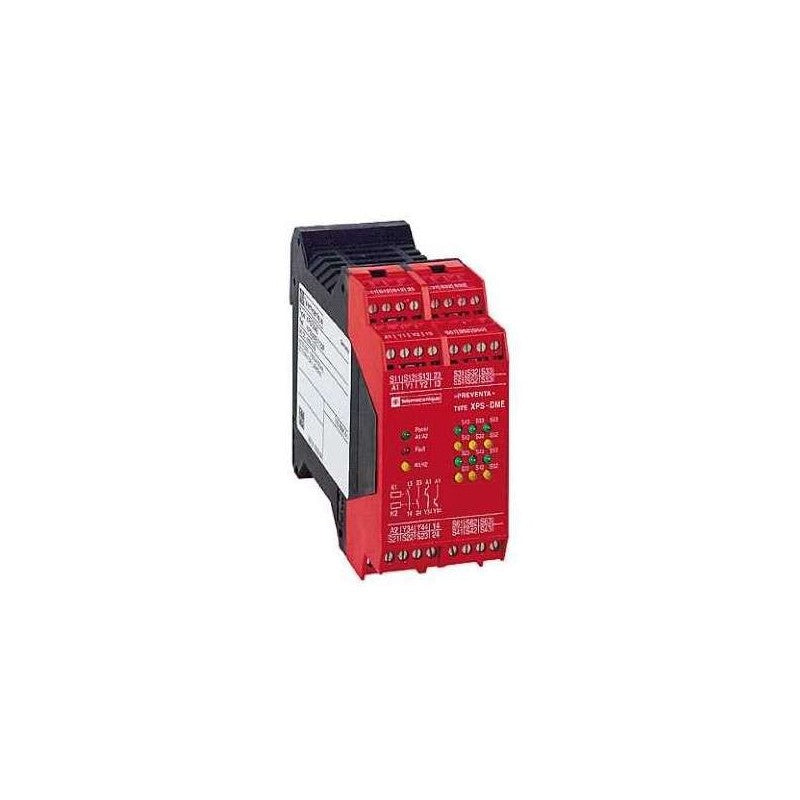

Schneider Electric XPSDMB1132 | Safety Device

XPSDMB1132 Schneider Electric - Preventa XPSDMB Safety Module, 2 Coded Magnetic Switch Monitoring, 24V DC, 2 NO + 2 Solid-State. Preventa safety module from the XPSDMB series for monitoring 2 coded magnetic safety switches. Features 2 NO relay safety outputs and 2 solid-state outputs for PLC signalling. Achieves PL e/Category 4 safety level with 20ms maximum response time. Equipped with 3 diagnostic LEDs and captive screw clamp terminals.

• Brand: Schneider Electric
• Category: Safety Module
• Product Type: Preventa Safety Module
• Range of Product: Preventa Safety automation
• Safety Module Name: XPSDMB
• Application: Monitoring 2 coded magnetic switches
• Safety Level: PL e / Category 4 (EN/ISO 13849-1), SILCL 3 (EN/IEC 62061)
• Safety Reliability: DC > 99%, MTTFd = 83.1 years, PFHd = 3.92E-9 1/h
• Supply Voltage: 24 V DC (-20...+20%)
• Power Consumption: <= 2.5 W
• Current Consumption: 8 mA at 28 V DC
• Output Type: Relay 2 NO (volt-free)
• Additional Circuits: 2 solid-state outputs
• Output Thermal Current: 6 A per relay
• Total Thermal Current: <= 12 A
• Breaking Capacity AC-15: C300: 1800 VA inrush, 180 VA holding
• Breaking Capacity DC-13: 1.5 A at 24 V (L/R = 50 ms)
• Associated Fuse Rating: 4 A gG or 6 A fast blow
• Minimum Output Current: 10 mA
• Minimum Output Voltage: 17 V
• Response Time: <= 20 ms (input open)
• Synchronization Time: < 0.5 s
• Control Circuit Voltage: 28 V DC
• Maximum Line Resistance: 100 Ohm
• Terminal Type: Captive screw clamp terminals
• Rated Insulation Voltage: 300 V (pollution degree 2)
• Rated Impulse Withstand Voltage: 4 kV (overvoltage category III)
• Local Signalling: 3 LEDs
• Mounting: 35 mm symmetrical DIN rail
• Net Weight: 0.25 kg
• Operating Temperature: -10...55°C
• Storage Temperature: -25...85°C
• IP Rating: IP20 (terminals), IP40 (enclosure)
• Certifications: UL, CSA, TUV, BIA
• Standards: EN 1088/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-3

Monitors coded magnetic safety switches for guard monitoring in industrial machinery, providing certified safety outputs and PLC diagnostic signals for machine guarding applications in manufacturing, packaging, and material handling environments.
