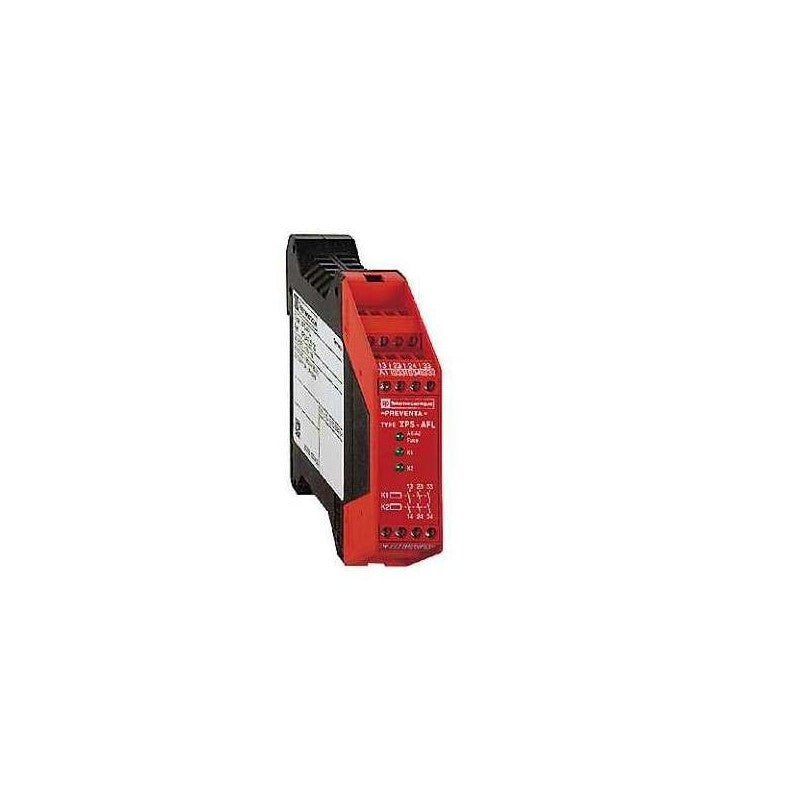

XPSAFL5130 Schneider Electric - Preventa XPSAF Safety Module, Emergency Stop, Light Curtain, 24V AC/DC, 3 NO. Preventa safety module from the XPSAF series for monitoring emergency stop circuits, safety switches, and type 4 light curtains. Features 3 normally open safety output contacts with instant relay opening. Supports single and dual-channel wiring with unmonitored start type. Equipped with 3 diagnostic LEDs on the front panel.

  • Brand: Schneider Electric
  • Category: Safety Module
  • Product Type: Preventa Safety Module
  • Range of Product: Preventa Safety automation
  • Safety Module Name: XPSAF
  • Application: Emergency stop, switch, and safety light curtain monitoring
  • Functions: Monitoring of ESPE, movable guard, emergency stop 1/2-channel wiring
  • Safety Level: PL e / Category 4 (EN/ISO 13849-1), SILCL 3 (EN/IEC 62061)
  • Safety Reliability: DC > 99%, MTTFd = 172.1 years, PFHd = 5.61E-9 1/h
  • Supply Voltage: 24 V AC/DC (-15...+10%)
  • Supply Frequency: 50/60 Hz
  • Power Consumption: 5 VA AC
  • Output Type: Relay instantaneous opening, 3 NO (volt-free)
  • Output Thermal Current: 6 A per relay, 18 A total
  • Breaking Capacity AC-15: C300: 1800 VA inrush, 180 VA holding
  • Breaking Capacity DC-13: 1.5 A at 24 V (L/R = 50 ms)
  • Minimum Output Current: 10 mA
  • Minimum Output Voltage: 17 V
  • Maximum Response Time: 40 ms (input open)
  • Type of Start: Unmonitored
  • Synchronization Time: Unlimited
  • Terminal Type: Captive screw clamp terminals
  • Local Signalling: 3 LEDs
  • Mounting: 35 mm DIN rail
  • Width: 22.5 mm
  • Depth: 114 mm
  • Length: 99 mm
  • Net Weight: 0.25 kg
  • Operating Temperature: -10°C to 55°C
  • Storage Temperature: -25°C to 85°C
  • IP Rating: IP20 (terminals), IP40 (enclosure)
  • Country of Origin: Indonesia
  • Certifications: UL, CSA, TUV, BG
  • Standards: EN/ISO 13850, EN/IEC 60947-5-1, EN/IEC 61496-1 (type 4), EN 1088/ISO 14119, EN 60204-1

Monitors emergency stop circuits, safety switches, and type 4 light curtains in industrial machinery safety systems, providing reliable safety output contacts for machine guarding and operator protection applications.
