Schneider Electric 5130P | Safety Device
Schneider Electric 5130P | Safety Device

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Schneider Electric

Schneider Electric XPSAF5130P | Safety Device

SKU: XPSAF5130P
(5)
$140.00
-13% $161.00 $140.00
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

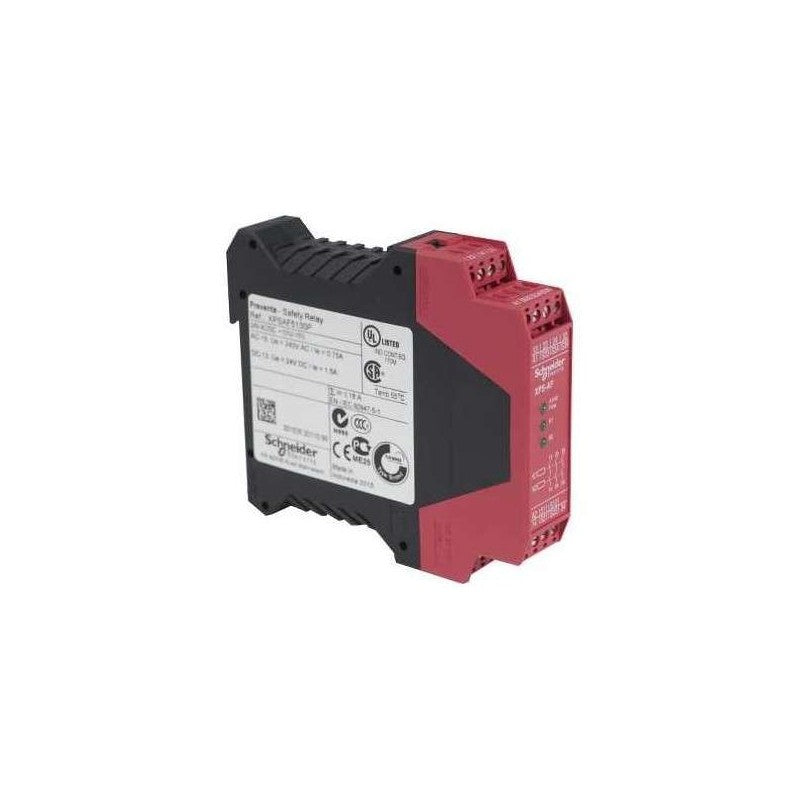

XPSAF5130P Schneider Electric - Preventa XPSAF Safety Module, Emergency Stop, 24V AC/DC, 3 NO, Removable Terminals. Preventa safety module from the XPSAF series for emergency stop and switch monitoring with removable terminal blocks for optimized maintenance. Features 3 normally open safety output contacts with configurable start type. Equipped with 3 diagnostic LEDs and captive screw clamp terminals with removable terminal block design.

  • Brand: Schneider Electric
  • Category: Safety Module
  • Product Type: Preventa Safety Module
  • Range of Product: Preventa Safety automation
  • Safety Module Name: XPSAF
  • Application: Emergency stop and switch monitoring
  • Functions: Movable guard monitoring, emergency stop 1/2-channel wiring
  • Safety Level: PL e / Category 4 (EN/ISO 13849-1), SILCL 3 (EN/IEC 62061)
  • Safety Reliability: DC > 99%, MTTFd = 243 years, PFHd = 4.62E-9 1/h
  • Supply Voltage: 24 V AC/DC (-15...+10%)
  • Supply Frequency: 50/60 Hz
  • Power Consumption: <= 5 VA AC
  • Current Consumption: 30 mA at 24 V AC
  • Output Type: Relay instantaneous opening, 3 NO (volt-free)
  • Number of Additional Circuits: 0
  • Output Thermal Current: 6 A per relay, 18 A total
  • Breaking Capacity AC-15: C300: 1800 VA inrush, 180 VA holding
  • Breaking Capacity DC-13: 1.5 A at 24 V (L/R = 50 ms)
  • Associated Fuse Rating: 4 A gG/gL or 6 A fast blow
  • Minimum Output Current: 10 mA
  • Minimum Output Voltage: 17 V
  • Maximum Response Time: 40 ms (input open)
  • Type of Start: Configurable
  • Synchronization Time: Unlimited
  • Maximum Line Resistance: 90 Ohm
  • Terminal Type: Captive screw clamp, removable terminal block
  • Rated Insulation Voltage: 300 V (pollution degree 2)
  • Rated Impulse Withstand Voltage: 4 kV (overvoltage category III)
  • Local Signalling: 3 LEDs
  • Mounting: 35 mm symmetrical DIN rail
  • Net Weight: 0.25 kg
  • Operating Temperature: -25°C to 60°C
  • Storage Temperature: -40°C to 85°C
  • IP Rating: IP20 (terminals), IP40 (enclosure)
  • Country of Origin: Indonesia
  • Green Premium: Yes
  • Mercury Free: Yes
  • Warranty: 18 months
  • Certifications: UL, CSA, TUV
  • Standards: EN 60204-1, EN 1088/ISO 14119, EN/IEC 60947-5-1, EN/ISO 13850

Monitors emergency stop circuits and safety switches in industrial machinery, providing reliable safety relay outputs with removable terminal blocks for easy maintenance in manufacturing, packaging, and material handling safety systems.
