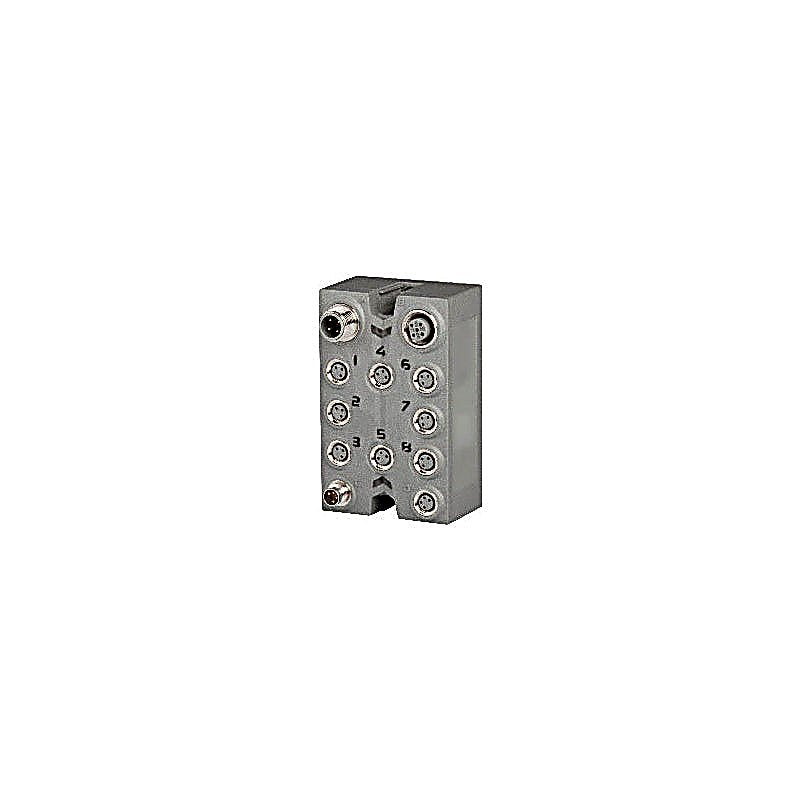

B&R X67DI1371 | Industrial Automation Component

Category: I/O systems > X67 System > Digital input modules

For all standard sensors with M8 connectors Extremely short cycle times Integrated sensor supply with short circuit protection The module is a digital input module for 24 VDC .

It is equipped with 8 inputs for a sink input circuit.

Technical Specifications

Short description

• I/O module = 8 digital inputs 24 VDC

General information

• Diagnostics
• I/O power supply = Yes, using LED status indicator
• Connection type
• X2X Link = M12, B-coded
• Inputs = 8x M8, 3-pin
• I/O power supply = M8, 4-pin
• Power consumption
• Internal I/O = 1 W
• X2X Link power supply = 0.75 W
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• ATEX = Zone 2, II 3G Ex nA IIA T5 Gc IP67, Ta = 0 - Max. 60°C TÜV 05 ATEX 7201X
• UL = cULus E115267 Industrial control equipment
• HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
• KC = Yes
• B&R ID code = 0x1434
• Status indicators = I/O function per channel, supply voltage, bus function

I/O power supply

• Power consumption
• Sensor power supply = Max. 12 W
• Nominal voltage = 24 VDC
• Voltage range = 18 to 30 VDC
• Integrated protective function = Reverse polarity protection

Digital inputs

• Input filter
• Hardware = ≤100 μs
• Software = 1 ms
• Switching threshold
• Low = <5 VDC
• High = >15 VDC
• Nominal voltage = 24 VDC
• Input characteristics per EN 61131-2 = Type 1
• Input voltage = 18 to 30 VDC
• Input current at 24 VDC = Typ. 7 mA
• Input circuit = Sink
• Input resistance = Typ. 3 kΩ
• Sensor power supply = 0.5 A summation current
• Insulation voltage between channel and bus = 500 V eff

Sensor power supply

• Voltage = I/O power supply minus voltage drop for short-circuit protection
• Voltage drop for short-circuit protection at 500 mA = Max. 2 VDC
• Summation current = Max. 0.5 A
• Short-circuit proof = Yes

Electrical properties

• Electrical isolation = Channel isolated from bus Channel not isolated from channel

Operating conditions

• Mounting orientation
• Any = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP67

Ambient conditions

• Temperature
• Operation = -25 to 60°C
• Derating = -
• Storage = -40 to 85°C
• Transport = -40 to 85°C

Mechanical properties

• Dimensions
• Width = 53 mm
• Height = 85 mm
• Depth = 42 mm
• Torque for connections
• M8 = Max. 0.4 Nm
• M12 = Max. 0.6 Nm
• Weight = 170 g
