B&R X67BC8780.L12 | Industrial Automation Component

Category: I/O systems > X67 System > Bus controller modules

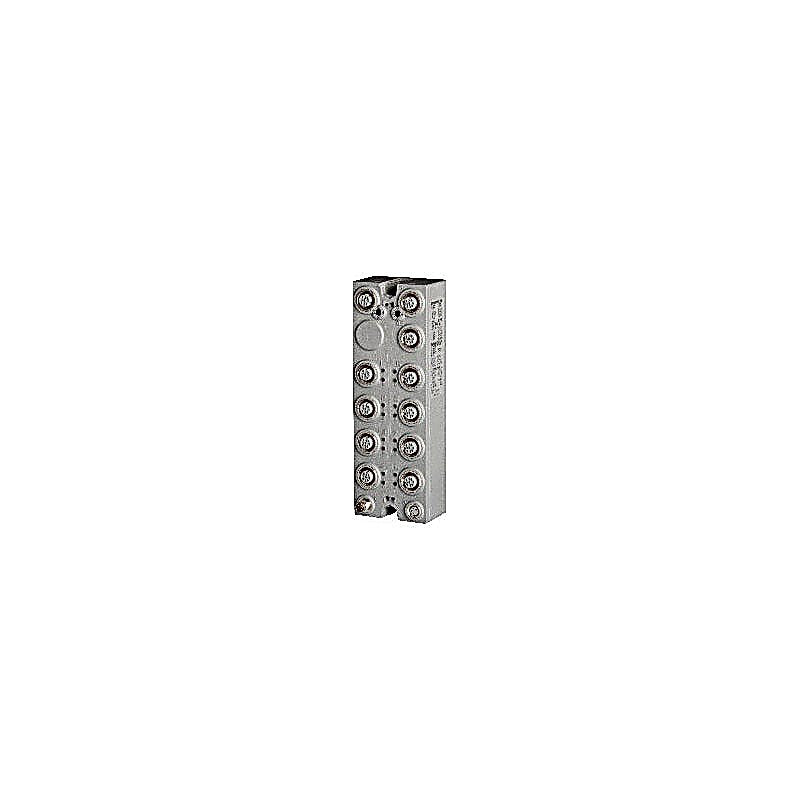

POWERLINK 8 CAN interfaces M12 connections Integrated hub for efficient cabling This bus controller makes it possible to connect 8 CAN interfaces to the POWERLINK network.

The CAN interfaces are operated via an integrated hub, which increases the total cable length defined by classical CAN bus topology.

POWERLINK is a standard protocol for Fast Ethernet equipped with hard real-time characteristics.

The Ethernet POWERLINK Standardization Group (EPSG) ensures openness and continuous development: www.ethernet-powerlink.org .

Technical Specifications

Short description

• Bus controller = POWERLINK (V1/V2) controlled node

General information

• B&R ID code
• Bus controller = 0xED84
• Diagnostics
• Outputs = Yes, using LED status indicator and software
• Power supply = Yes, using LED status indicator and software
• Support
• Dynamic node allocation (DNA) = Yes
• Connection type
• Fieldbus = M12, D-coded
• Inputs/Outputs = 8x M12, A-coded
• I/O power supply = M8, 4-pin
• Power consumption
• Internal I/O = 2.5 W
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• Inputs/Outputs = 8 CAN interfaces
• Insulation voltage between channel and bus = 500 V eff
• Nominal voltage = 24 VDC
• Status indicators = TX/RX per CAN interface, supply voltage, bus function

Fieldbus

• Transfer
• Physical layer = 100BASE-TX
• Half-duplex = Yes
• Full-duplex = No
• Autonegotiation = Yes
• Auto-MDI/MDIX = Yes
• Type = POWERLINK (V1/V2) controlled node
• Variant = 2x M12 interface (hub), 2x female connector on module
• Line length = Max. 100 m between 2 stations (segment length)
• Transfer rate = 100 Mbit/s
• Hub propagation delay = 0.96 to 1 µs
• Cycle time = 200 µs

Interfaces

• Type = CAN
• Variant = 8x M12 interface (hub)
• Max. distance = 1000 m
• Transfer rate = Bus length ≤25 m: Max. 500 kbps Bus length ≤100 m: Max. 250 kbps Bus length ≤700 m: Max. 50 kbps
• Hub propagation delay = 250 ns
• Terminating resistor = Integrated in module

Sensor/Actuator power supply

• Voltage = 9 to 32 V
• Voltage drop for short-circuit protection at 0.5 A = Max. 2 VDC
• Summation current = Max. 1.6 A (200 mA per channel)
• Short-circuit proof = Yes

Power supply

• Nominal voltage = 24 VDC
• Voltage range = 9 to 32 VDC
• Reverse polarity protection = Yes

Electrical properties

• Electrical isolation = POWERLINK isolated from channel Channel not isolated from channel

Operating conditions

• Mounting orientation
• Any = Yes
• Installation elevation above sea level
• 0 to 2000 m = No limitation
• >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
• Degree of protection per EN 60529 = IP67

Ambient conditions

• Temperature
• Operation = -25 to 60°C
• Derating = -
• Storage = -40 to 85°C
• Transport = -40 to 85°C

Mechanical properties

• Dimensions
• Width = 53 mm
• Height = 155 mm
• Depth = 42 mm
• Torque for connections
• M8 = Max. 0.4 Nm
• M12 = Max. 0.6 Nm
