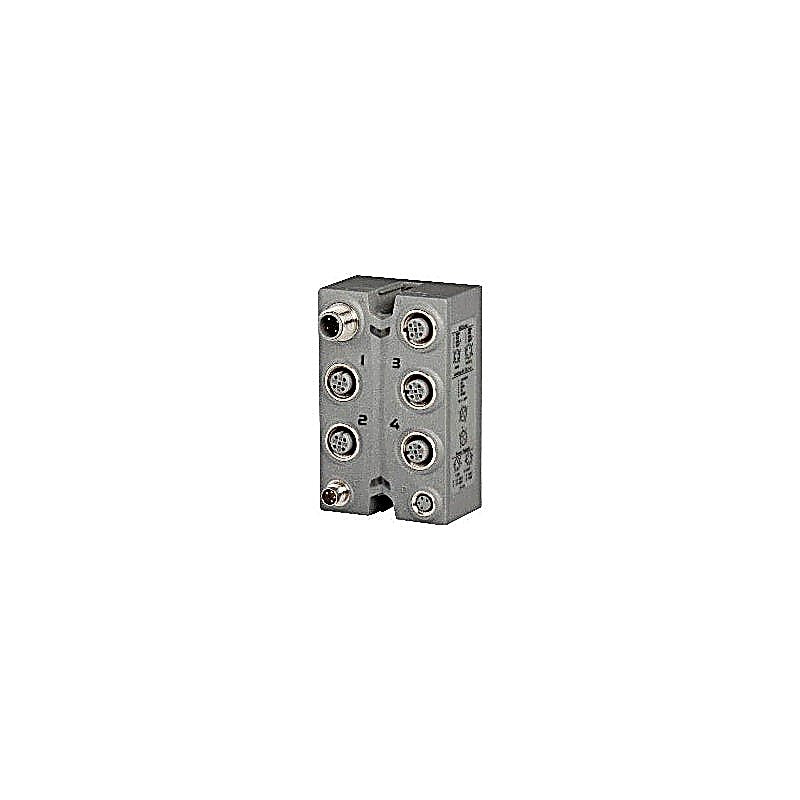

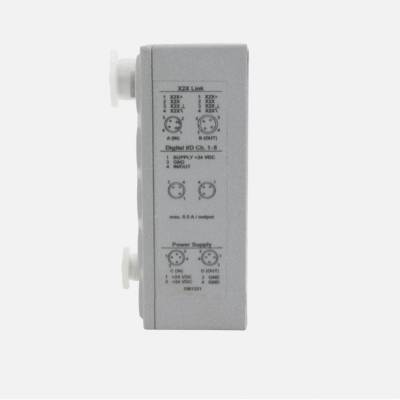

B&R X67AM1223 | Industrial Automation Component

SKU: X67AM1223
Regular price $1,716.62
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning!

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Ask an expert!

Category: I/O systems > X67 System > Analog mixed modules

2 analog inputs, 2 analog outputs, ±10 V each Open circuit detection on the inputs Configurable digital input filters Very short cycle times Optimal shield grounding on all channels The module is equipped with 2 inputs and 2 outputs with 12-bit digital converter resolution.

The range of the input/output signal is ±10 V .

Technical Specifications

Short description

  • I/O module = 2 analog inputs, 2 analog outputs, each ±10 V

General information

  • Diagnostics
  • Inputs = Yes, using LED status indicator and software
  • I/O power supply = Yes, using LED status indicator and software
  • Connection type
  • X2X Link = M12, B-coded
  • Inputs/Outputs = 4x M12, A-coded
  • I/O power supply = M8, 4-pin
  • Power consumption
  • Internal I/O = 3 W
  • X2X Link power supply = 0.75 W
  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = In preparation
  • ATEX = Zone 2, II 3G Ex nA IIA T5 Gc IP67, Ta = 0 - Max. 60°C TÜV 05 ATEX 7201X
  • UL = cULus E115267 Industrial control equipment
  • HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
  • KC = Yes
  • B&R ID code = 0x1465
  • Status indicators = I/O function per channel, supply voltage, bus function

I/O power supply

  • Power consumption
  • Sensor/Actuator power supply = Max. 12 W
  • Nominal voltage = 24 VDC
  • Voltage range = 18 to 30 VDC
  • Integrated protective function = Reverse polarity protection

Sensor/Actuator power supply

  • Voltage = I/O power supply minus voltage drop for short-circuit protection
  • Voltage drop for short-circuit protection at 0.5 A = Max. 2 VDC
  • Summation current = Max. 0.5 A
  • Short-circuit proof = Yes

Analog inputs

  • Output format
  • Voltage = INT 0x8001 - 0x7FFF / 1 LSB = 0x0010 = 4.882 mV
  • Output of digital value during overload
  • Undershoot = 0x8001
  • Overshoot = 0x7FFF
  • Max. error
  • Gain = 0.1%
  • Offset = 0.05%
  • Common-mode rejection
  • DC = >50 dB
  • 50 Hz = >50 dB
  • Input filter
  • Cutoff frequency = 300 Hz
  • Slope = 40 dB
  • Input = ±10 V
  • Input type = Differential input
  • Digital converter resolution = 12-bit
  • Conversion time = 400 µs for both inputs
  • Output format = INT
  • Input impedance in signal range = 20 MΩ
  • Input protection = Protection against wiring with supply voltage
  • Permissible input signal = Max. ±30 V
  • Conversion procedure = Successive approximation
  • Max. gain drift = 0.011%/°C
  • Max. offset drift = 0.009%/°C
  • Common-mode range = ±11 V
  • Crosstalk between channels = <-70 dB
  • Nonlinearity = <0.1%
  • Insulation voltage between channel and bus = 500 V eff

Analog outputs

  • Short-circuit proof
  • Current limiting = ±40 mA
  • To GND = Yes
  • To sensor or I/O power supply = Yes
  • Max. error at 25°C and 10 kΩ load
  • Gain = 0.15%
  • Offset = 0.05%
  • Output = ±10 V
  • Digital converter resolution = 12-bit
  • Conversion time = 400 µs for both outputs
  • Settling time on output change over entire range = Approx. 1 ms
  • Switch on/off behavior = Internal enable relay for startup and errors
  • Output protection = Protection against wiring with supply voltage, short-circuit proof
  • Output format = INT 0x8001 - 0x7FFF / 1 LSB = 0x0010 = 4.882 mV
  • Load per channel = Max. ±10 mA, load ≥ 1 kΩ
  • Output filter = First-order low-pass filter / cutoff frequency 2.5 kHz
  • Max. gain drift = 0.012%/°C
  • Max. offset drift = 0.015%/°C
  • Error caused by load change = Max. 0.01%, from 10 MΩ → 1 kΩ, resistive
  • Nonlinearity = <0.15%
  • Insulation voltage between channel and bus = 500 V eff
  • Output response when the power supply is switched on/off = An enable relay is switched on at a defined value ≠ 0, default setting = 10 kΩ to GND

Electrical properties

  • Electrical isolation = Channel isolated from bus Channel not isolated from channel

Operating conditions

  • Mounting orientation
  • Any = Yes
  • Installation elevation above sea level
  • 0 to 2000 m = No limitation
  • >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
  • Degree of protection per EN 60529 = IP67

Ambient conditions

  • Temperature
  • Operation = -25 to 60°C
  • Derating = -
  • Storage = -40 to 85°C
  • Transport = -40 to 85°C
