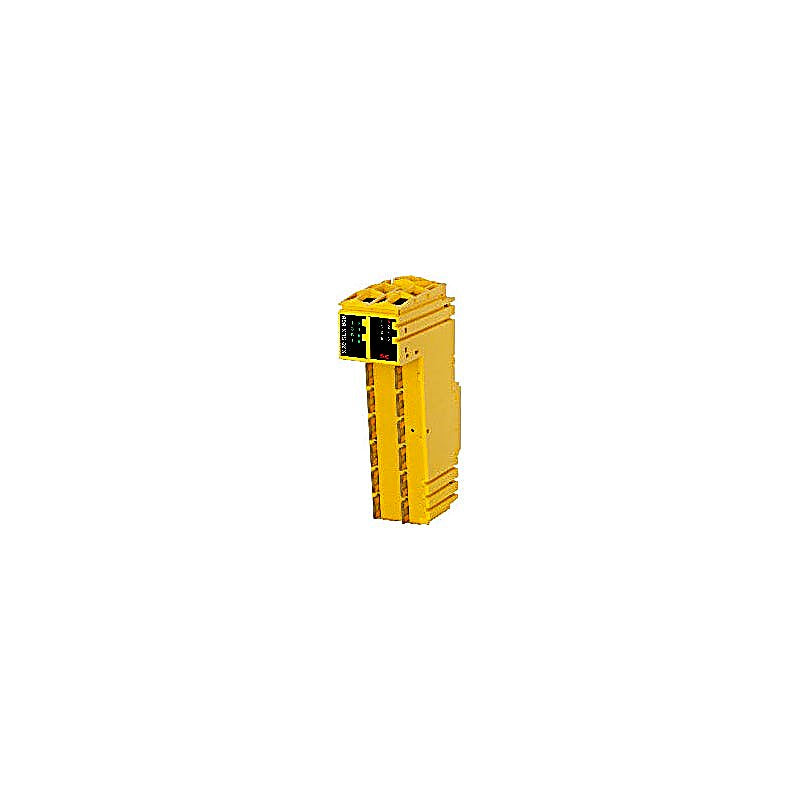

B&R X20SLX806 | Industrial Automation Component

Category: Safety technology > X20 System > Intelligent programmable modules

openSAFETY manager for up to 10 SafeNODEs Flexibly programmable using Automation Studio / SafeDESIGNER Innovative management of safe machine options (SafeOPTION) Parameter and configuration management 8 safe digital inputs, sink circuit 4 pulse outputs Software input filter configurable for each channel 6 safe digital outputs, output type B with 0.2 A, source circuit Integrated output protection The module is equipped with SafeLOGIC functionality that allows it to safely execute applications designed in SafeDESIGNER.

The module can be used in safety-related applications up to PL e or SIL 3.

In addition, the module coordinates the safety-related communication of all modules involved in the application.

In this context, the module also monitors the configuration of these modules and carries out autonomous parameter downloads to the modules whenever necessary.

This guarantees a consistent and correct module configuration in the network from a safety standpoint in all scenarios involving module replacement and service.

These services are performed in conjunction with Automation Runtime on the standard CPU.

In addition, SafeLOGIC-X products have the same I/O properties as the associated SafeIO products (X20SC0xxx).

Technical Specifications

Short description

• I/O module = 8 safe type A digital inputs, 4 pulse outputs, 24 VDC, 6 safe type B2 digital outputs, 24 VDC, 0.2 A, OSSD <10 µs, SafeLOGIC-X technology

General information

• Diagnostics
• Module run/error = Yes, using LED status indicator and software
• Outputs = Yes, using LED status indicator and software
• Inputs = Yes, using LED status indicator and software
• Blackout mode
• Scope = Module
• Function = Programmable
• Standalone mode = Yes
• Power consumption
• Bus = 0.4 W
• Internal I/O = 2.5 W
• Additional power dissipation caused by actuators (resistive) [W]
• Safe digital HS-HS outputs = 1.2
• Pulse outputs = 0.8
• Electrical isolation
• Channel - Bus = Yes
• Channel - Channel = No
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• Functional safety = cULus FSPC E361559 Energy and industrial systems Certified for functional safety ANSI UL 1998:2013
• Functional safety = IEC 61508, up to SIL 3 IEC 62061, up to SIL 3 ISO 13849-1, up to Cat. 4 / PL e IEC 61511, up to SIL 3
• Functional safety = EN 50156-1
• ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
• UL = cULus E115267 Industrial control equipment cULus E537419 Engine generator controller
• B&R ID code = 0xE758
• Status indicators = I/O function per channel, operating state, module status

Safety characteristics

• Note = See section "Safety characteristics".

Limit values for SafeDESIGNER application

• Max. resources available for SafeDESIGNER info window entries
• FB instances = 256
• Marker memory = 5120 bytes (0x1400)
• Stack memory = 4096 bytes
• Memory for safe input data = 128 bytes, 68 bytes of which are usable for modules
• Memory for safe output data = 64 bytes
• Memory for standard input data = 64 bytes
• Memory for standard output data = 64 bytes
• Marker count = 256
• Additional SafeDESIGNER limit values
• Max. number of function block types = 64
• Max. number of force variables = 8
• Max. number of variable with variable status = 128

I/O power supply

• Nominal voltage = 24 VDC
• Voltage range = 24 VDC -15% / +20%
• Integrated protective function = Reverse polarity protection

Safe digital inputs

• Input filter
• Hardware = ≤150 µs
• Software = Configurable between 0 and 500 ms
• Switching threshold
• Low = <5 VDC
• High = >15 VDC
• Quantity = 8
• Variant = Type A
• Nominal voltage = 24 VDC
• Input characteristics per EN 61131-2 = Type 1
• Input circuit = Sink
• Input voltage = 24 VDC -15% / +20%
• Input current at 24 VDC = Min. 2 mA to max. 3.28 mA
• Input resistance = Min. 7.33 kΩ
• Error detection time = 100 ms
• Insulation voltage between channel and bus = 500 V eff
• Line length between signal source (pulse output or external signal) and input = Max. 60 m with unshielded line Max. 400 m with shielded line

Safe digital HS-HS outputs

• Quantity = 6
• Variant = FET, 2x positive switching, type B2, output level readable
• Nominal voltage = 24 VDC
• Nominal output current = 0.2 A
• Total nominal current = 1.2 A
• Output protection = See section "Inrush current behavior for output channels".
• Braking voltage when switching off inductive loads = Max. 45 VDC
• Error detection time = 1 s
• Insulation voltage between channel and bus = 500 V eff
• Peak short-circuit current = See section "Inrush current behavior for output channels".
• Leakage current when the output is switched off = <100 µA
• R DS(on) = 5 Ω
• Switching voltage = I/O power supply minus voltage drop due to R DS(on)
• Max. switching frequency = See section "Inrush current behavior for output channels".
• Test pulse length = Max. 10 µs
• Max. capacitive load = 100 nF
