Category: Safety technology > X20 System > Digital mixed modules

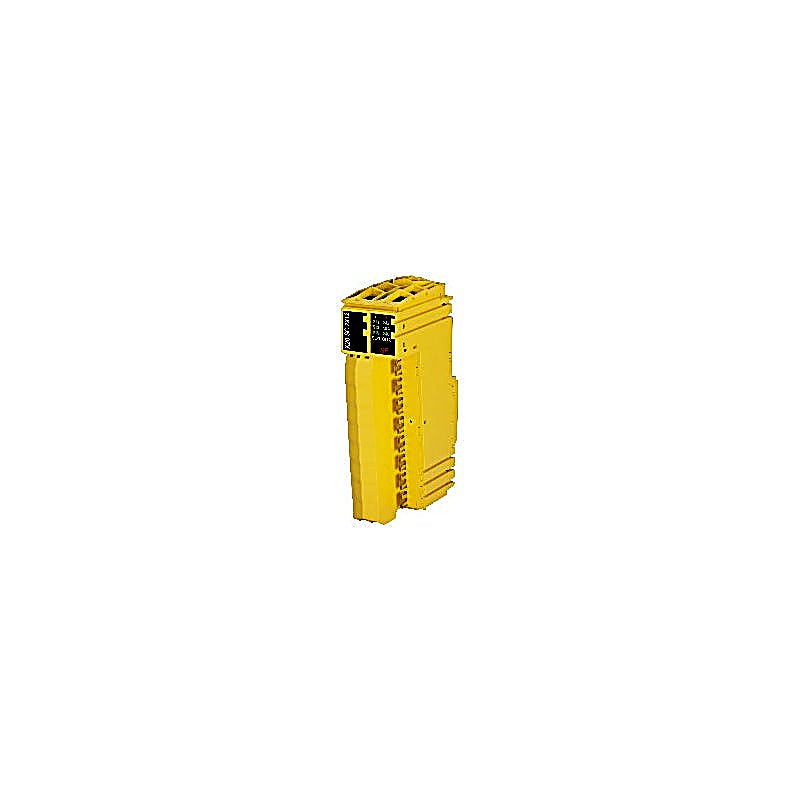

6 safe digital inputs, sink circuit 6 pulse outputs Software input filter configurable for each channel 2 safe digital outputs, output type B with 0.5 A, source circuit Integrated output protection The module is equipped with 6 safe digital inputs and 2 safe digital outputs.
It is designed for a nominal voltage of 24 VDC.
The module can be used to read in digital signals and to control actuators in safety-related applications up to PL e or SIL 3.
The module is equipped with filters that are individually configurable for switch-on and switch-off behavior.
The module also provides pulse signals for diagnosing the sensor line.
The outputs are designed using semiconductor technology so that the safety-related characteristics do not depend on the number of operating cycles.
The "high-side high-side" variant (output type B) is required for actuators with reference potential (e.g.
Enable inputs on frequency inverters). It is important to observe the special notices for the cabling in this case.
Safe digital output channels provide protection against automatic restart when network errors occur.
This module is designed for X20 12-pin terminal blocks.
Technical Specifications
Short description
- I/O module = 6 safe type A digital inputs, 6 pulse outputs, 24 VDC, 2 safe type B1 digital outputs, 24 VDC, 0.5 A, OSSD <500 µs
General information
- Diagnostics
- Module run/error = Yes, using LED status indicator and software
- Outputs = Yes, using LED status indicator and software
- Inputs = Yes, using LED status indicator and software
- Blackout mode
- Scope = Module
- Function = Module functionality
- Standalone mode = No
- Power consumption
- Bus = 0.25 W
- Internal I/O = 1.4 W
- Additional power dissipation caused by actuators (resistive) [W]
- Safe digital outputs = 0.075
- Pulse outputs = 0.264
- Electrical isolation
- Channel - Bus = Yes
- Channel - Channel = No
- Certifications
- CE = Yes
- UKCA = Yes
- CRA (Cyber Resilience Act) = In preparation
- Functional safety = cULus FSPC E361559 Energy and industrial systems Certified for functional safety ANSI UL 1998:2013
- Functional safety = IEC 61508, up to SIL 3 IEC 62061, up to SIL 3 ISO 13849-1, up to Cat. 4 / PL e IEC 61511, up to SIL 3
- Functional safety = EN 50156-1
- ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
- UL = cULus E115267 Industrial control equipment cULus E537419 Engine generator controller
- HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
- DNV = Temperature: A (0 to 45°C) Humidity: B (up to 100%) Vibration: A (0.7 g) EMC: B (bridge and open deck)
- CCS = Yes
- LR = ENV1
- KR = Yes
- ABS = Yes
- BV = EC21B Temperature: 5 - 45°C Vibration: 0.7 g EMC: Bridge and open deck
- KC = Yes
- B&R ID code = 0xBDA5
- Status indicators = I/O function per channel, operating state, module status
Safety characteristics
- Note = See section "Safety characteristics".
I/O power supply
- Nominal voltage = 24 VDC
- Voltage range = 24 VDC -15% / +20%
- Integrated protective function = Reverse polarity protection
Safe digital inputs
- Input filter
- Hardware = ≤150 μs
- Software = Configurable between 0 and 500 ms
- Switching threshold
- Low = <5 VDC
- High = >15 VDC
- Quantity = 6
- Variant = Type A
- Nominal voltage = 24 VDC
- Input characteristics per EN 61131-2 = Type 1
- Input circuit = Sink
- Input voltage = 24 VDC -15% / +20%
- Input current at 24 VDC = Min. 2 mA to max. 3.28 mA
- Input resistance = Min. 7.33 kΩ
- Error detection time = 100 ms
- Insulation voltage between channel and bus = 500 V eff
- Line length between signal source (pulse output or external signal) and input = Max. 60 m with unshielded line Max. 400 m with shielded line
Safe digital outputs
- Quantity = 2
- Variant = FET, 2x positive switching, type B1, output level readable
- Nominal voltage = 24 VDC
- Nominal output current = 0.5 A
- Total nominal current = 1 A
- Output protection = See section "Inrush current behavior for output channels".
- Braking voltage when switching off inductive loads = Max. 45 VDC
- Error detection time = 1 s
- Insulation voltage between channel and bus = 500 V eff
- Peak short-circuit current = See section "Inrush current behavior for output channels".
- Leakage current when the output is switched off = <500 µA
- R DS(on) = 150 mΩ
- Switching voltage = I/O power supply minus voltage drop due to R DS(on)
- Max. switching frequency = See section "Inrush current behavior for output channels".
- Test pulse length = Max. 500 µs
- Max. capacitive load = 100 nF
Current on loss of ground
- I OUT = <1 mA
- I GND = <180 mA
Pulse outputs
- Quantity = 6
- Variant = Push-Pull
- Nominal output current = 20 mA
- Output protection = Shutdown of individual channels in the event of overload or short circuit
- Peak short-circuit current = 25 A for 15 µs
- Short-circuit current = 100 mA eff
- Leakage current when the output is switched off = 0.1 mA
- R DS(on) = 110 Ω
- Switching voltage = I/O power supply minus voltage drop due to R DS(on)
- Total nominal current = 120 mA
